Caution - A DSIMM is made of delicate electronic components that are extremely
sensitive to static electricity. Ordinary amounts of static from your clothes or work
environment can destroy a DSIMM. Handle a DSIMM only by the edges. Do not
touch the components on the DSIMM or any metal parts. Wear a grounding strap
before unpacking and during handling of a DSIMM. Do not disconnect the power cord
from the system unit’s power receptacle. The power cord should be left plugged in to a
grounded power outlet. This connection provides the ground path necessary so that
you can safely remove and install DSIMMs and other components. Be sure that the
system unit power is turned off by observing that the green light-emitting diode
(LED) at the front of the chassis is not lit.
1. Remove the system unit cover.
Refer to “Removing the System Unit Cover” on page 32 in Chapter 4.
2. Attach the wrist strap.
Refer to “Attaching the Wrist Strap” on page 34 in Chapter 4.
3. Locate the DSIMM slots on the main logic board (MLB). See Figure 8–1.
Note the slot location of the DSIMM to be removed.

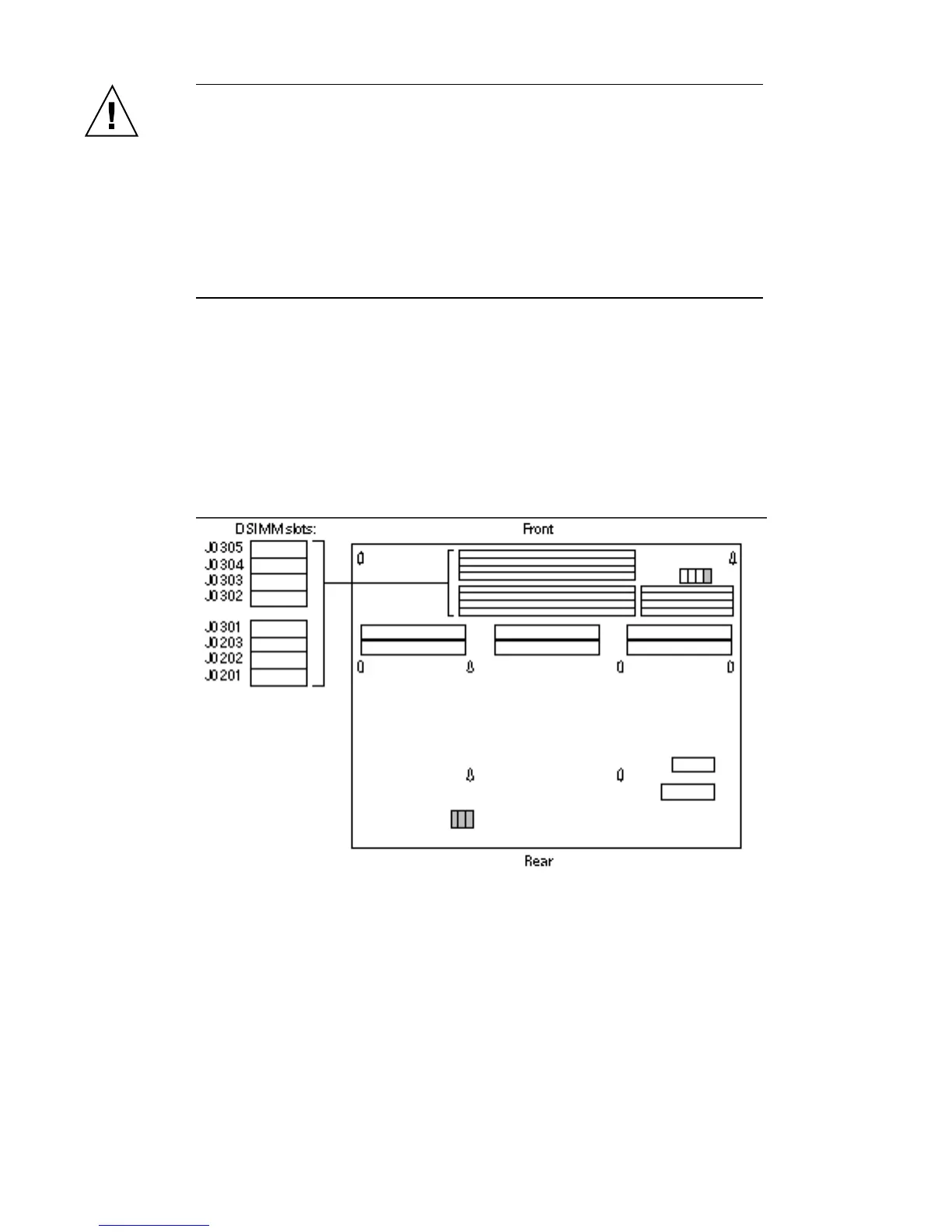

Figure 8–1 Location of DSIMMs on the MLB
