Sun Microsystems SPARCstation 10 - Twisted Pair Ethernet

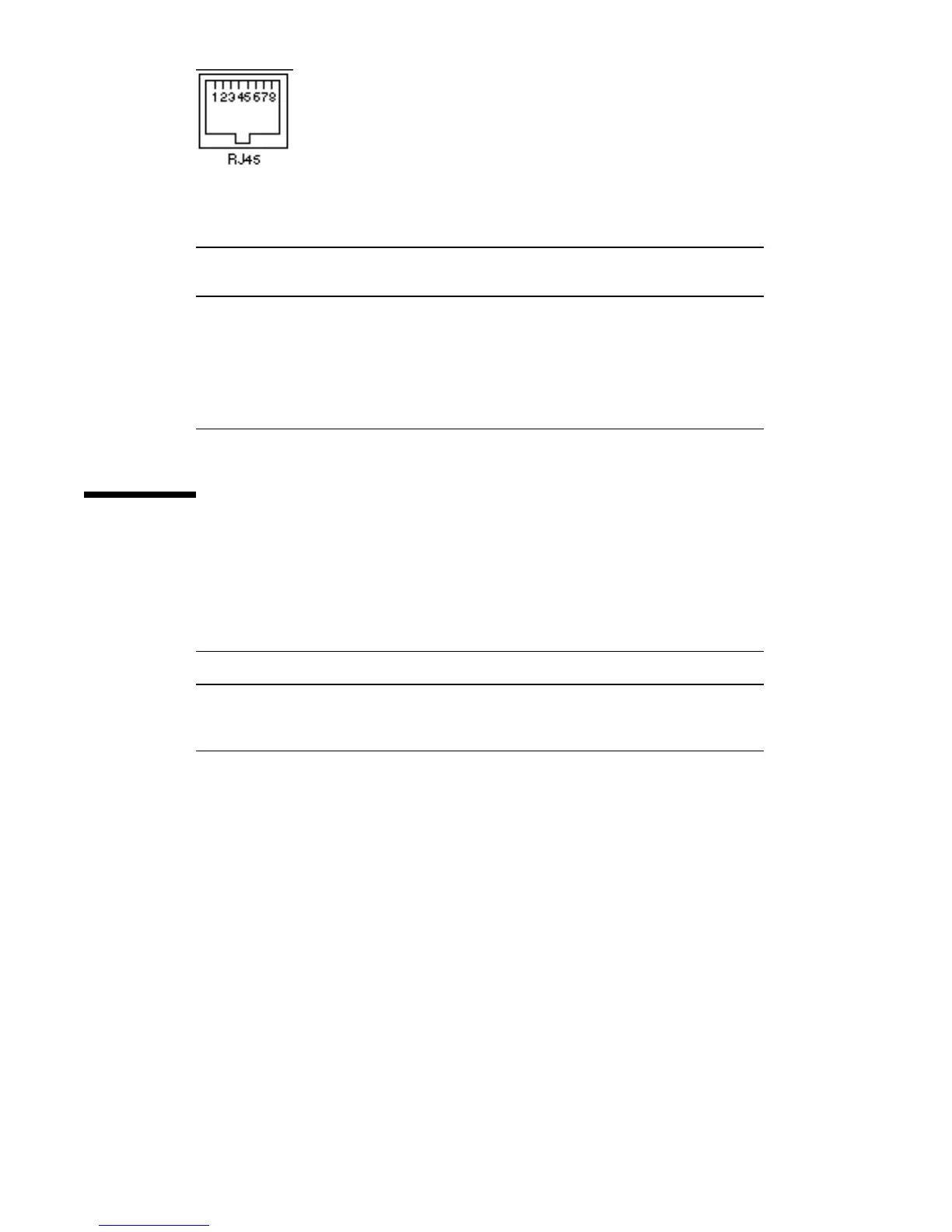

Figure D–4 Twisted Pair Ethernet
TABLE D–7 Twisted Pair Ethernet Connector
PinFunction
I/
OLevel PinFunction
I/
OLevel
1TPO+ OAnalog 5N.C.
2TPO- OAnalog 6TPI- IAnalog
3TPI+ IAnalog 7N.C.
4N.C. 8N.C.
Twisted Pair Ethernet
Twisted Pair Ethernet-Signal Description
TABLE D–8 Twisted Pair Ethernet Signal Description
Signal Descriptions
TPO+/- Differential Twisted Pair Transmit Data
TPI+/- Differential Twisted Pair Receive Data
194 SPARCstation 10 Service Manual ♦ Revision A, July 1993
