Sun Microsystems SPARCstation 10 - Installing the LED

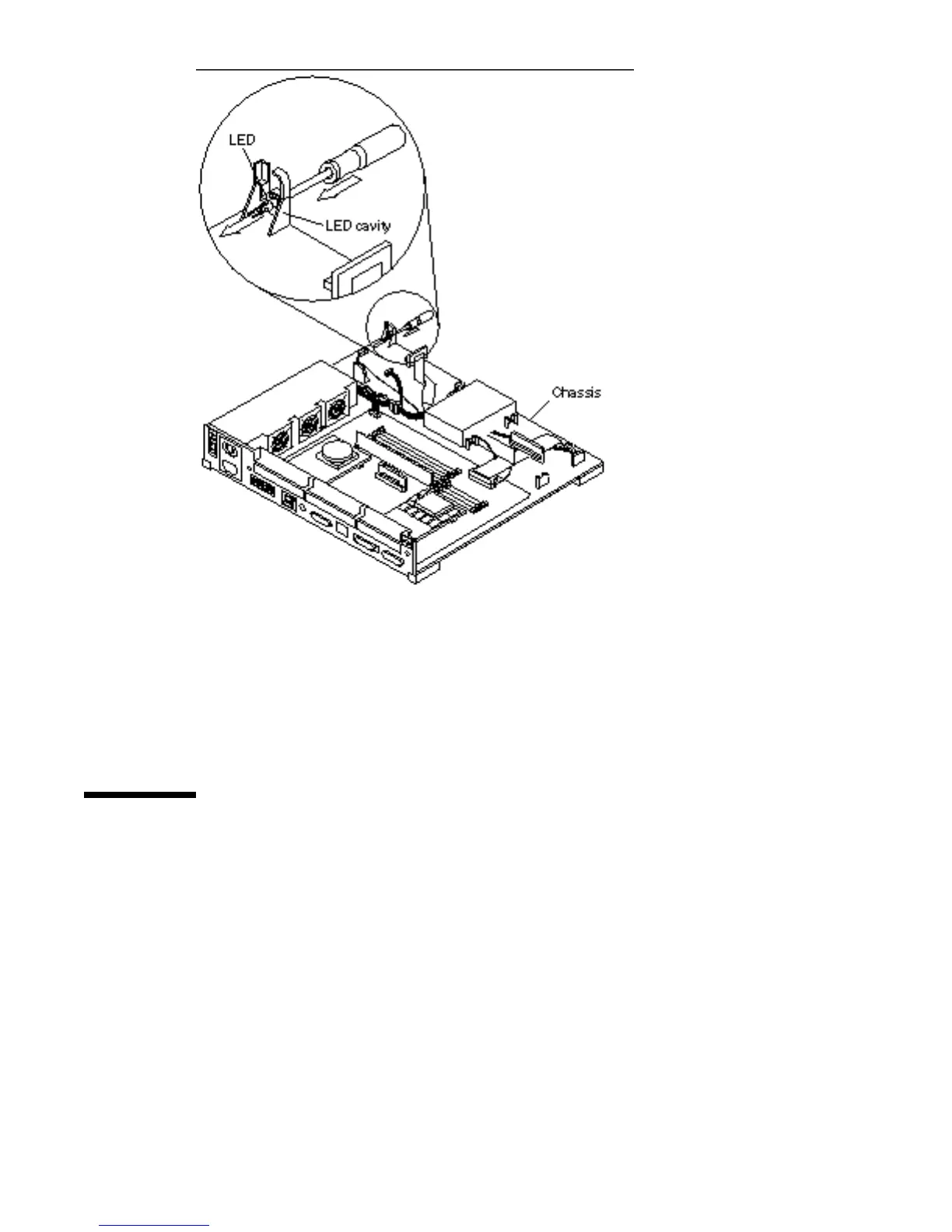

Figure 16–3 Removing the LED from the Chassis
7. Slide the LED out of the chassis.
Installing the LED
To install the LED:
1. Insert the longer LED pin into the LED connector with the red wire.
164
SPARCstation 10 Service Manual ♦ Revision A, July 1993
