c. Disconnect the internal disk connector from the diskette drive.
See Figure 16–1.
d. Lift the diskette drive out of the chassis and place it on an antistatic surface.
5. Disconnect the LED connector from the LED.
See Figure 16–2.

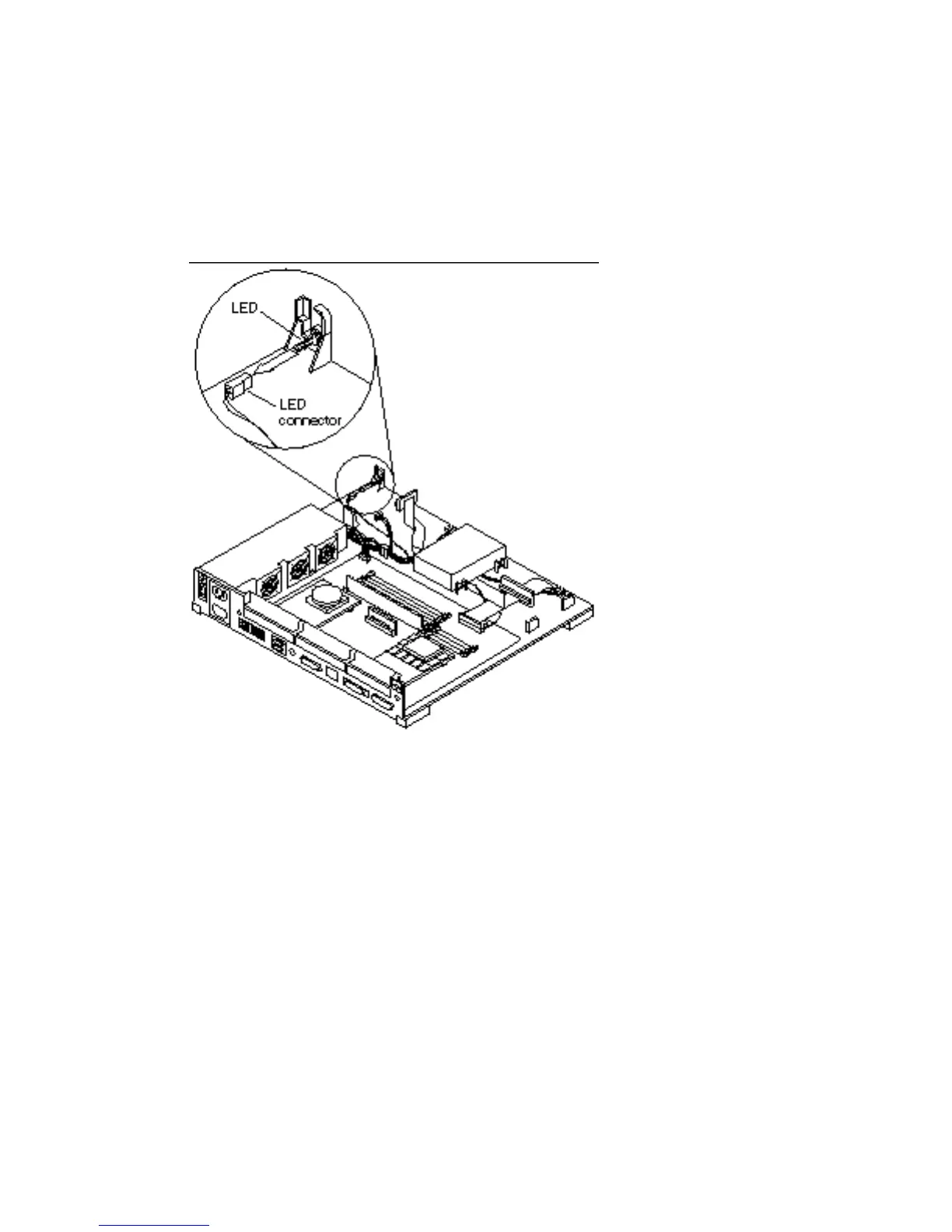

Figure 16–2 Disconnecting the LED from the LED Connector
6. Push the LED in by using the tip of a Phillips screwdriver.
See Figure 16–3.
Light-Emitting Diode 163
