Sun Microsystems SPARCstation 10 - Removing the MLB

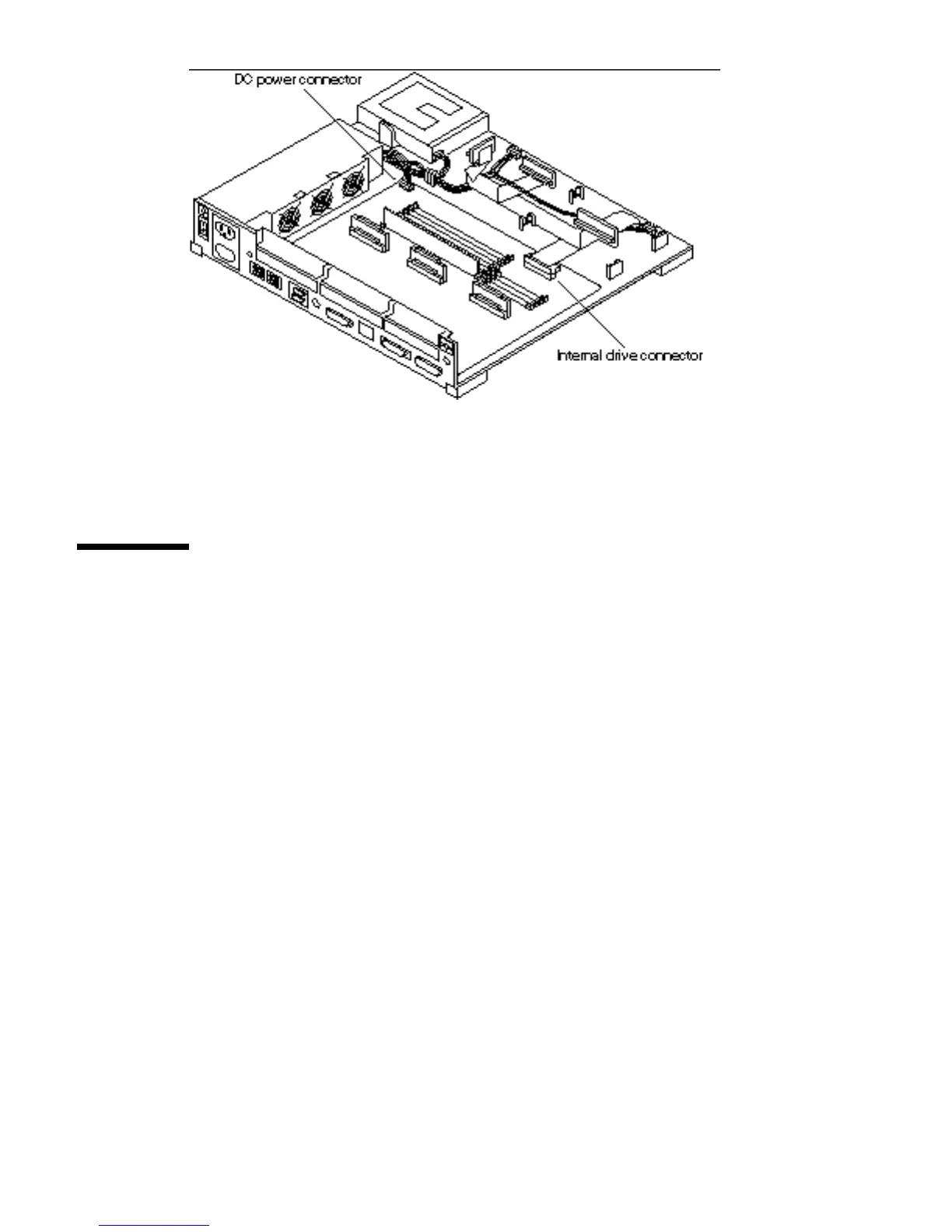

Figure 5–9 DC Power Harness and Internal Disk Cable Layout
Removing the MLB
All SBus cards and MBus modules should be removed at this point. The internal disk
connector (J0101) and DC power connector (P1) should be disconnected.
1. Remove the MLB.
a. Remove the lock block. Loosen the screw located at the center of the lock
block. Save the lock block and screw for use later.
See Figure 5–10.
Main Logic Board 47
