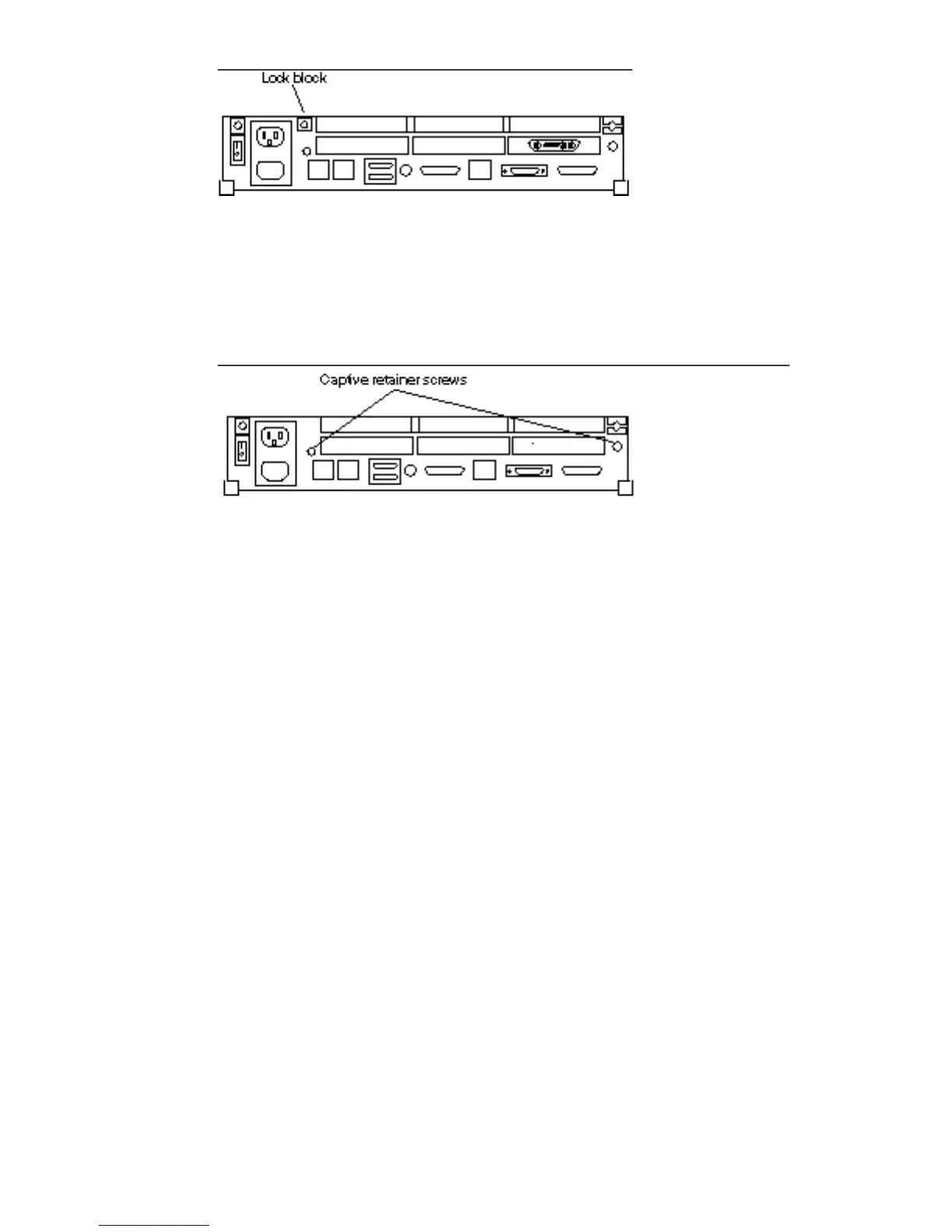

Figure 5–10 Lock Block Location
b. Loosen the two captive retainer screws securing the MLB to the rear of the
chassis.
Figure 5–11.
Figure 5–11 MLB Retainer Screws at the Rear of the Chassis
c. Slide the board toward the front of the chassis.
See Figure 5–12.
48
SPARCstation 10 Service Manual ♦ Revision A, July 1993
