Sun Microsystems SPARCstation 10 - Page 181

2. Connect the LED to the LED connector.
See Figure 16–4.

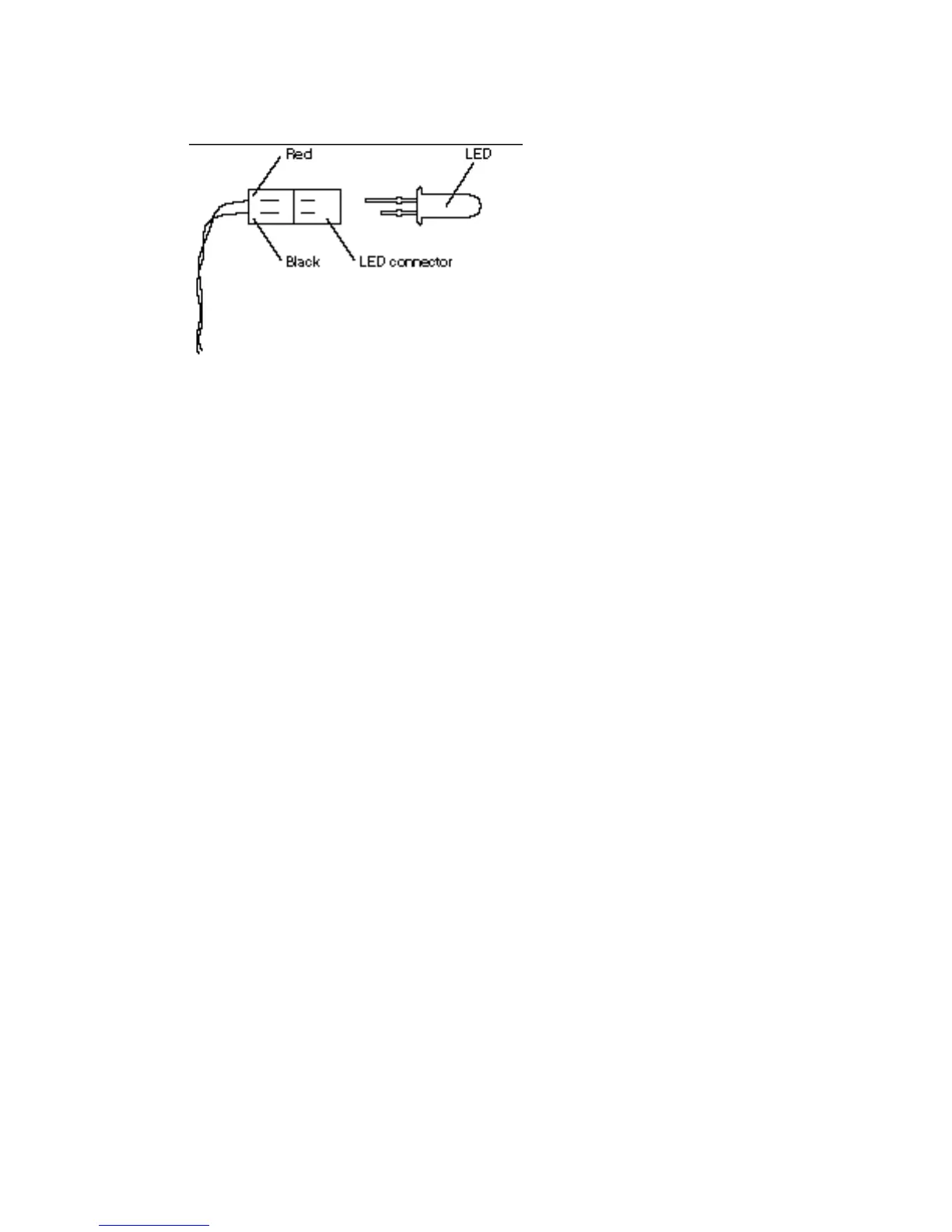

Figure 16–4 Connecting the LED to the LED Connector
3. Slide the LED into the LED cavity. Push it into the cavity until it comes in
contact with the locating stop.
See Figure 16–5.
Light-Emitting Diode 165
