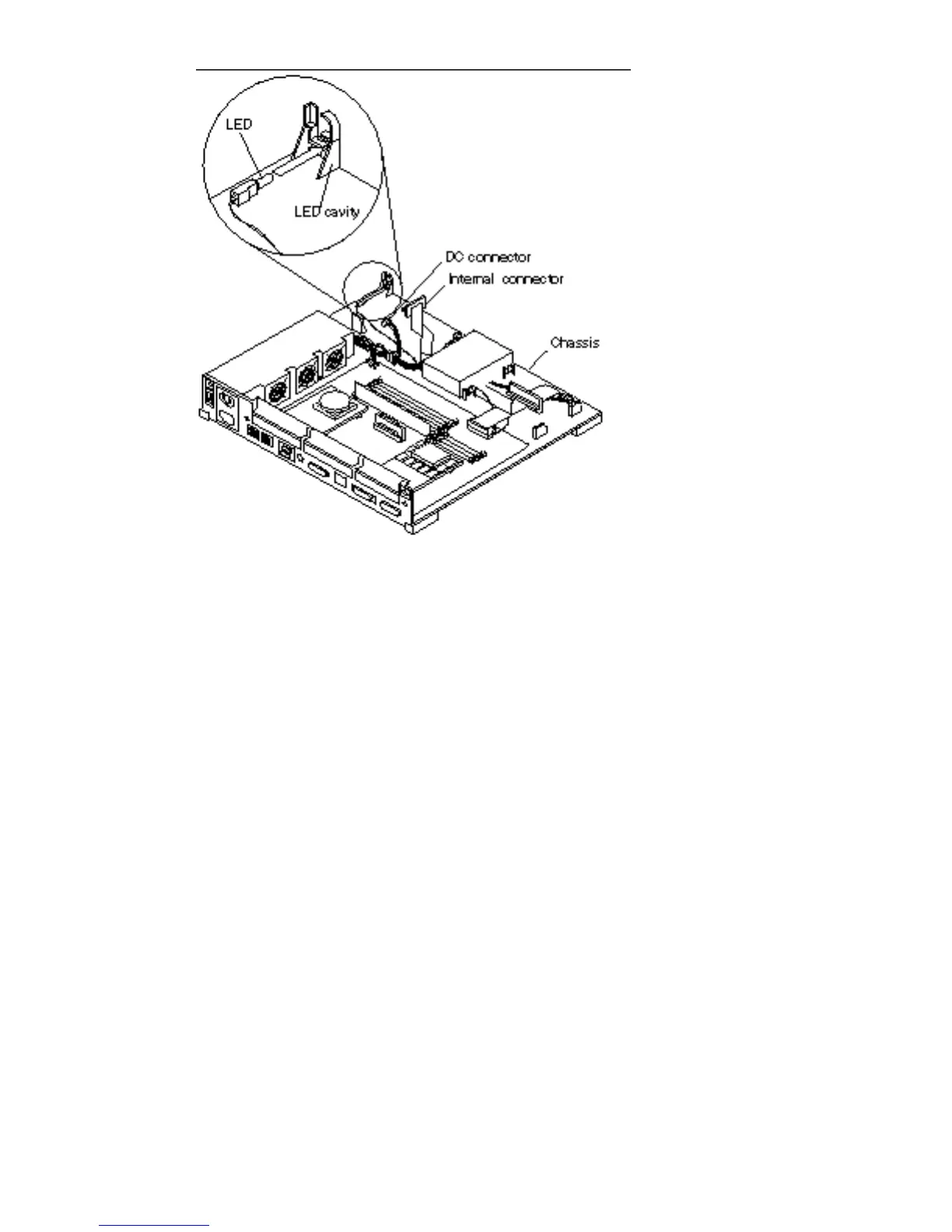

Figure 16–5 Installing the LED into the Chassis
4. Install the diskette drive.
See Figure 16–6.
a. Position the drive unit so the data and power cables face the inside of the
chassis.
b. Lower the drive into the chassis and align the three grommets into the drive
mounts.
166
SPARCstation 10 Service Manual ♦ Revision A, July 1993
