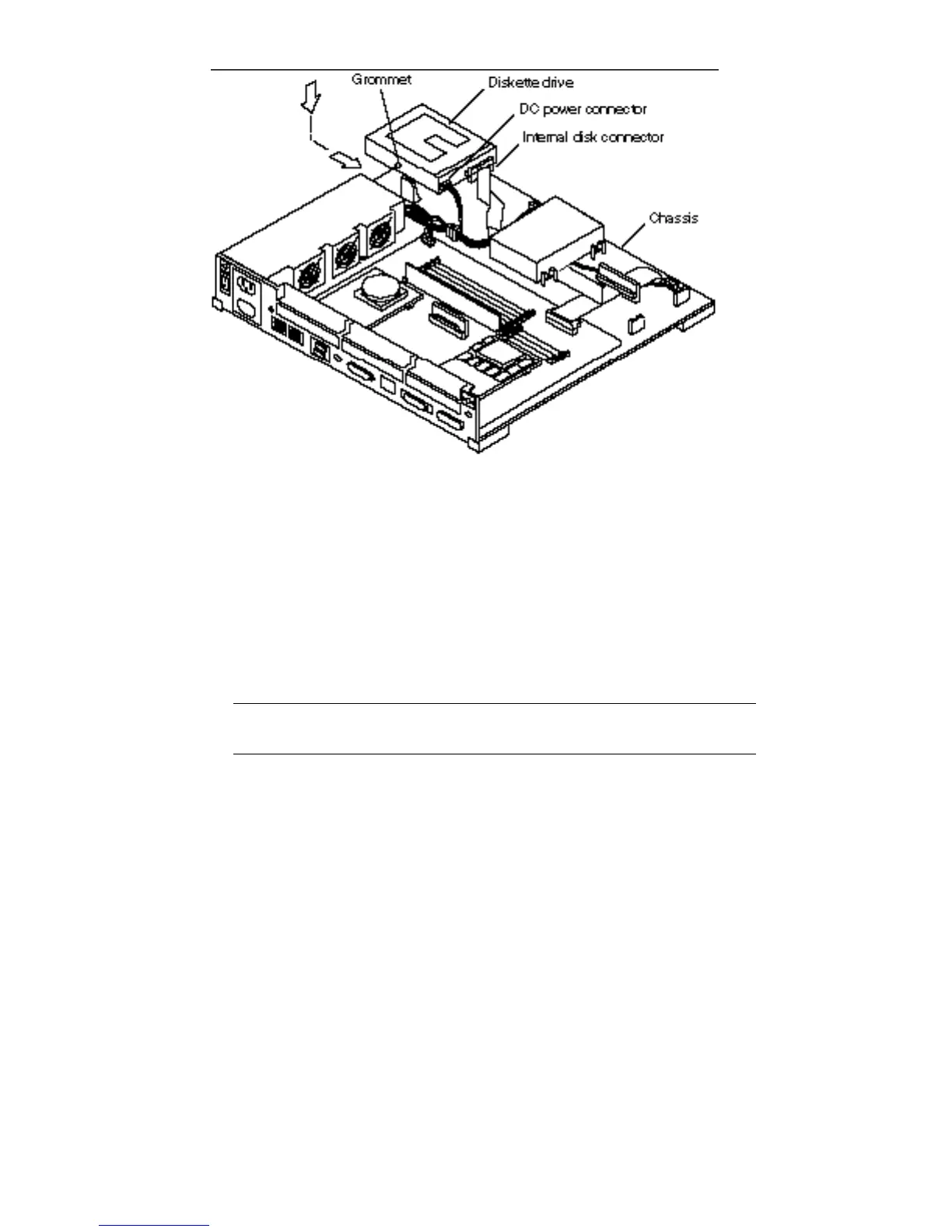

Figure 16–6 Installing the Diskette Drive
c. Connect the DC power harness to the diskette drive.
The connector is keyed so that it will fit only one way.
d. Connect the internal disk connector to the diskette drive.
The connector is keyed so that it will fit only one way.
e. Slide the diskette drive toward the center of the chassis until the three
grommets sit tightly in the drive mounts.
Note - The system cover may not close, if the diskette drive is not seated
correctly in the drive mounts.
f. Insert clips into the diskette drive mounts at two places after installing the
diskette drive.
Light-Emitting Diode 167
