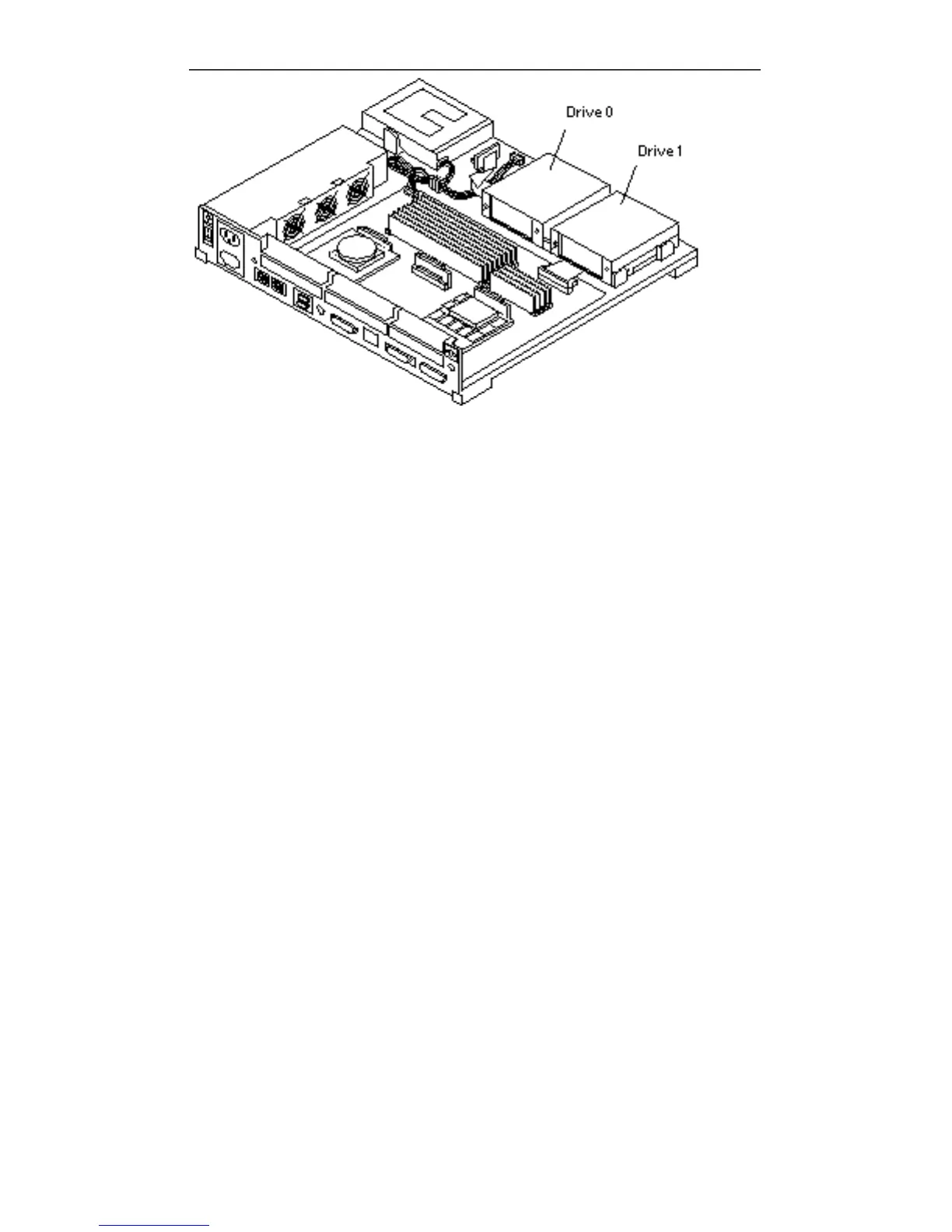

Figure 12–1 Hard Disk Drive Locations

7. Slide the hard disk drive toward the rear of the chassis to free the grommets

from the drive mounts.

See Figure 12–2.

Hard Disk Drives 121
