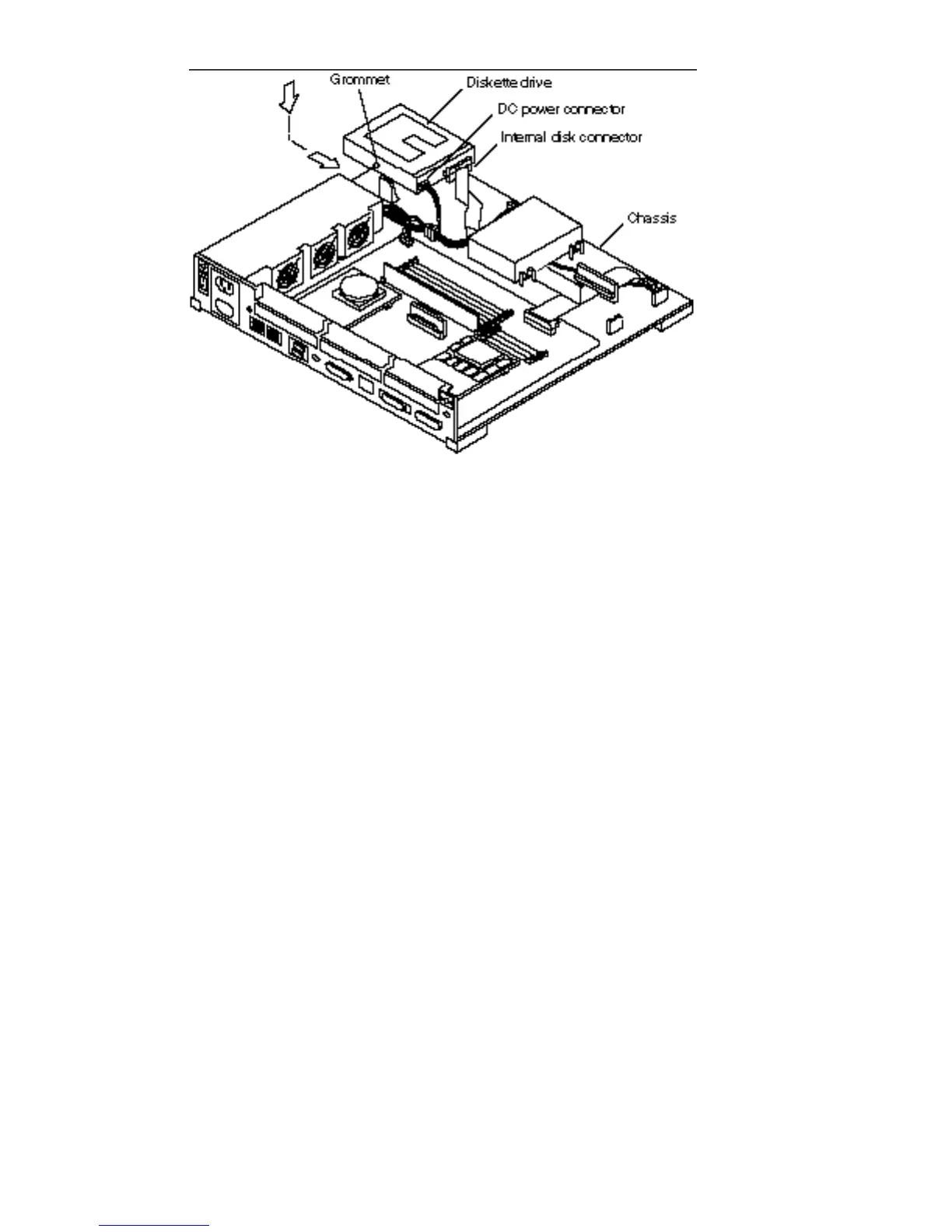

Figure 13–4 Installing a Diskette Drive
3. Connect the DC power connector to the diskette drive and the internal disk
connector to the diskette drive.
The connectors are keyed so that it will fit only one way. See Figure 13–4.
4. Slide the diskette drive toward the center of the chassis until the three
grommets sit tightly in the drive mounts.
5. Insert the diskette drive clips into the drive mounts in their designated
positions.
See Figure 13–5.
Diskette Drive 139
