Sun Microsystems SPARCstation 10 - Page 51

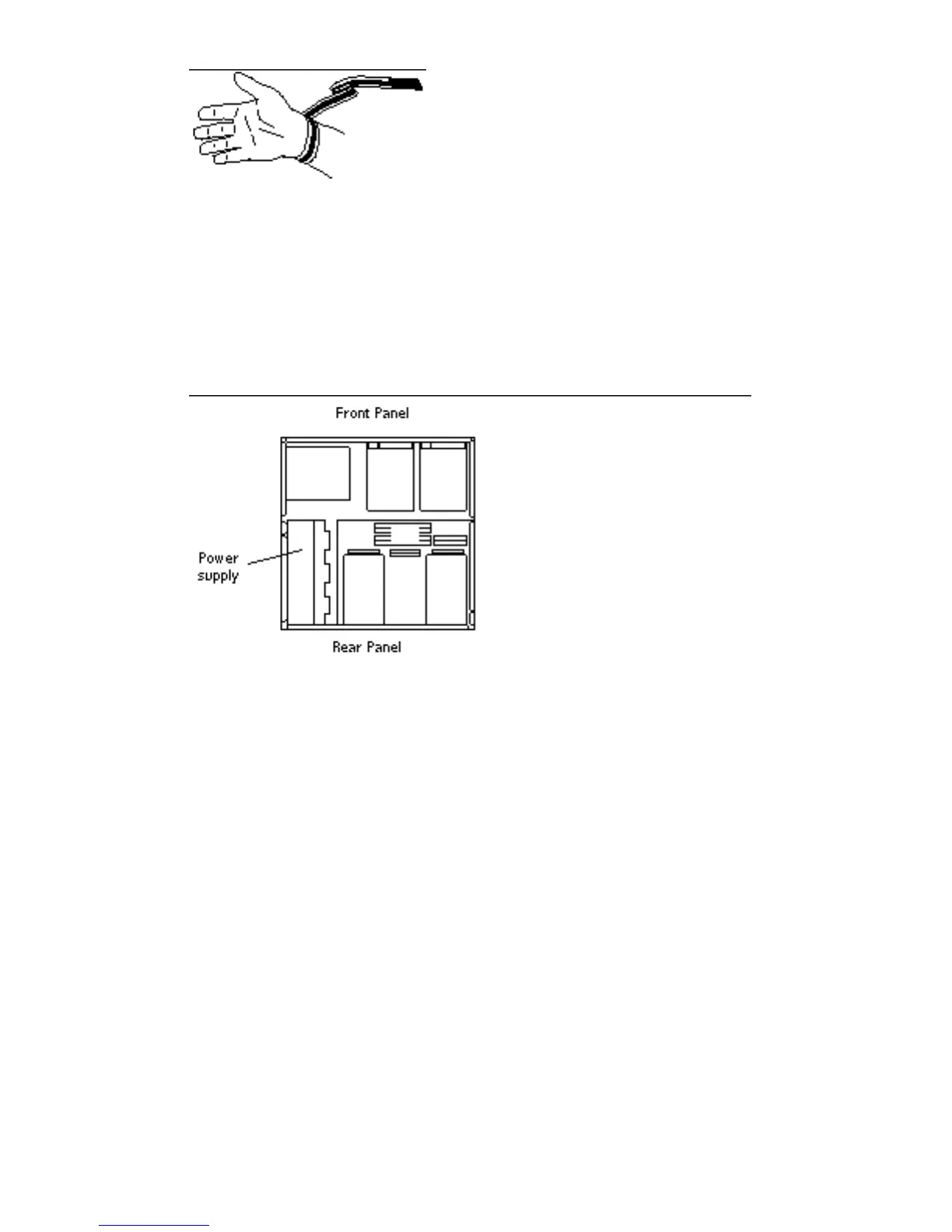

Figure 4–4 Wrapping the Wrist Strap Around Your Wrist
2. Peel the liner from the copper foil at the opposite end of the wrist strap.
3. Affix the adhesive copper end of the wrist strap to the top of the metal casing
of the power supply.
See Figure 4–5.
Figure 4–5 Power Supply Location
Preparing the System 35
