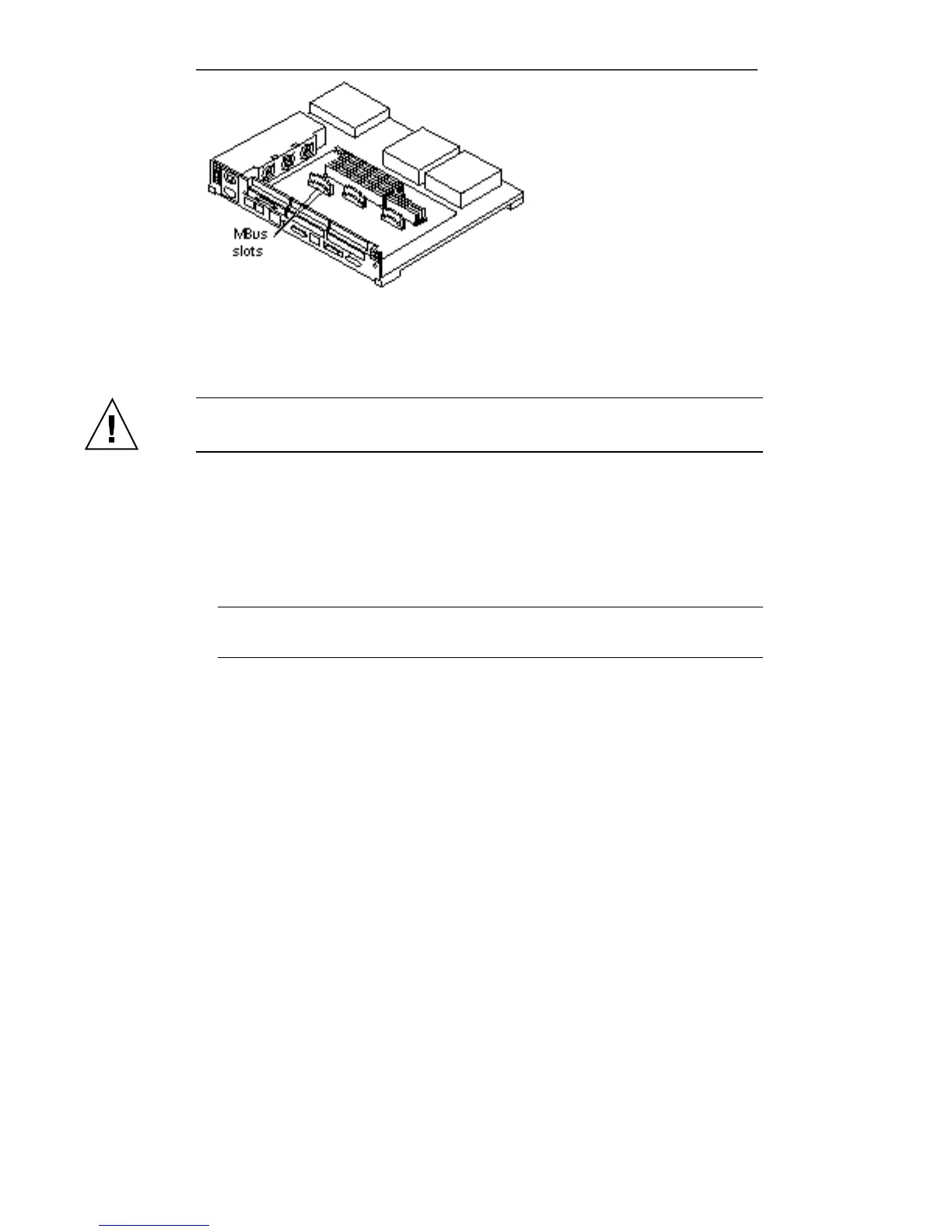

Figure 5–27 MBus Slot Locations on the Main Logic Board
Caution - Excessive force may bend or damage the pins.
3. Push the MBus module connector down until it is fully seated on the MLB.
4. Lock the module retainers in place by pushing the arms over the edge of the
MBus module.
See Figure 5–28.
Note - The MBus module must be properly seated so that the module retainers
lock securely over the module edges.
62 SPARCstation 10 Service Manual ♦ Revision A, July 1993
