21
2.6.8 Edit User Notes
By touching the blue text box at the
bottom of your program you can
bring up the “Edit User Notes”
Screen.

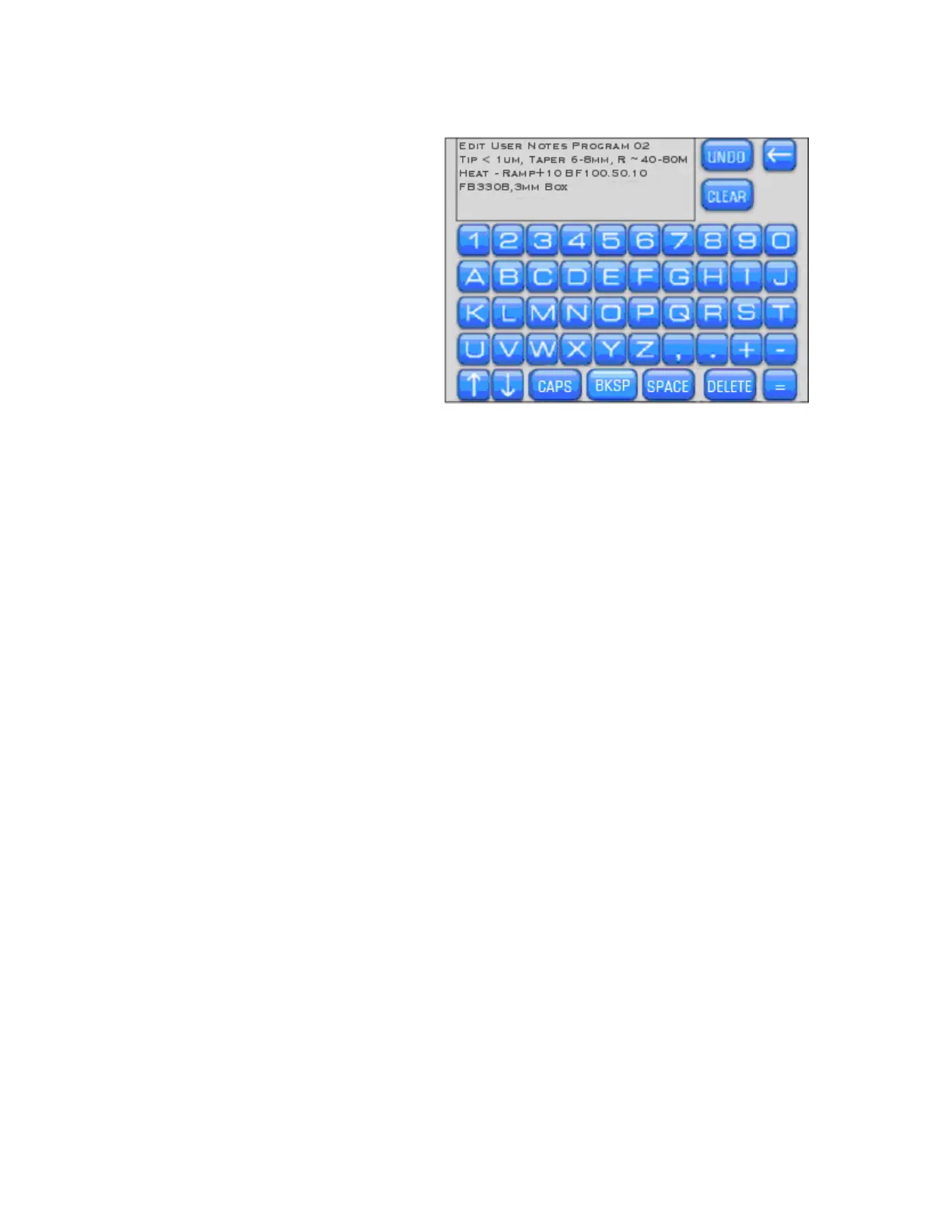

Figure 2-19. Edit user notes.
Here you can edit the notes, press [Undo] to start over, or [Clear] all text and write your own
notes. Pre-installed factory programs (0-5) and any programs imported from the Cookbook
feature will have pre-written text notes detailing the filament, glass, pipette type and
appropriate heat to use with that program. Take caution before clearing all text, as you
might want to retain some information already describing this program. If the notes no
longer apply to your program, clear all text and write your own notes.
The “Notes” section is a good place to record whose program it belongs to, the filament type
(box or trough), the glass size (OD/ID), and the application for which the program was
designed. You might also want to record the heat setting you are using in relation to the
Ramp Value. For example: Heat = Ramp +10.
The Rotary Dial allows cursor movement through the text. Cursor position is indicated by
the character in which the cursor is positioned turning green.
2.7 Error Messages during Pull
Allow Jaws to cool below 100°C. Pull temporarily inactivated.
The jaws have overheated due to excessive and continuous use and you risk melting the
black nylon backing. Wait for filament jaws to cool and/or call Sutter for technical help.
Maximum 10 Program Lines.
There are too many lines in your Program. A program with more than 6 lines or six loops
can introduce variability. Edit your program, using the cookbook feature to find new
settings, or call Sutter for technical support.
Puller bars are separated. Re-clamp glass. Then press PULL again.
The puller Bars must be drawn all the way together. Check that the puller bars are free
to travel all the way to the center. If the puller bars are held back and are not free to
move, press the outer metal spring locks to free up the puller bars.
Line 1 Heat = 0.
Install a heat setting.
P-1000 FLAMING/BROWN MICROPIPETTE PULLER SYSTEM OPERATION MANUAL – REV. 3.02 (20161118)
