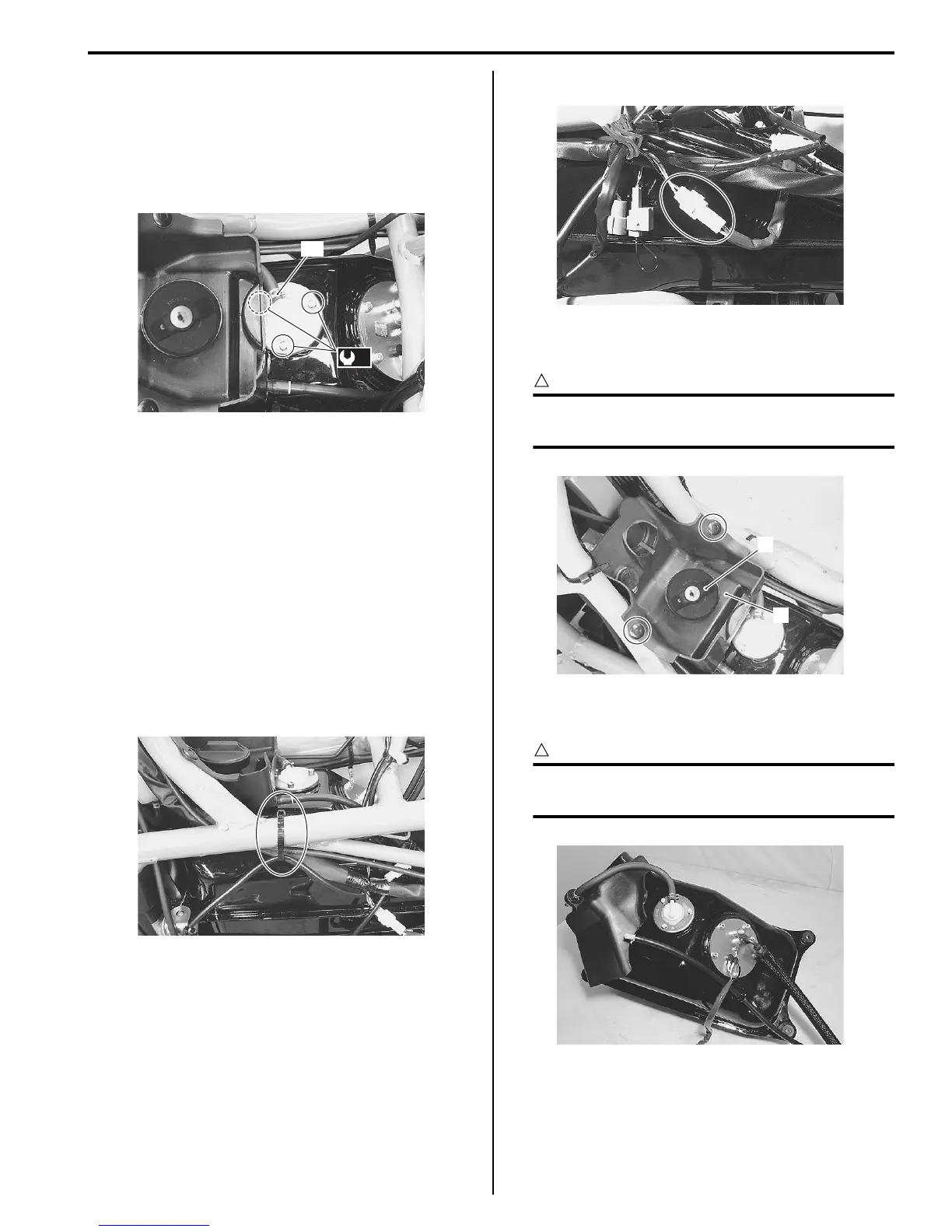

Suzuki AN400 - Fuel Tank Removal and Installation

Fuel System: 1G-7
• Install the fuel cut valve with its hose attaching section
“C” facing the vehicle body right side.
• Tighten the fuel cut valve bolt to the specified torque.
Tightening torque
Fuel cut valve bolt (a): 3.5 N·m (0.35 kgf-m, 2.5 lb-
ft)
Fuel Tank Removal and Installation
B705H11706018
Removal
1) Remove the footboards. Refer to “Footboard
Removal and Installation in Section 9D (Page9D-
21)”.
2) Remove the engine. Refer to “Engine Assembly
Removal and Installation in Section 1D (Page1D-6)”.
3) Remove the cushion lever mounting nut. Refer to
“Rear Shock Absorber and Rear Shock Absorber
Assembly Removal and Installation in Section 2C
(Page2C-4)”.
4) Remove the clamp.
5) Disconnect the fuel pump coupler.
6) Remove the fuel tank filler cap (1) and fuel drain tray
(2) from the fuel inlet.
CAUTION
!
After removing the fuel drain tray (2), refit the
fuel tank filler cap (1) to the fuel tank.
7) Remove the fuel tank by removing the bolts and
bracket.
CAUTION
!
Keep away from fire or sparks since gasoline
may leak.
(a)
“C”
I705H1170027-06
I705H1170002-03
I705H1170003-01
2
1
I705H1170004-05
I705H1170028-01
