Suzuki AN400 Service Manual

Exterior Parts: 9D-16

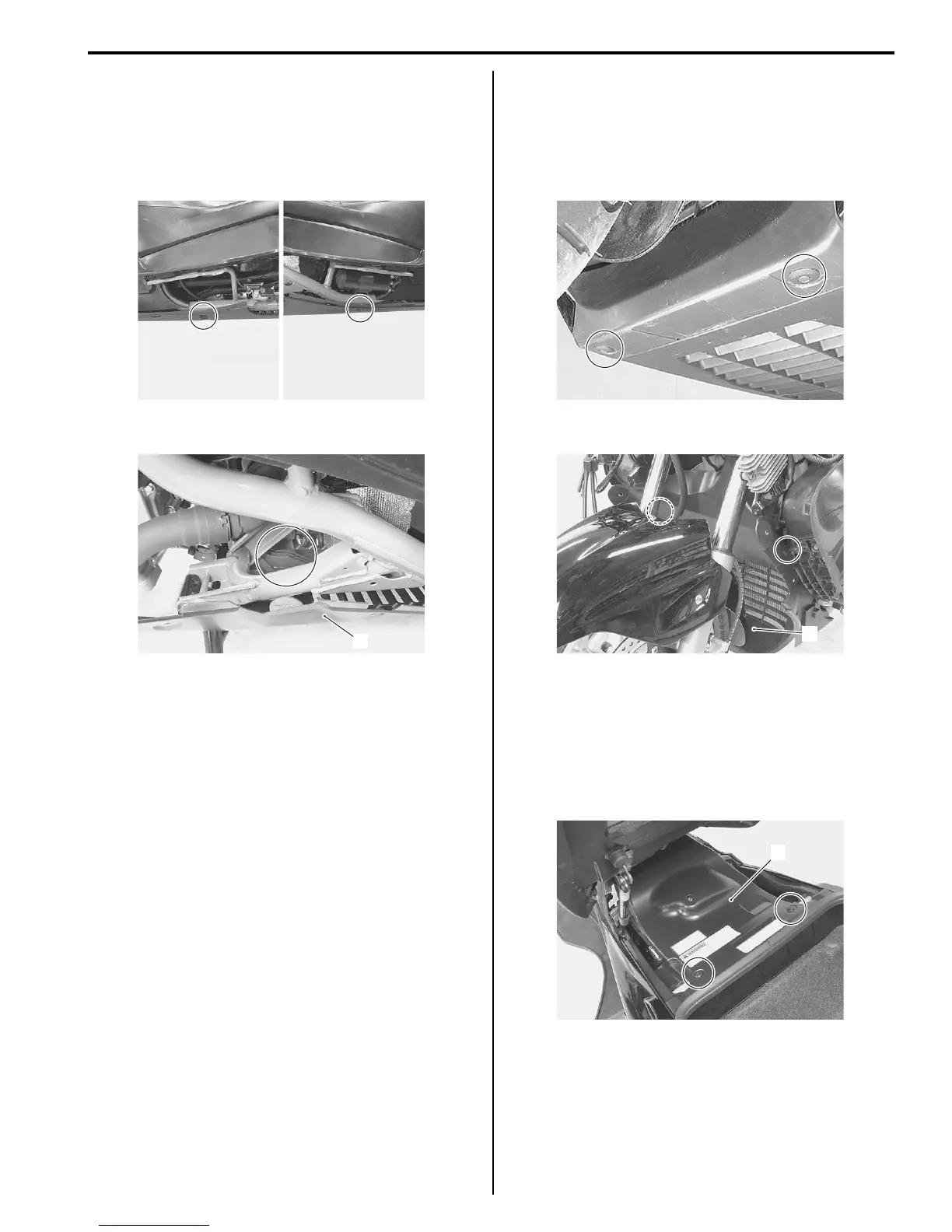

Under Cover Removal and Installation
B705H19406011
Removal
1) Remove the side leg shields. Refer to “Side Leg
Shield Removal and Installation (Page9D-15)”.
2) Remove the fasteners.
3) Remove the under cover (1).
Installation
Install the under cover in the reverse order of removal.
Lower Leg Shield Removal and Installation
B705H19406012
Removal
1) Remove the front leg shield. Refer to “Front Leg
Shield Removal and Installation (Page9D-14)”.
2) Remove the fasteners.
3) Remove the lower leg shield (1).
Helmet Box Front Cover Removal and
Installation
B705H19406013
Removal
1) Open the seat.
2) Remove the helmet box front cover (1).
Installation
Install the helmet box front cover in the reverse order of
removal.
I705H1940021-01
1
I705H1940022-03
I705H1940023-01
1
I705H1940024-01
1
I705H1940025-01

Suzuki AN400 Specifications

General

Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, single-cylinder, DOHC
Bore x Stroke	81.0mm x 77.6mm
Front Brakes	Disc brake
Rear Brakes	Disc brake
Rear Tire	150/70-13M/C 64S, tubeless
