Suzuki AN400 - Rear Wheel Assembly Removal and Installation

Wheels and Tires: 2D-9
Rear Wheel Assembly Removal and Installation
B705H12406025
Refer to “Exhaust Pipe / Muffler Removal and Installation
in Section 1K (Page1K-2)”.
Refer to “Rear Brake Caliper Removal and Installation in
Section 4C (Page4C-3)”.
Removal
1) Remove the helmet box front cover. Refer to “Helmet
Box Front Cover Removal and Installation in Section
9D (Page9D-16)”.

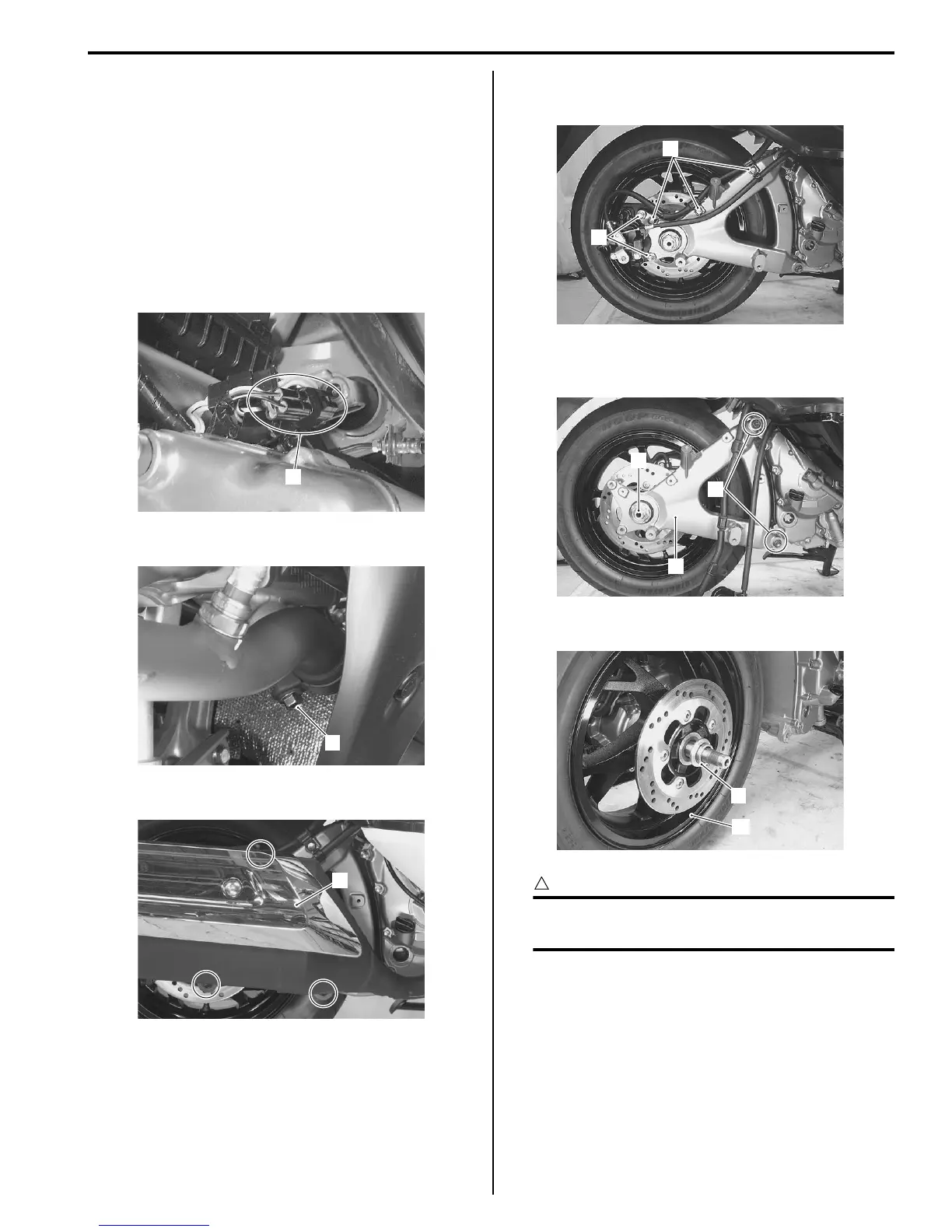

2) Disconnect the HO2 sensor lead wire coupler (1).
3) Remove the exhaust pipe connecting bolt (2).
4) Remove the muffler (3).
5) Remove the rear brake hose clamps (4) and rear
brake caliper (5).
6) Remove the rear swingarm mounting bolts (6), rear
axle nut (7) and remove the rear swing arm (8).
7) Remove the inner color (9) and the rear wheel (10).
CAUTION
!
Do not operate the brake lever while
removing the rear wheel.
