Suzuki AN400 Service Manual

5A-2 Automatic Transmission:
Diagnostic Information and Procedures
Automatic Transmission Symptom Diagnosis
B705H15104001
Repair Instructions

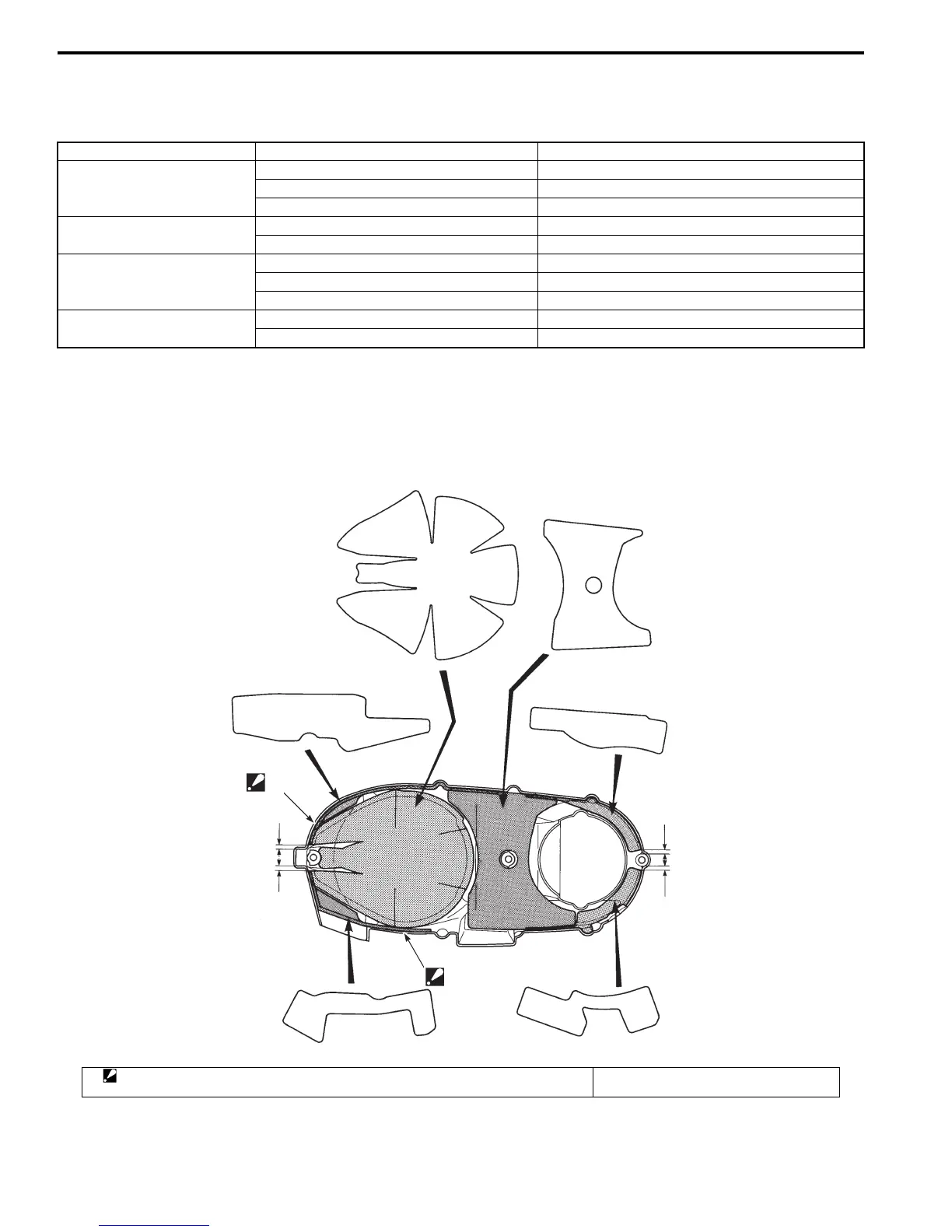

Outer Clutch Cover Cushion Construction
B705H15106012
Condition Possible cause Correction / Reference Item
Excessive engine noise Gear worn or abnormal contact. Replace.
Spline worn. Replace.
Bearing worn or burned. Replace.
V-belt slipping V-belt slipping. Replace.
Pulley face worn. Replace.
Clutch slipping Clutch shoe worn. Replace.
Centrifugal weight operation failure. Repair or replace.
V-belt worn. Replace.
Clutch dragging Clutch shoe spring fatigued. Replace.
Movable driven face distorted. Replace.
1
“a”
“a”
1
“a”
“a”
I705H1510068-02
1. Cushion
: Stick top of cushion 0 – 5 mm (0 – 0.2 in) inside of the clutch outer cover.
“a”: 5 – 10 mm (0.2 – 0.4 in)

Suzuki AN400 Specifications

General

Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, single-cylinder, DOHC
Bore x Stroke	81.0mm x 77.6mm
Front Brakes	Disc brake
Rear Brakes	Disc brake
Rear Tire	150/70-13M/C 64S, tubeless
