4C-1 Rear Brakes:
Rear Brakes
Repair Instructions

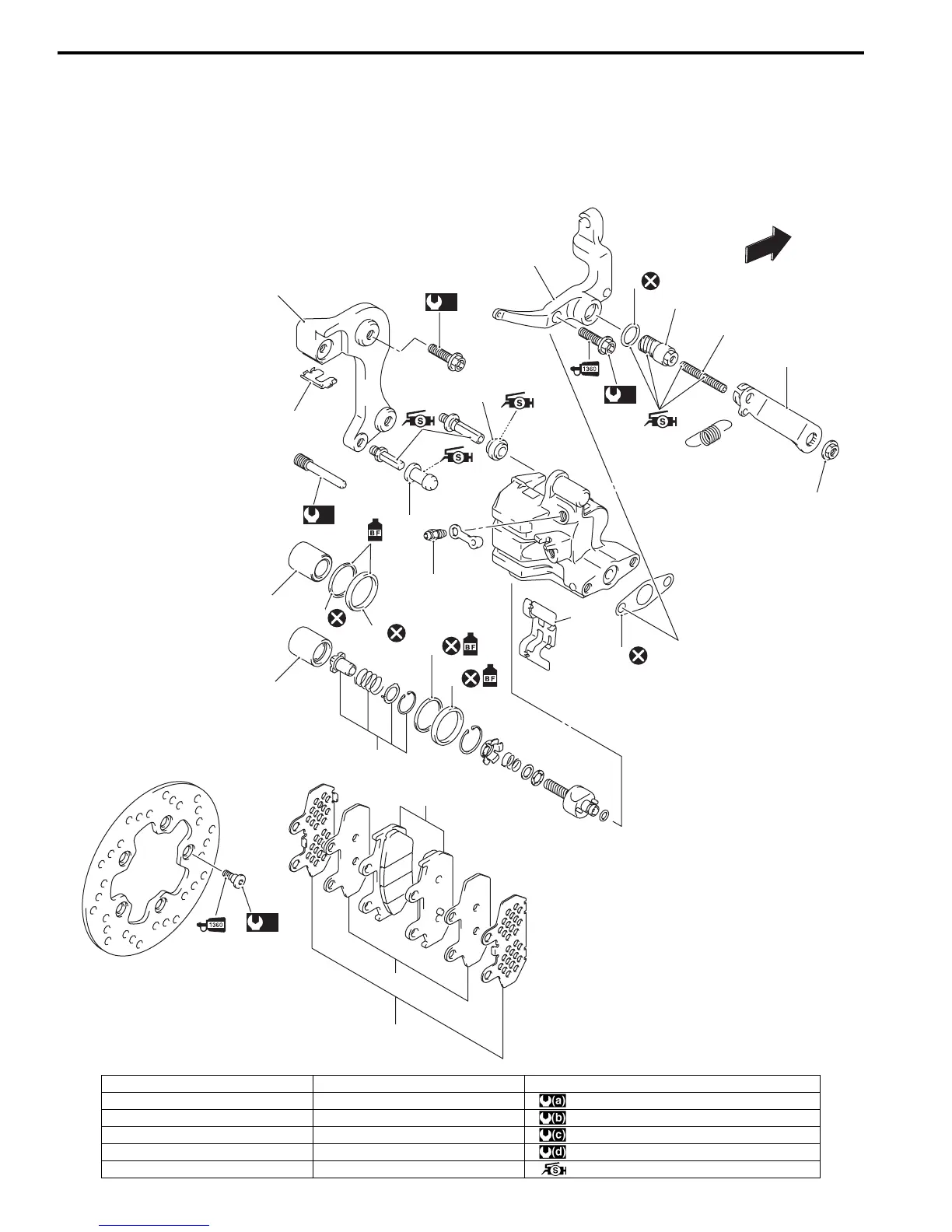

Rear Brake Components
B705H14306011
(d)
21
22
23
18
17
19
20
14
15
16
(c)
13
9
12
(b)
11
10
11
7
5
4
3
2
1
(a)
6
8
9
FWD
FWD
I705H1430001-02
1. Lock-nut 12. Bracket 23. Brake pad
2. Arm 13. Pad mounting pin : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
3. Adjuster 14. Piston (Upper side) : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
4. Brake-lock shaft 15. Dust seal : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft)
5. O-ring 16. Piston seal : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
6. Brake-lock housing bolt 17. Piston (Lower side) : Apply silicone grease to sliding surface.
