Suzuki AN400 Service Manual

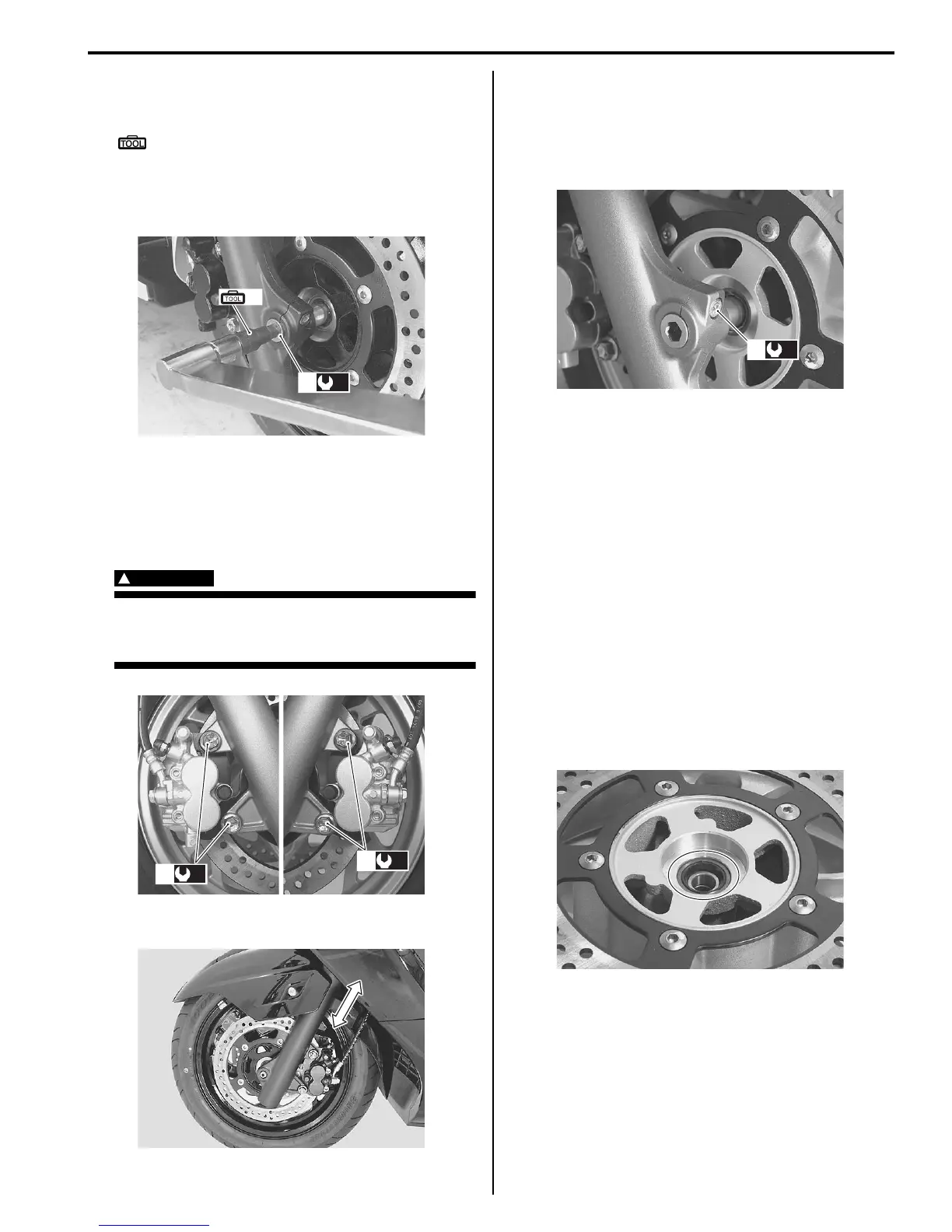

Wheels and Tires: 2D-5
3) Tighten the front axle (2) to the specified torque
using the special tool.
Special tool
(A): 09900–18710 (Hexagon socket (12
mm))
Tightening torque
Front axle (a): 65 N·m (6.5 kgf-m, 47.0 lb-ft)
4) Tighten the brake caliper mounting bolts (3) to the
specified torque.
Tightening torque
Front brake caliper mounting bolt (b): 35 N·m (
3.5 kgf-m, 25.5 lb-ft)
WARNING
!
After remounting the brake calipers, pump
the brake lever until the pistons push the pad
correctly.
5) Move the front fork up and down 4 or 5 times.
6) Tighten the axle pinch bolt (4) on the right front fork
leg to the specified torque.
Tightening torque
Front axle pinch bolt (c): 23 N·m (2.3 kgf-m, 16.5
lb-ft)
Front Wheel Related Parts Inspection
B705H12406021
Refer to “Front Wheel Assembly Removal and
Installation (Page2D-4)”
Inspect the following parts.
Tire
Refer to “Tire Inspection in Section 0B (Page0B-15)”.
Front Brake Disc
Refer to “Front Brake Disc Inspection in Section 4B
(Page4B-6)”.
Dust Seal
Inspect the dust seal lips for wear or damage. If any
defects are found, replace the dust seal with the new
ones. Refer to “Front Wheel Dust Seal / Bearing
Removal and Installation (Page2D-6)”.
(A)
(a)
2
I705H1240005-04
(b)
3
(b)
3
I705H1240006-04
I705H1240027-01
(c)
4
I705H1240007-04
I705H1240008-01

Suzuki AN400 Specifications

General

Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, single-cylinder, DOHC
Bore x Stroke	81.0mm x 77.6mm
Front Brakes	Disc brake
Rear Brakes	Disc brake
Rear Tire	150/70-13M/C 64S, tubeless
