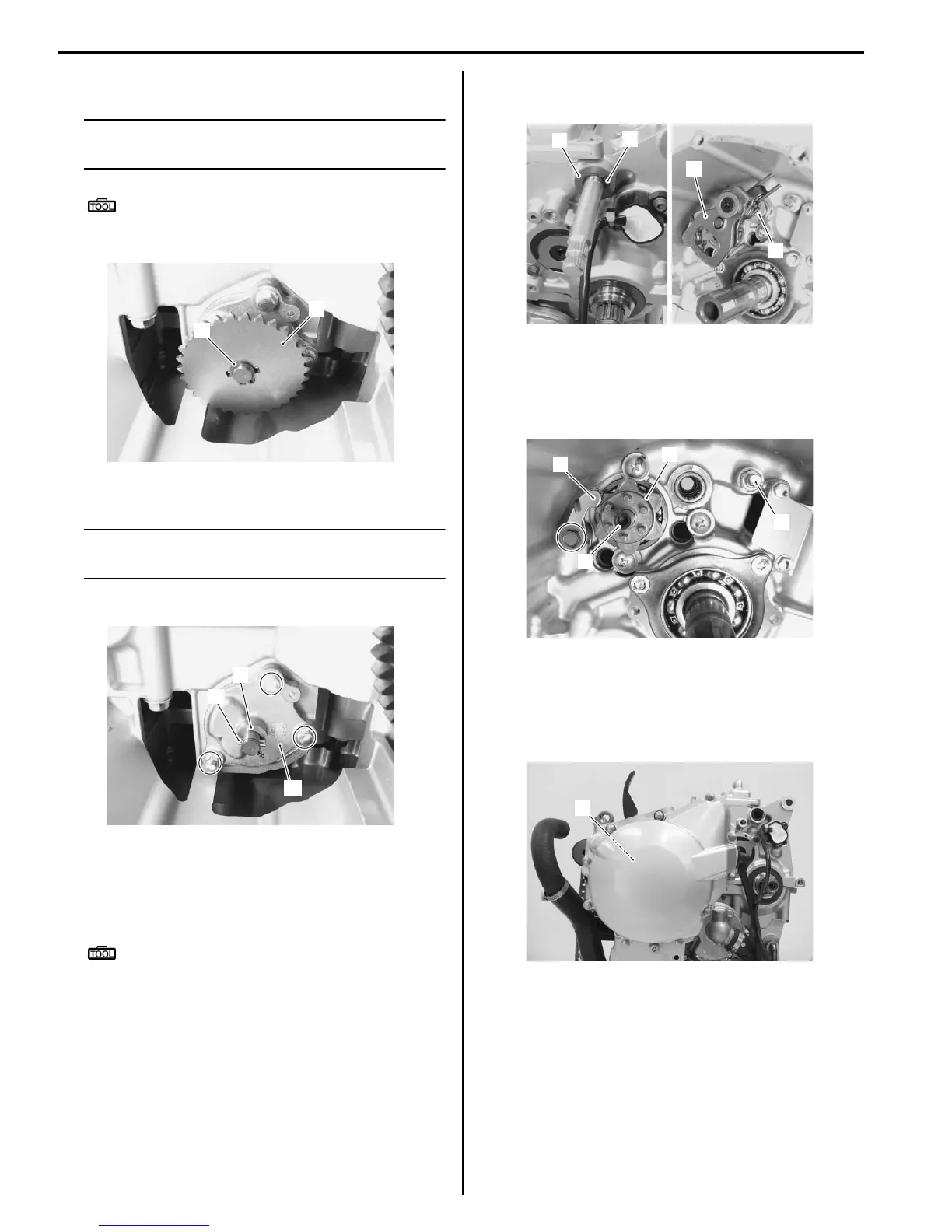

Suzuki GSF650A - Page 264

1D-52 Engine Mechanical:
4) Remove the snap ring (6).
NOTE
Do not drop the snap ring (6) into the
crankcase.
Special tool
: 09900–06107 (Snap ring pliers)
5) Remove the oil pump driven gear (7).
6) Remove the pin (8) and washer (9).
NOTE
Do not drop the pin (8) and washer (9) into
the crankcase.
7) Remove the oil pump (10).
Gearshift System
1) Remove the snap ring (1) and washer (2) from the
gearshift shaft.
Special tool
: 09900–06107 (Snap ring pliers)
2) Remove the gearshift shaft assembly (3) and washer
(4).
3) Remove the gearshift cam plate bolt (5) and
gearshift cam plate (6).
4) Remove the gearshift cam stopper (7) and gearshift
arm stopper (8).
Generator
Remove the generator component parts (1). Refer to
“Generator Removal and Installation in Section 1J
(Page 1J-4)”.
6
7
I717H1140129-01
8
9
10
I717H1140130-01
1
2
3
4
I717H1140131-01
5
6
7
8
I717H1140132-01
1
I717H1140133-02
