1K-2 Exhaust System:
Repair Instructions

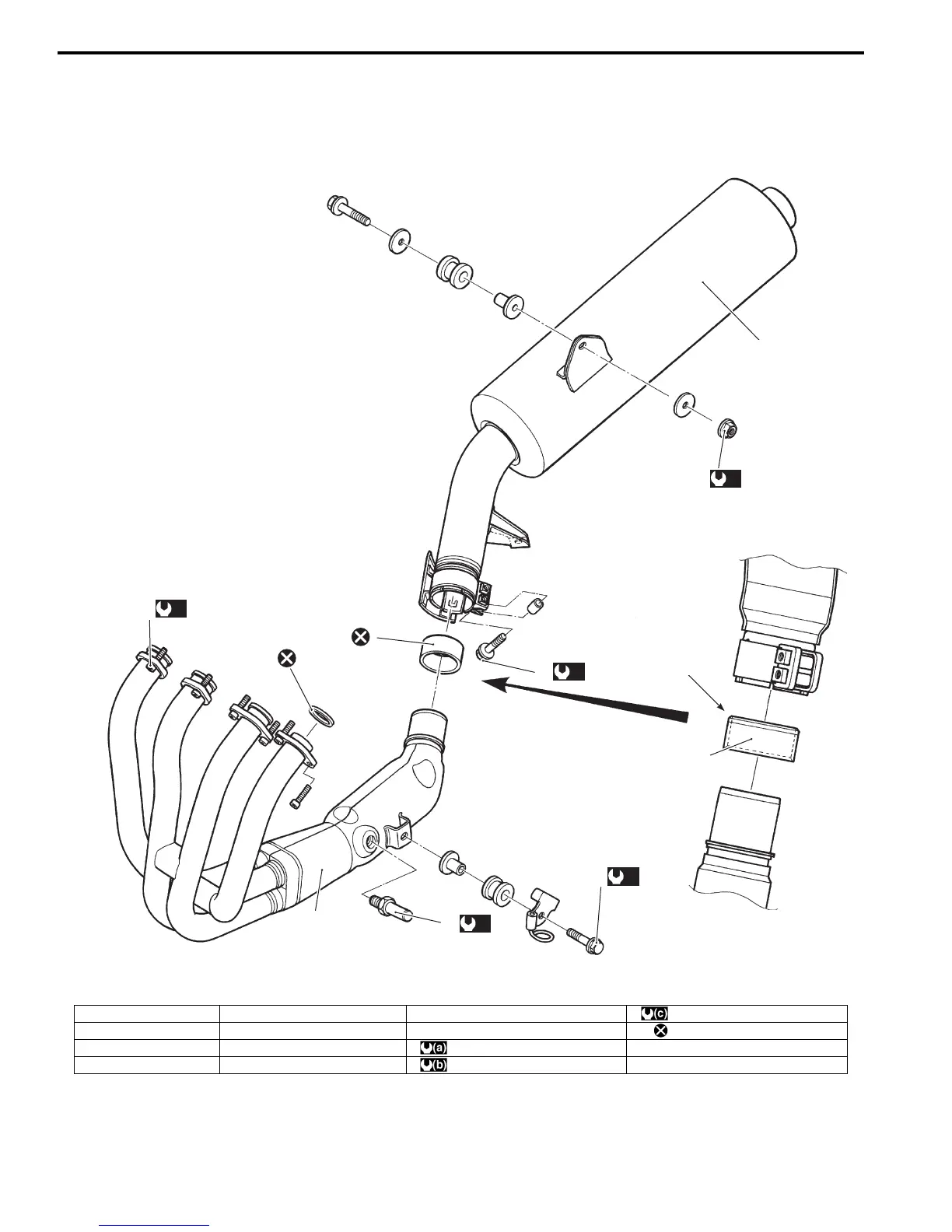

Exhaust System Construction
B817H21B06001
2
3
(b)
7
(c)
8
(a)
6
(a)
4
(a)
5
1
“A”
“B”
I718H11B0001-03
1. Exhaust pipe 5. Exhaust pipe mounting bolt “A”: Chamfer : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
2. Muffler 6. Muffler connecting bolt “B”: Apply exhaust gas sealer. : Do not reuse.
3. Muffler connector 7. Muffler mounting nut : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
4. Exhaust pipe bolt 8. HO2 sensor : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
