Engine Mechanical: 1D-51

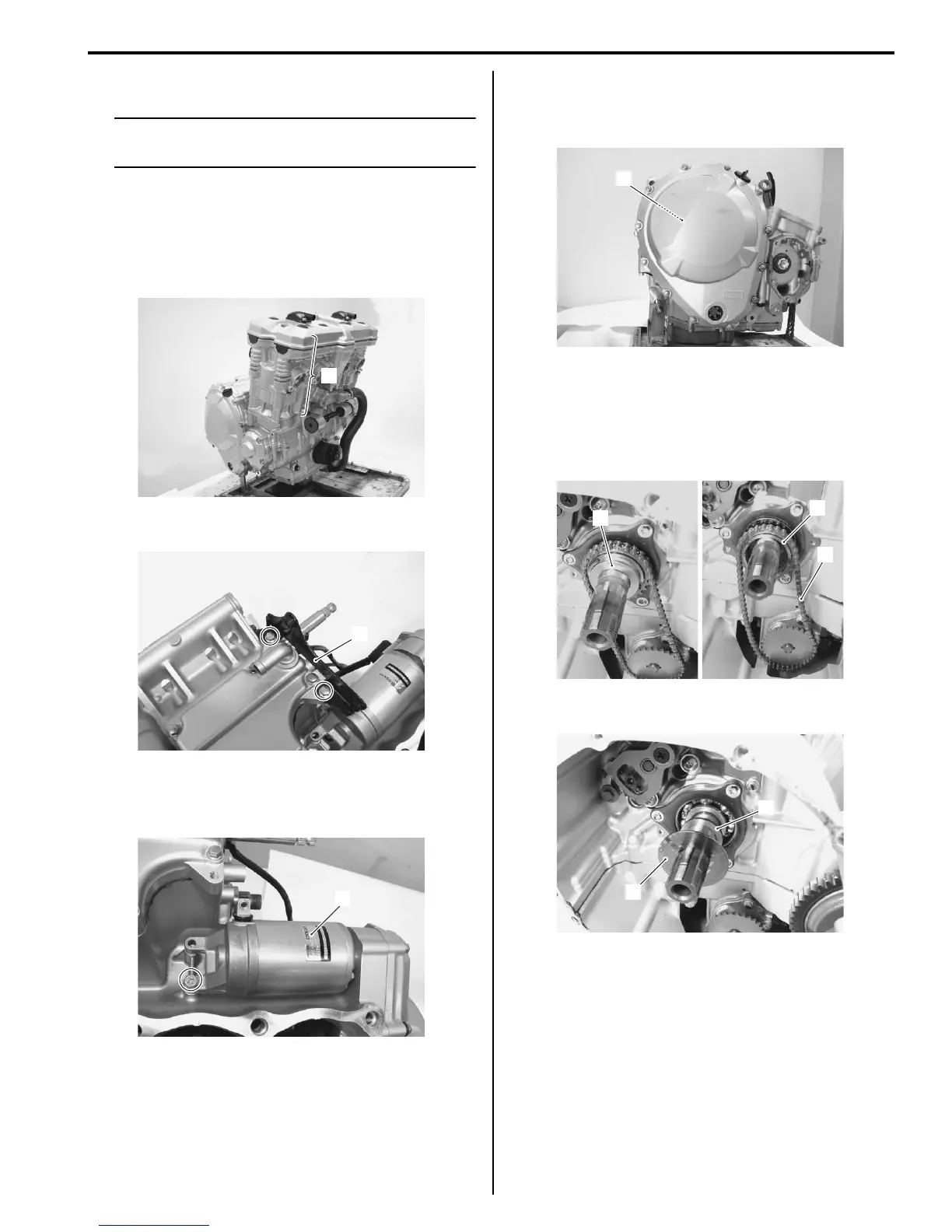

Engine Bottom Side Disassembly
B817H21406035
NOTE
The crankcase must be separated to service
the crankshaft and conrod.
Engine Top Side
1) Remove the engine assembly. Refer to “Engine
Assembly Removal (Page 1D-18)”.
2) Disassemble the engine top side (1). Refer to
“Engine Top Side Disassembly (Page 1D-24)”.
3) Remove the regulator/rectifier bracket (2).
Starter Motor
Remove the starter motor (1).
Clutch
1) Remove the clutch component parts (1). Refer to
“Clutch Removal in Section 5C (Page 5C-12)”.
Oil Pump
1) Remove the spacer (1).
2) Remove the oil pump drive sprocket (2) and chain
(3).
3) Remove the thrust washer (4) and washer (5).
1
I717H1140123-01
2
I717H1140124-01
1
I717H1140125-01
1
I717H1140126-01
1
2
3
I717H1140127-03
5
4
I717H1140128-01
