Suzuki GSF650A - Rear Wheel Assembly Construction (GSF650 A;UA;SA;ASUK7); Rear Wheel Assembly Removal and Installation (GSF650 A;UA;SA;ASUK7)

Wheels and Tires: 2D-24

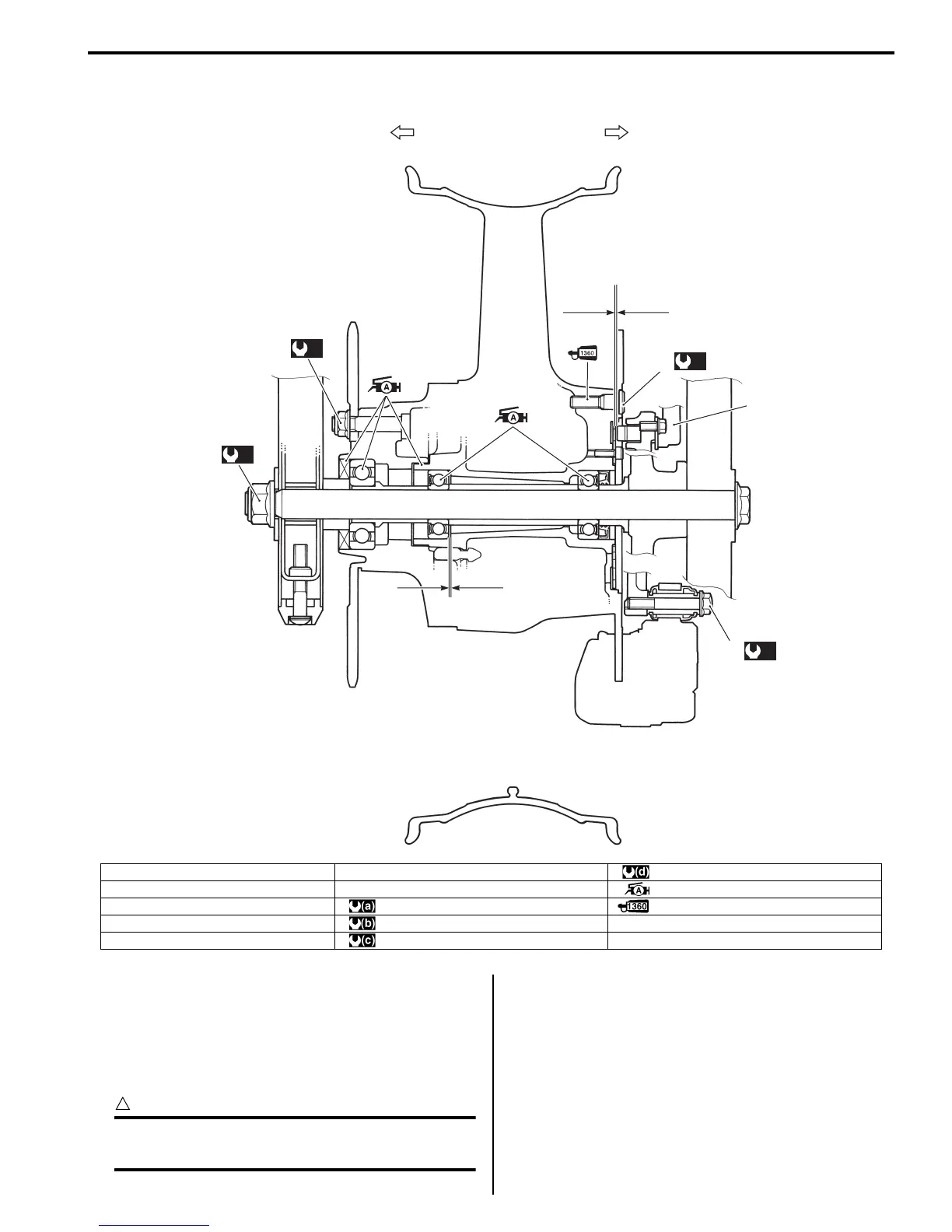

Rear Wheel Assembly Construction (GSF650A/UA/SA/ASUK7)
B817H22406019
Rear Wheel Assembly Removal and Installation
(GSF650A/UA/SA/ASUK7)
B817H22406020
Removal
1) Support the motorcycle with the center stand.
CAUTION
!
Make sure that the motorcycle is supported
securely.
2) Remove the rear wheel speed sensor by removing
the mounting bolts. Refer to “Rear Wheel Speed
Sensor Removal and Installation in Section 4E
(Page 4E-70)”.
Left Right
(d)
4
(b)
2
(a)
1
(c)
3
“b”
5
“a”
I717H2240004-01
1. Rear sprocket nut “a”: Clearance : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Rear axle nut “b”: 0.3 – 1.5 mm (0.012 – 0.059 in) : Apply grease.
3. Brake caliper mounting bolt : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft) : Apply thread lock to thread part.
4. Brake disc bolt : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
5. Rear wheel speed sensor : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
