6B-9 Steering / Handlebar:
If any abnormal points are found, replace defective parts
with new ones. Refer to “Ignition Switch Removal and
Installation in Section 1H (Page 1H-7)”.
Steering System Inspection
B817H26206009
Refer to “Steering System Inspection in Section 0B
(Page 0B-21)”.

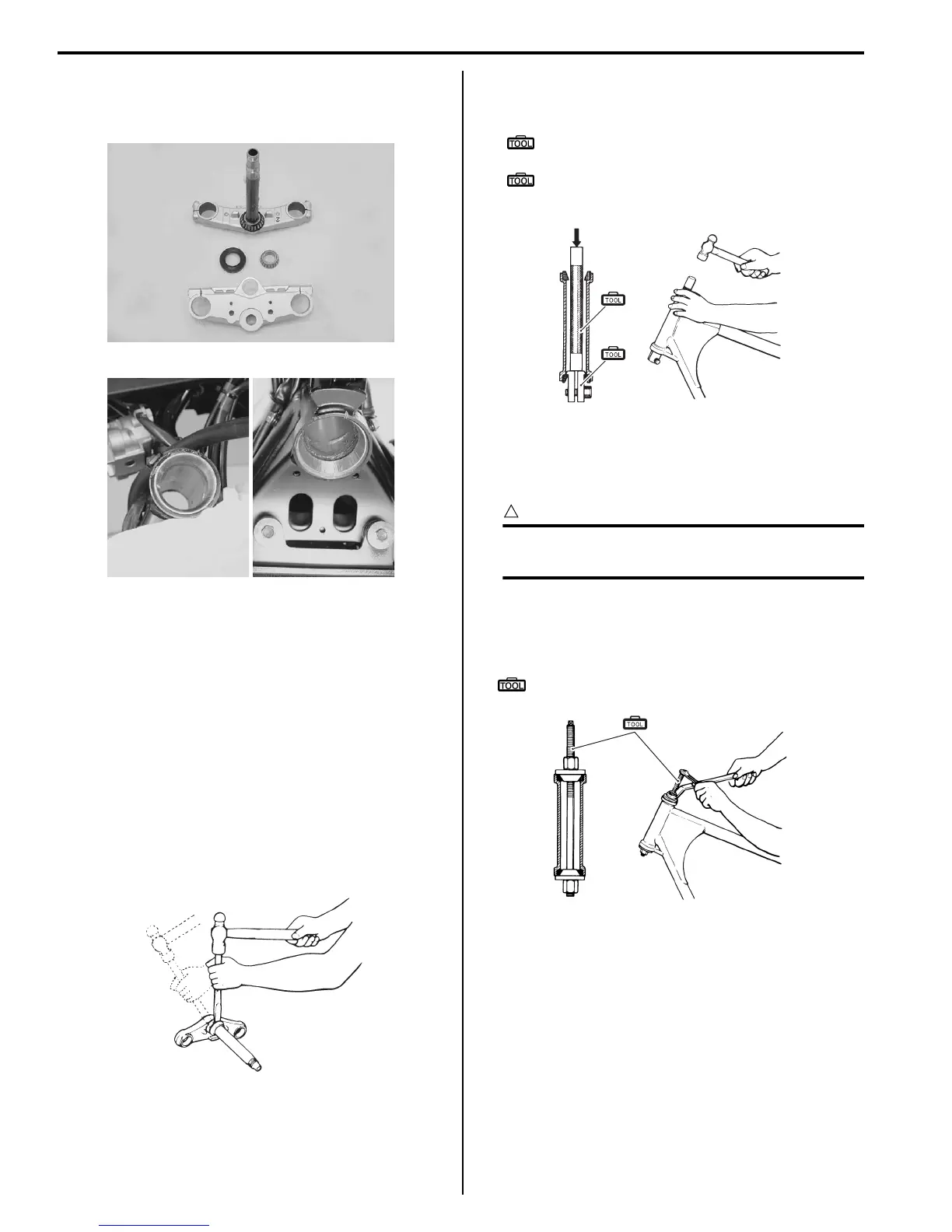

Steering Stem Bearing Removal and Installation
B817H26206010
Removal
1) Remove the dust seal and steering stem upper
bearing. Refer to “Steering Removal and Installation
(Page 6B-6)”.
2) Remove the steering stem lower bearing and inner
race using a chisel.
3) Remove the steering stem upper and lower bearing
races using the special tools.
Special tool
(A): 09941–54911 (Bearing outer race
remover)
(B): 09941–74911 (Steering bearing
installer)
Installation
Install the steering stem bearings in the reverse order of
removal. Pay attention to the following points:
CAUTION
!
The removed bearings and races should be
replaced with new ones.
Outer race
• Press in the upper and lower outer races using the
special tool.
Special tool
(A): 09941–34513 (Steering race installer)
I717H1620030-01
I717H1620031-01
I649G1620033-02
(B)
(A)
I649G1620034-03
(A)
I649G1620035-03
