Suzuki GSF650A - Engine Sprocket Outer Cover Cushion; Fastener Removal and Installation

Exterior Parts: 9D-5

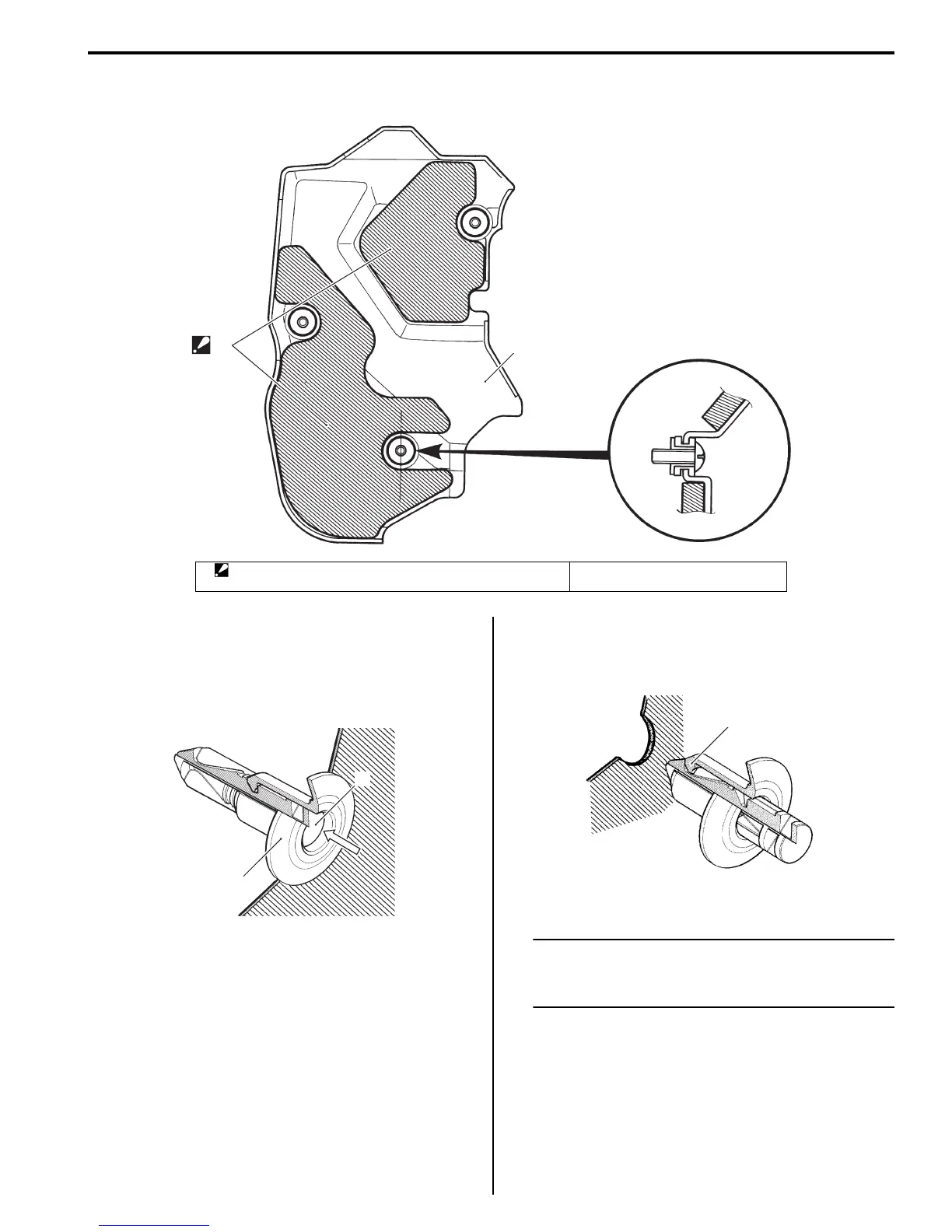

Engine Sprocket Outer Cover Cushion
B817H29406005
Fastener Removal and Installation
B817H29406006
Removal
1) Depress the head of fastener center piece (1).
2) Pull out the fastener (2).
Installation
1) Let the center piece stick out toward the head so that
the pawls “A” close.
2) Insert the fastener into the installation hole.
NOTE
To prevent the pawl “A” from damage, insert
the fastener all the way into the installation
hole.
1
2
I718H1940031-01
1. Engine sprocket outer cover cushion
: Clear adhesive surface before adhering the tape cushion.
2. Engine sprocket outer cover
1
2
I649G1940005-02
“A”
I649G1940006-02
