Engine General Information and Diagnosis: 1A-8
Component Location

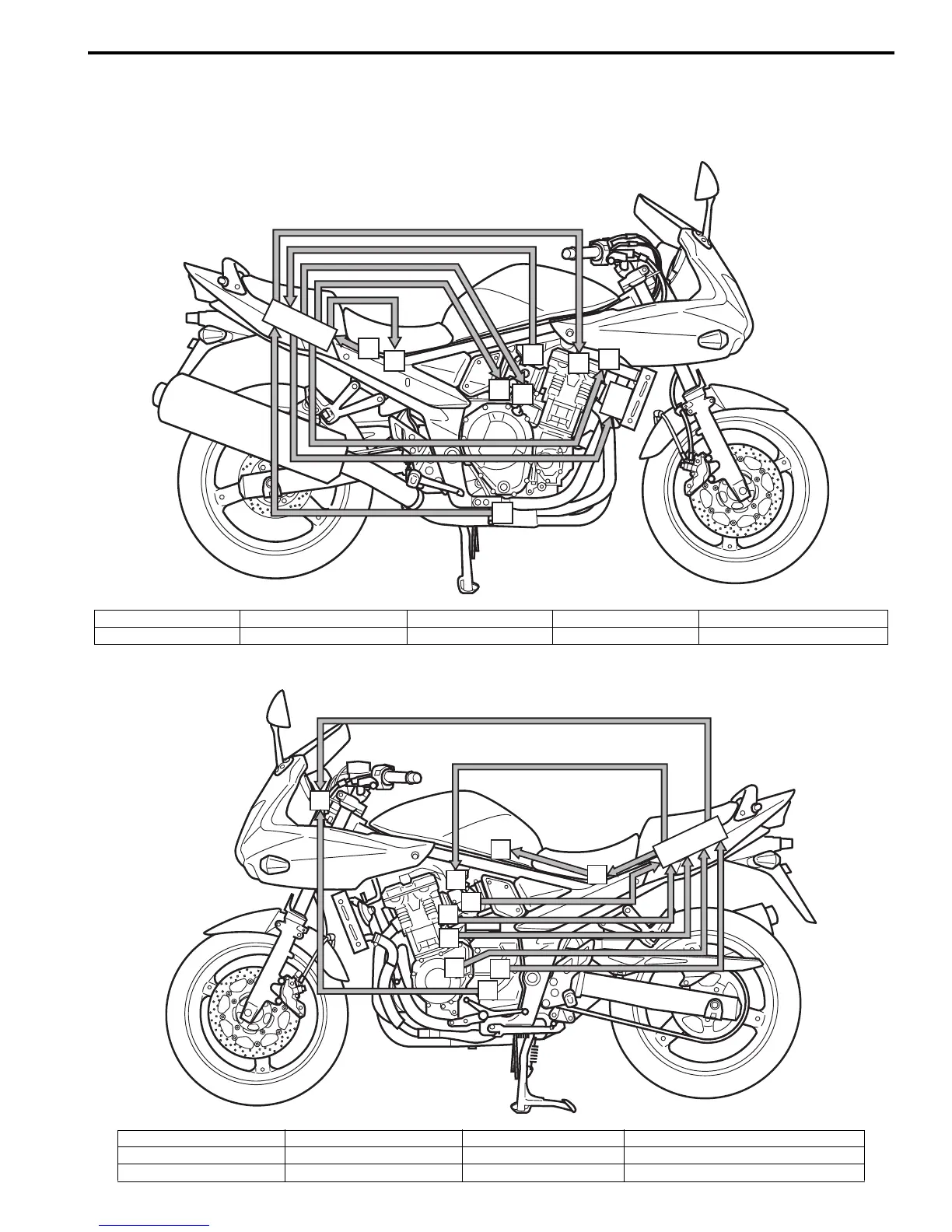

FI System Parts Location
B817H21103001
“A”
“B”
“C”
“D”
“E”
“F”
“H”
“I”
“J”
“G”
I717H1110003-02
“A”: ECM “C”: Cooling fan relay “E”: ISC valve “G”: Cooling fan “I”: PAIR control solenoid valve
“B”: TO sensor “D”: STV actuator “F”: HO2 sensor “H”: Ignition coil “J”: IAP sensor (#1)
“T”
“R”
“Q”
“
A”
“N”
“O”
“M”
“L”
“P”
“S”
“K”
I717H1110004-01
“A”: ECM “M”: CKP sensor “P”: STP sensor “S”: Speed sensor
“K”: Fuel pump relay “N”: ECT sensor “Q”: Fuel injector “T”: Speedometer
“L”: GP switch “O”: IAP #2/TP/IAT sensor “R”: Fuel pump
