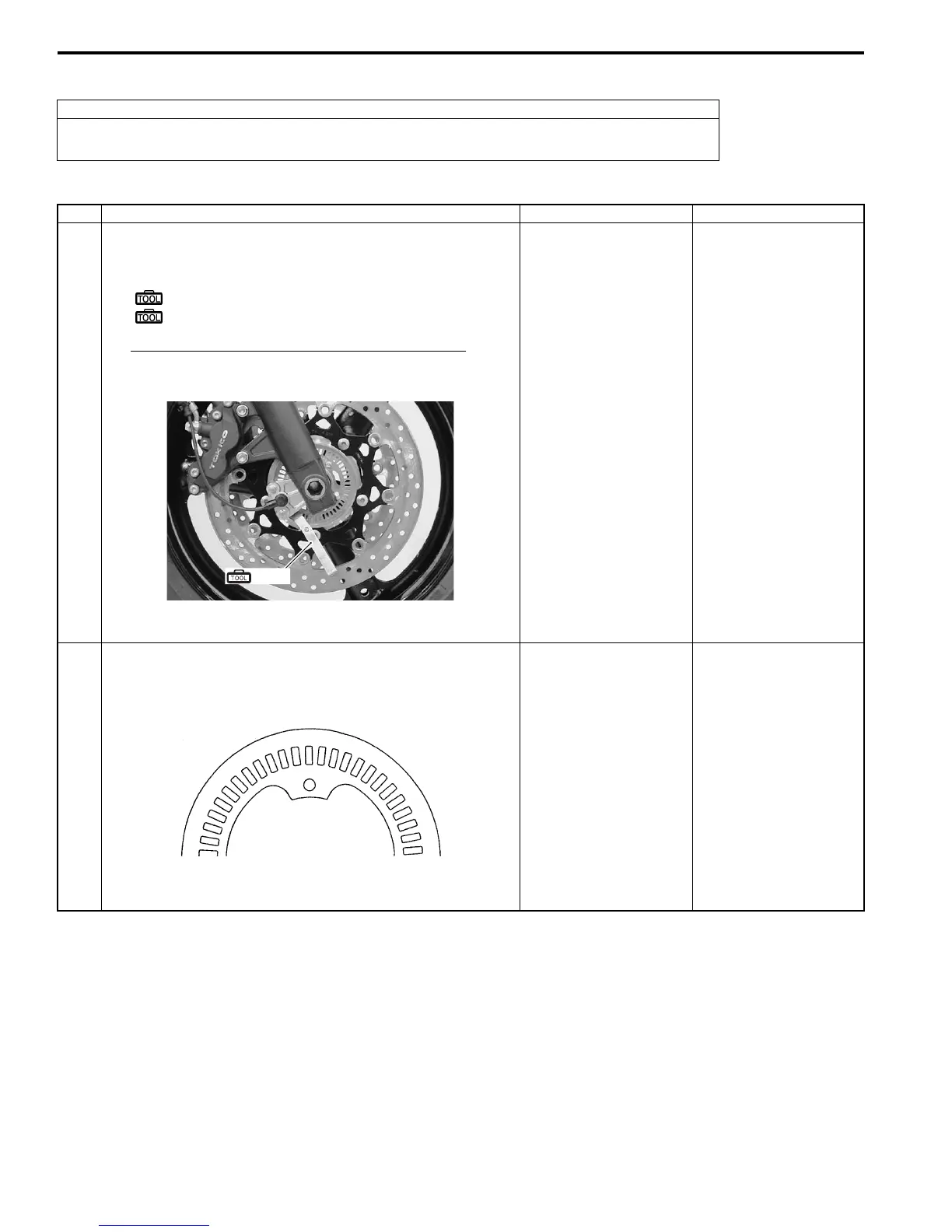

4E-35 ABS:
DTC “13” (C1613): Wheel Speed Sensor Rotor Malfunction (F)
B817H24504009
Troubleshooting
Possible Cause
• Front wheel speed sensor rotor distortion
• Faulty front wheel speed sensor or wiring discontinuity, etc.
Step Action Yes No
1 1) Inspect the clearance between the front wheel speed
sensor and sensor rotor using the thickness gauge.
Special tool
(A): 09900–20803 (Thickness gauge)
(B): 09900–20806 (Thickness gauge)
Wheel speed sensor – sensor rotor clearance
0.3 – 1.5 mm (0.012 – 0.059 in)
Is the clearance OK?
Go to Step 2. Adjust the clearance.
2 1) Inspect the front wheel speed sensor rotor for damage
and check that no foreign objects are caught in the rotor
openings.
Is the sensor rotor OK?
Go to Step 3. Clean or replace the
sensor rotor.
(A), (B)
I717H2450009-01
I718H1450064-01
To Next Page
