Suzuki GSF650A - Turn Signal Light Bulb Replacement; Reflex Refractor Construction (GSF650;S;A;SAK7)

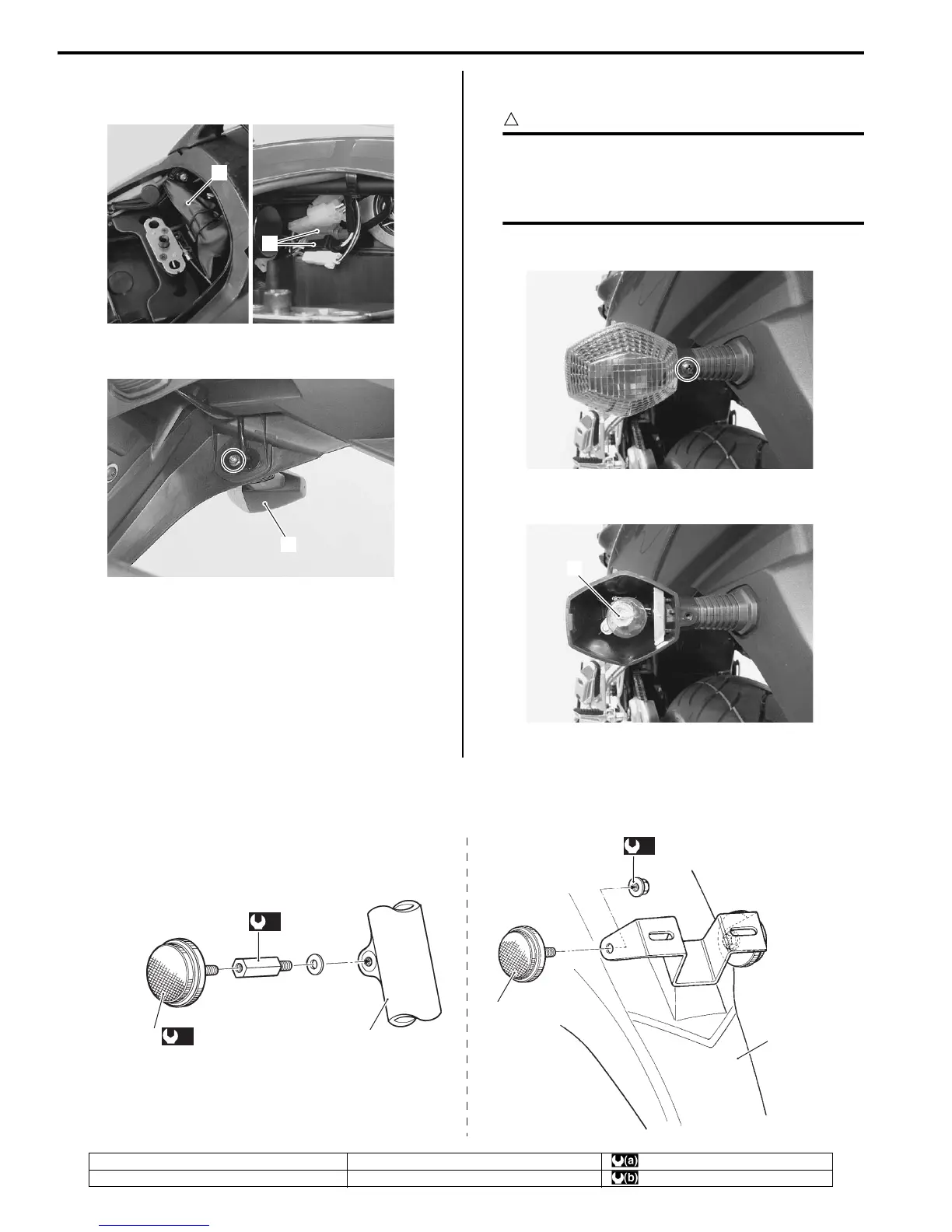

9B-9 Lighting Systems:
2) Remove the tool set (1) and disconnect the turn
signal light coupler (RH: Black, LH: Gray) (2).
3) Remove the turn signal light (3) by removing the nut.
Installation
Install the rear turn signal light in the reverse order of
removal.
Turn Signal Light Bulb Replacement
B817H29206016
CAUTION
!
If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent premature
bulb failure.
1) Remove the lens by removing the screw.
2) Replace the bulb (1).
3) Reinstall the lens.
Reflex Refractor Construction (GSF650/S/A/SAK7)
B817H29206017
1
2
I717H1920009-01
3
I718H1920029-02
I718H1920030-01
1
I718H1920031-01
(a)
1
(a)
(b)
2
3
4
I718H1920044-05
1. Front reflex refractor (For E-28) 3. Rear reflex refractor (For E-28) : 1.8 N⋅m (0.18 kgf-m, 1.3 lb-ft)
2. Front fork 4. Rear fender : 4.5 N⋅m (0.45 kgf-m, 3.25 lb-ft)
