Suzuki GSF650A - Repair Instructions; Starter Motor Components

1I-3 Starting System:
Repair Instructions

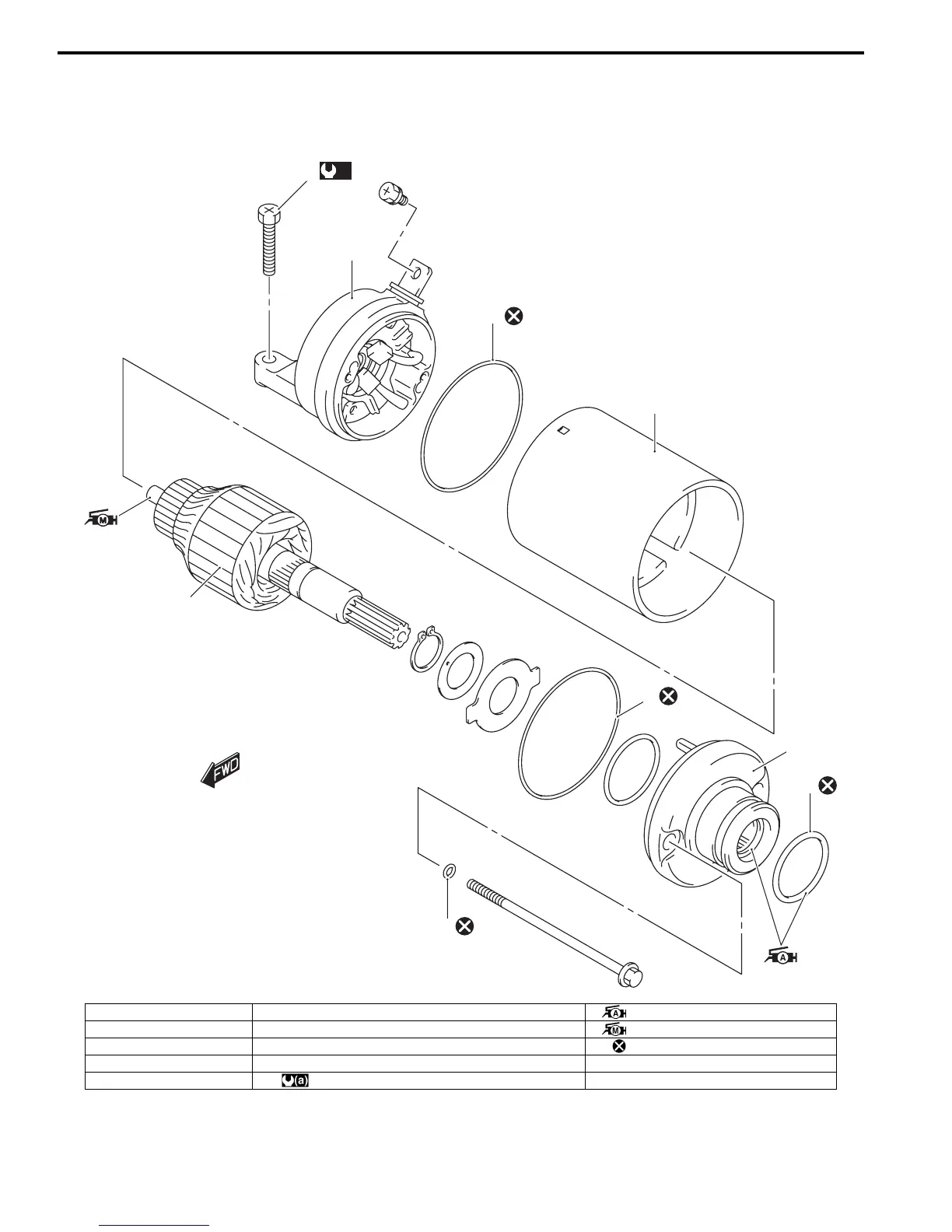

Starter Motor Components
B817H21906001
(a)
9
8
6
1
7
2
3
4
5
I717H1190026-03
1. O-ring 6. Starter motor case : Apply grease to sliding surface.
2. Housing end (Inside) 7. O-ring : Apply moly past to sliding surface.
3. O-ring 8. Housing end assembly (Outside) : Do not reuse.
4. O-ring 9. Starter motor lead wire nut
5. Armature : 5 N⋅m (0.5 kgf-m, 3.5 lb-ft)
