Suzuki GSF650A - Headlight Removal and Installation (GSF650; S;A;SAK7); Headlight Bulb Replacement (GSF650;S;A; SAK7)

Lighting Systems: 9B-2

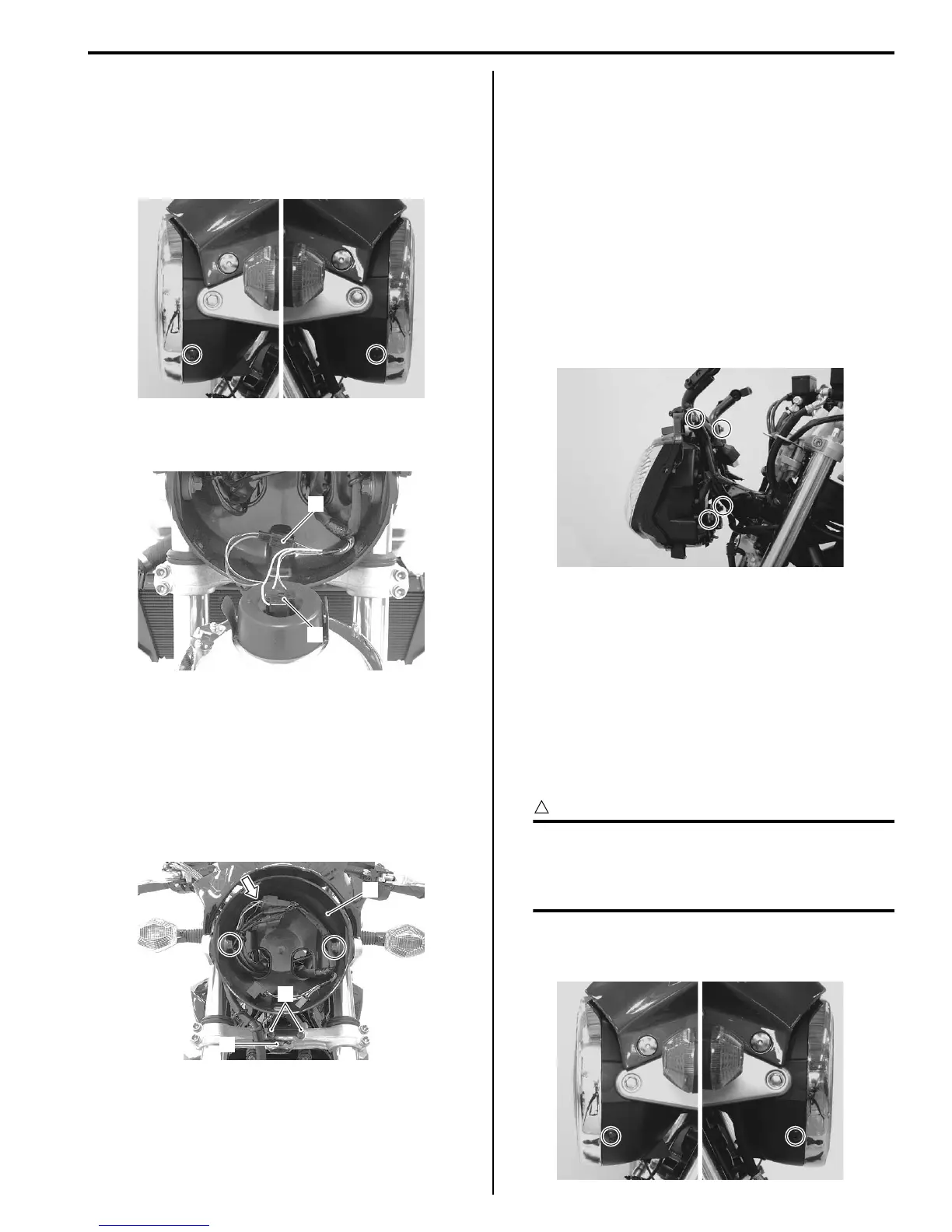

Headlight Removal and Installation (GSF650/S/
A/SAK7)
B817H29206003
GSF650/AK7
Removal
1) Removal the headlight mounting screws.
2) Disconnect the headlight coupler (1) and position
light coupler (2).
3) Remove the front brake hose clamp bolt (3)
(GSF650/AK7).
4) Remove the headlight beam vertical adjuster plate
mounting bolts (4).
5) Disconnect the respective couplers and remove the
headlight housing (5).
GSF650/AK7
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• After installing, be sure to inspect the headlight beam.
Refer to “Headlight Beam Adjustment (GSF650/S/A/
SAK7) (Page 9B-4)”.
GSF650S/SAK7
Removal
1) Remove the cowling. Refer to “Exterior Parts
Removal and Installation (GSF650/S/A/SAK7) in
Section 9D (Page 9D-6)”.
2) Disconnect the headlight and position light couplers.
3) Remove the headlight assembly.
Installation
Installation is in the reverse order of removal. Pay
attention to the following point:
• After installing, be sure to inspect the headlight beam.
Refer to “Headlight Beam Adjustment (GSF650/S/A/
SAK7) (Page 9B-4)”.
Headlight Bulb Replacement (GSF650/S/A/
SAK7)
B817H29206004
CAUTION
!
If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent premature
bulb failure.
GSF650/AK7
1) Remove the headlight mounting screws.
I718H1920006-01
1
2
I718H1920007-01
4
3
5
I717H1920001-01
I717H1920002-01
I718H1920006-01
