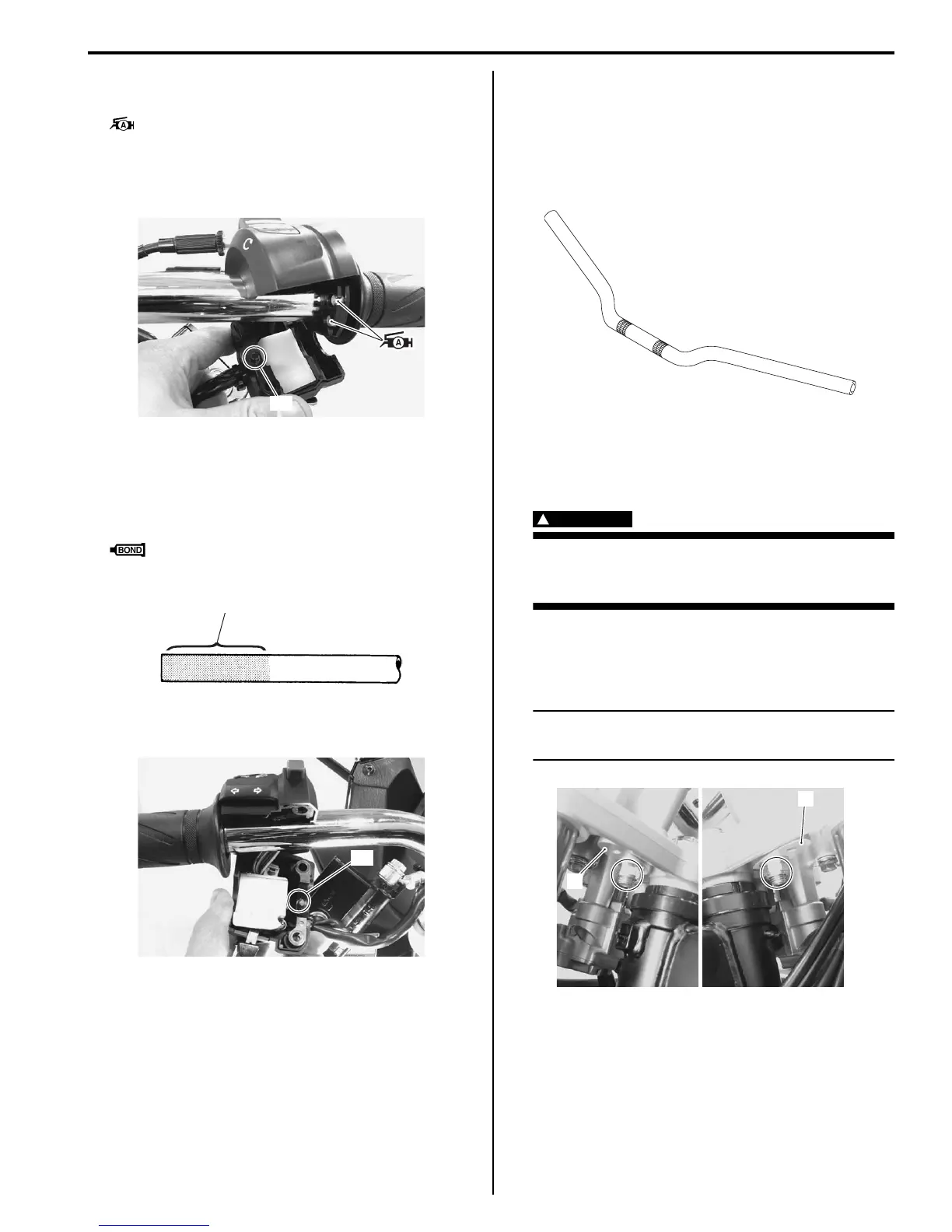

Steering / Handlebar: 6B-4
• Apply SUZUKI SUPER GREASE to the end of the
throttle cables and cable pulley.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Insert the projection “C” of the right handlebar switch
box into the hole of the handlebars.
• Install the front brake master cylinder. Refer to “Front
Brake Master Cylinder Assembly Removal and
Installation in Section 4A (Page 4A-9)”.
• Apply a handle grip bond “D” onto the left handlebar
before installing the handlebar grip.
: Handle grip bond (Handle Grip Bond
(commercially available))
• Insert the projection “D” of the left handlebar switch
box into the hole of the handlebars.
• Install the clutch master cylinder. Refer to “Clutch
Master Cylinder Assembly Removal and Installation in
Section 5C (Page 5C-6)”.
• After installing the steering, the following adjustments
are required before driving.
– Cable routing (Refer to “Throttle Cable Routing
Diagram (GSF650/S/A/SAK7) in Section 1D
(Page 1D-2)”.)
– Throttle cable play (Refer to “Throttle Cable Play
Inspection and Adjustment in Section 0B (Page 0B-
14)”.)
Handlebars Inspection
B817H26206004
Refer to “Handlebars Removal and Installation
(Page 6B-3)”.
Inspect the handlebars for distortion and damage.
If any defect is found, replace the handlebars with a new
one.
Handlebar Height Adjustment
B817H26206005
Handlebars height adjustment in the following
procedures:
WARNING
!
Operation with an improperly adjusted
handlebars or incorrectly routed cables
could result in an unsafe riding condition.
1) Remove the handlebar holder set nuts and
handlebar spacers (1), left and right.
2) Dismount the handlebars.
NOTE
Place a rag on the fuel tank to prevent the
fuel tank scratched.
“C”
I717H1620005-01
“D”
I649G1620008-03
“D”
I717H1620007-02
I649G1620010-03
1
1
I717H1620008-01
