Suzuki GSF650A - Rear Wheel Assembly Construction (GSF650;S;U;SUK7)

Wheels and Tires: 2D-10

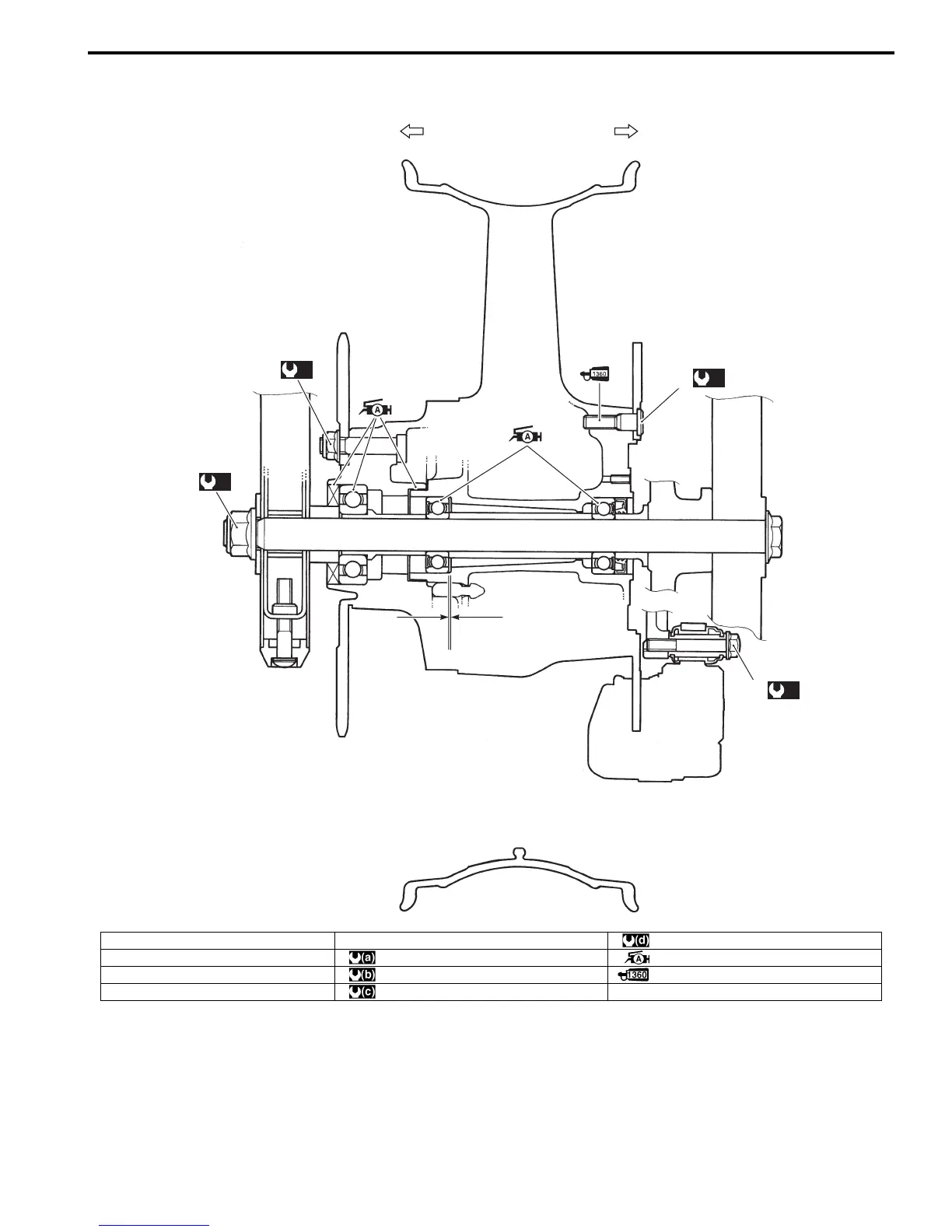

Rear Wheel Assembly Construction (GSF650/S/U/SUK7)
B817H22406007
Left Right
(d)
4
(b)
2
(a)
1
(c)
3
“a”
I717H1240022-01
1. Rear sprocket nut “a”: Clearance : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Rear axle nut : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft) : Apply grease.
3. Brake caliper mounting bolt : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft) : Apply thread lock to thread part.
4. Brake disc bolt : 22 N⋅m (2.2 kgf-m, 16.0 lb-ft)
