Suzuki GSF650A - Diagnostic Information and Procedures; Drive Chain and Sprocket Symptom Diagnosis; Repair Instructions; Drive Chain Related Components

Drive Chain / Drive Train / Drive Shaft: 3A-1
Driveline / Axle
Drive Chain / Drive Train / Drive Shaft
Diagnostic Information and Procedures
Drive Chain and Sprocket Symptom Diagnosis
B817H23104001
Repair Instructions
Drive Chain Related Components
B817H23106001
Condition Possible cause Correction / Reference Item
Noisy Drive Chain Worn sprocket. Replace.
Worn drive chain. Replace.
Stretched drive chain. Replace.
Too large drive chain slack. Adjust.
Drive chain out of adjustment. Adjust.
8
7
6
5
4
1
3
(b)
2
(a)
I717H1310032-03

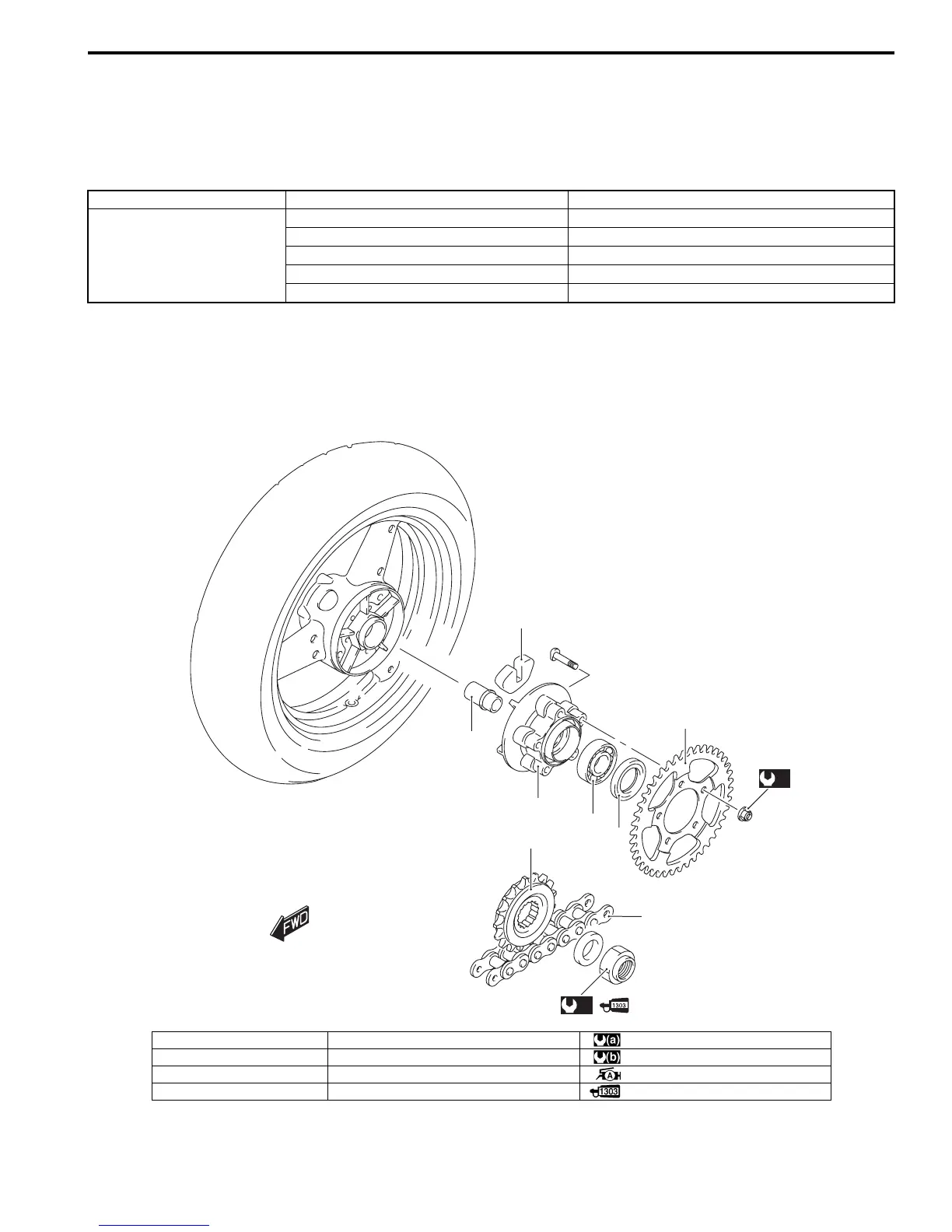

1. Engine sprocket 5. Bearing : 115 N⋅m (11.5 kgf-m, 83.0 lb-ft)
2. Drive chain 6. Sprocket mounting drum : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
3. Rear sprocket 7. Retainer : Apply grease.
4. Dust seal 8. Wheel damper : Apply thread lock to thread part.
