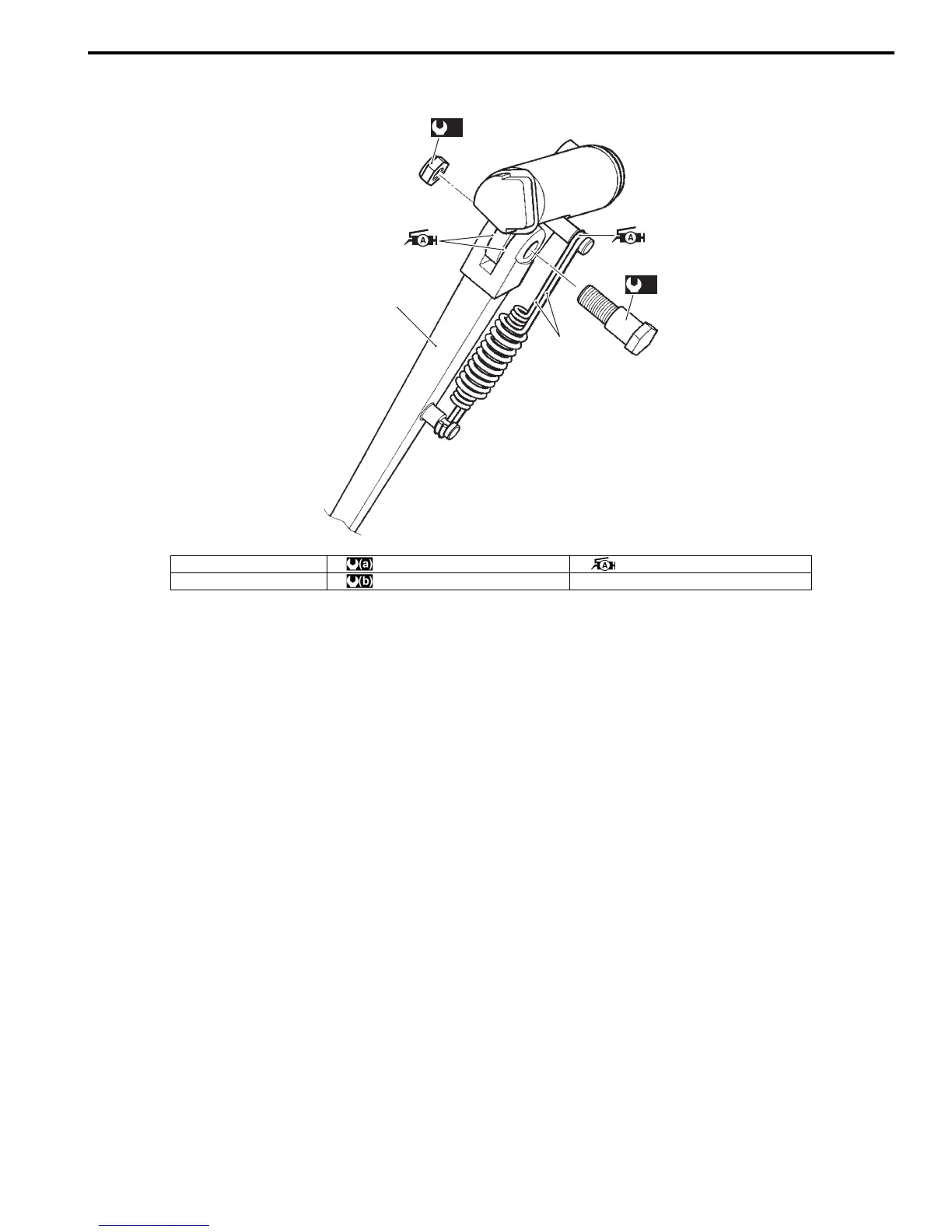

Side-stand Construction
B817H29506005
Side-stand Removal and Installation
B817H29506006
Removal
1) Support the motorcycle with the center stand.
2) Remove the side-stand as shown in the side-stand construction. Refer to “Side-stand Construction (Page 9E-3)”.
Installation
Install the side-stand as shown in the side-stand construction. Refer to “Side-stand Construction (Page 9E-3)”.
1. Side-stand : 50 N⋅m (5.0 kgf-m, 36.0 lb-ft) : Apply grease to sliding surface.
2. Spring : 40 N⋅m (4.0 kgf-m, 29.0 lb-ft)
(b)
(a)
2
1
