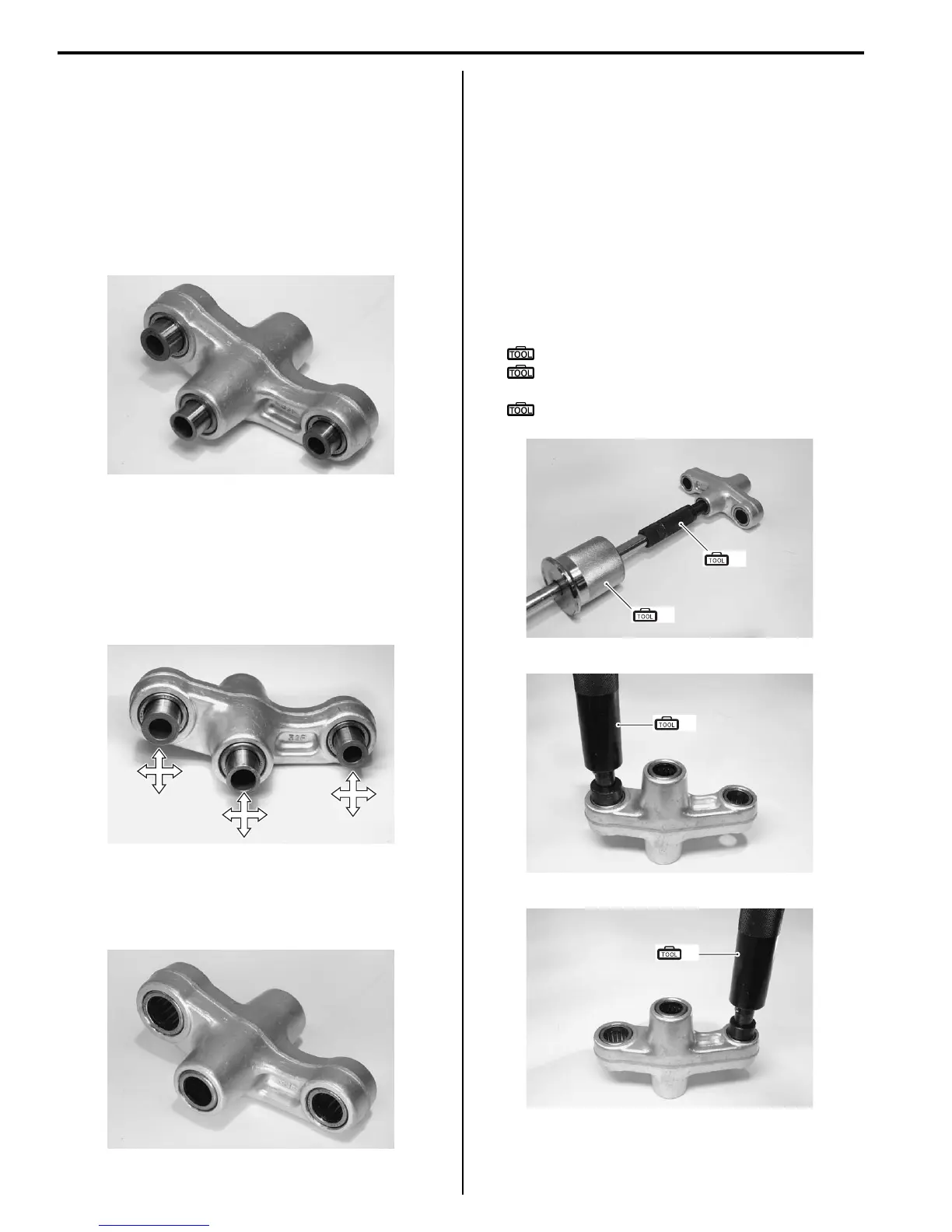

2C-7 Rear Suspension:
Cushion Lever Inspection
B817H22306009
Refer to “Cushion Lever Removal and Installation
(Page 2C-6)”.
Spacer
1) Remove the spacers from the cushion lever.
2) Inspect the spacers for any flaws or other damage. If
any defects are found, replace the spacers with new
ones.
Cushion Lever Bearing
1) Insert the spacers into bearings.
2) Check the play by moving the spacers up and down.
If excessive play is noted, replace the bearing with a
new one. Refer to “Cushion Lever Bearing Removal
and Installation (Page 2C-7)”.
Cushion Lever
Inspect the cushion lever for damage. If any defect is
found, replace the cushion lever with a new one.
Cushion Rod
Refer to “Swingarm Related Parts Inspection (Page 2C-
10)”.
Cushion Lever Bearing Removal and
Installation
B817H22306010
Removal
1) Remove the cushion lever. Refer to “Cushion Lever
Removal and Installation (Page 2C-6)”.
2) Remove the cushion lever bearings using the special
tools.
Special tool
(A): 09923–73210 (Bearing remover)
(B): 09930–30104 (Rotor remover sliding
shaft)
(C): 09913–70210 (Bearing installer set)
I718H1230009-01
I718H1230010-01
I718H1230011-01
(A)
(B)
I718H1230012-01
(C)
I718H1230013-01
(C)
I718H1230015-01
