Suzuki GSF650A - Repair Instructions; Front Wheel Components (GSF650;S;U;SUK7)

Wheels and Tires: 2D-2
Repair Instructions

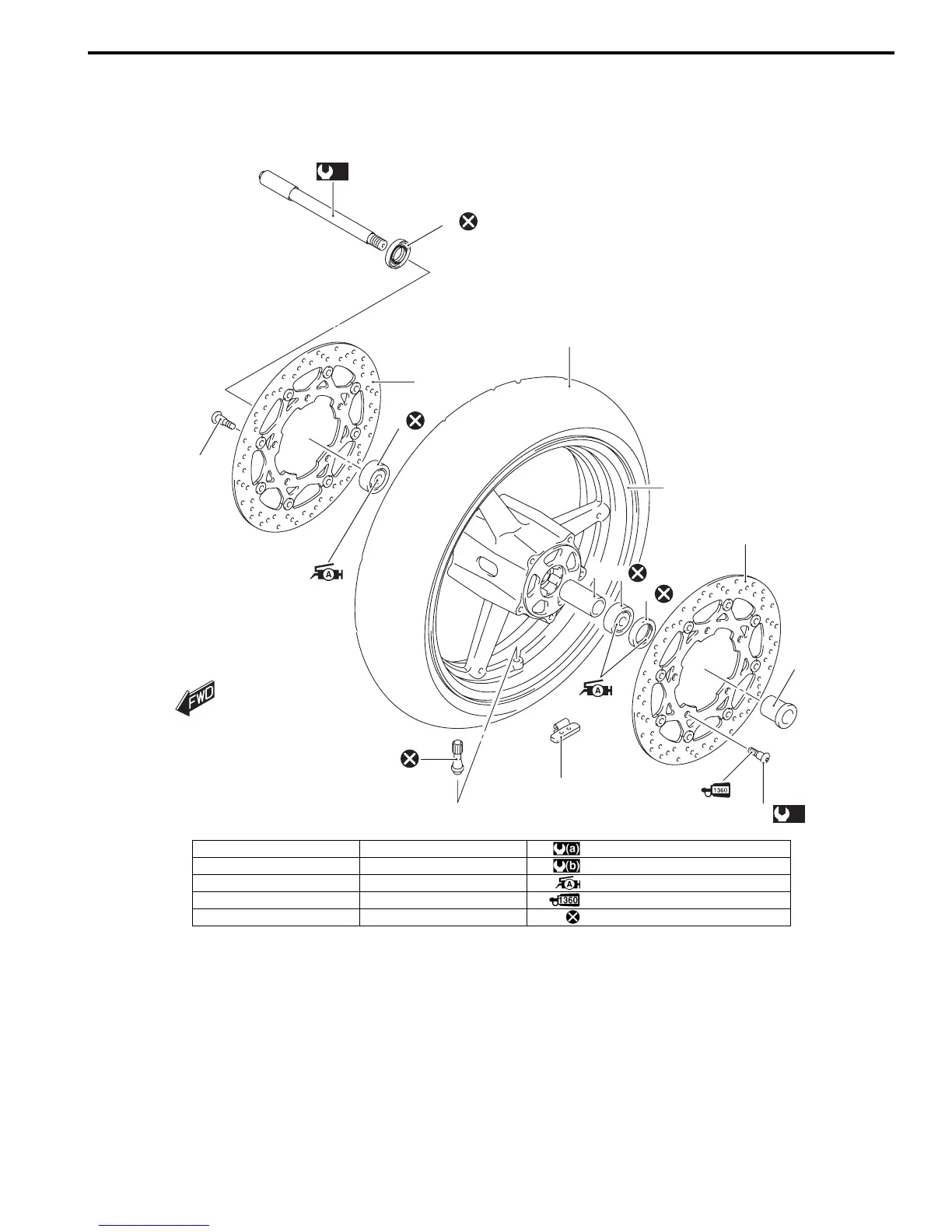

Front Wheel Components (GSF650/S/U/SUK7)
B817H22406001
(a)
8
3
4
2
10
1
5
4
6
3
9
(b)
2
7
6
I717H1240040-04
1. Front axle 6. Dust seal : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
2. Brake disc bolt 7. Collar : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Brake disc 8. Tire : Apply grease.
4. Bearing 9. Wheel balancer : Apply thread lock to thread part.
5. Spacer 10. Air valve : Do not reuse.
