Suzuki GSF650A - Clutch Control System Components; Clutch Master Cylinder Assembly Removal and Installation

Clutch: 5C-6

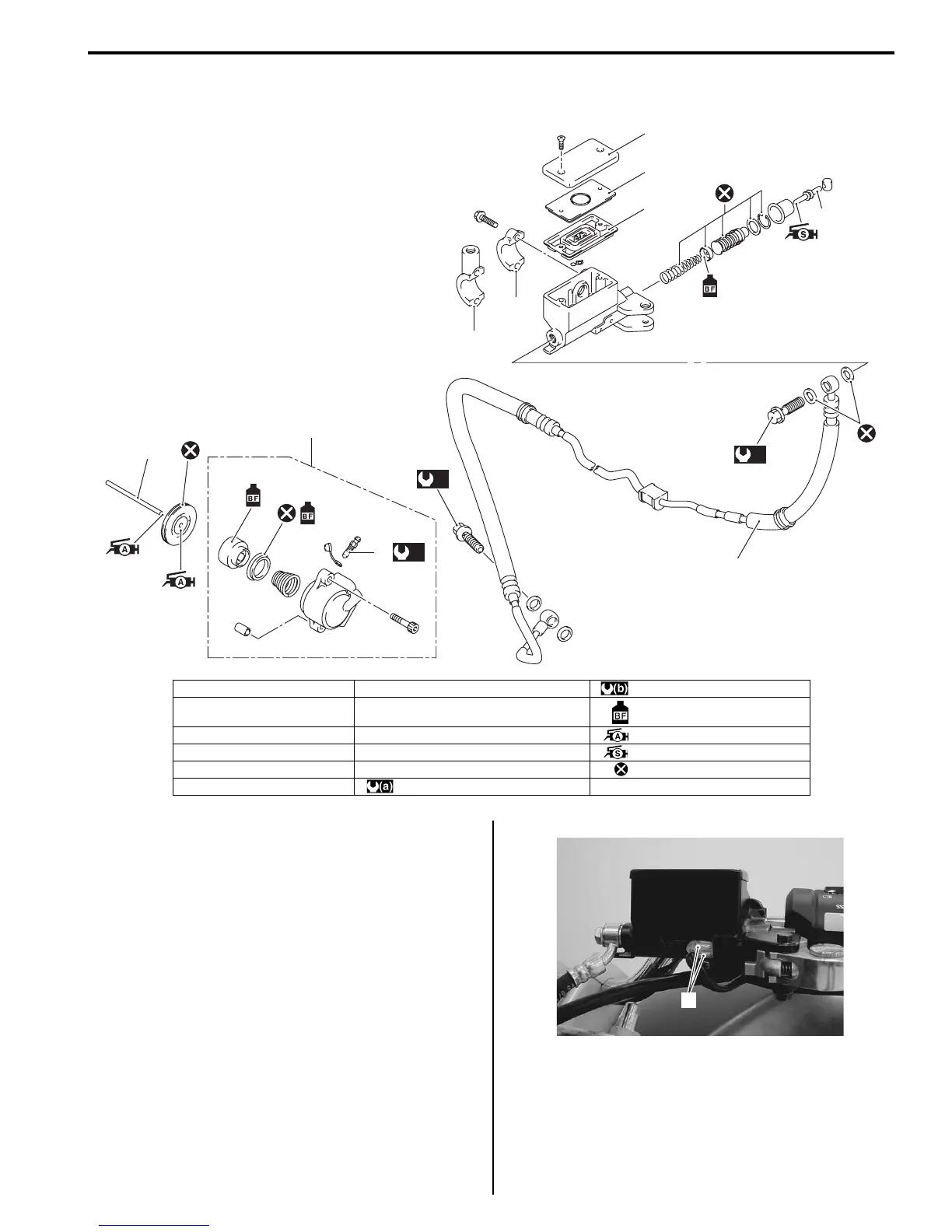

Clutch Control System Components
B817H25306007
Clutch Master Cylinder Assembly Removal and
Installation
B817H25306008
Removal
1) Drain clutch fluid. Refer to “Clutch Fluid
Replacement (Page 5C-4)”.
2) Disconnect the clutch lever position switch lead
wires (1).
5
6
4
2
1
[A]
[B]
(a)
3
(a)
(b)
9
7
8
I718H1530065-02
1. Push rod 7. Push rod : 6 N⋅m (0.6 kgf-m, 4.5 lb-ft)
2. Piston/Cup set 8. Clutch release cylinder set : Apply brake fluid.
3. Clutch hose 9. Air bleeder : Apply grease.
4. Reservoir cap [A]: For GSF650 : Apply silicone grease.
5. Plate [B]: For GSF650S : Do not reuse.
6. Diaphragm : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
1
I717H1530030-01
