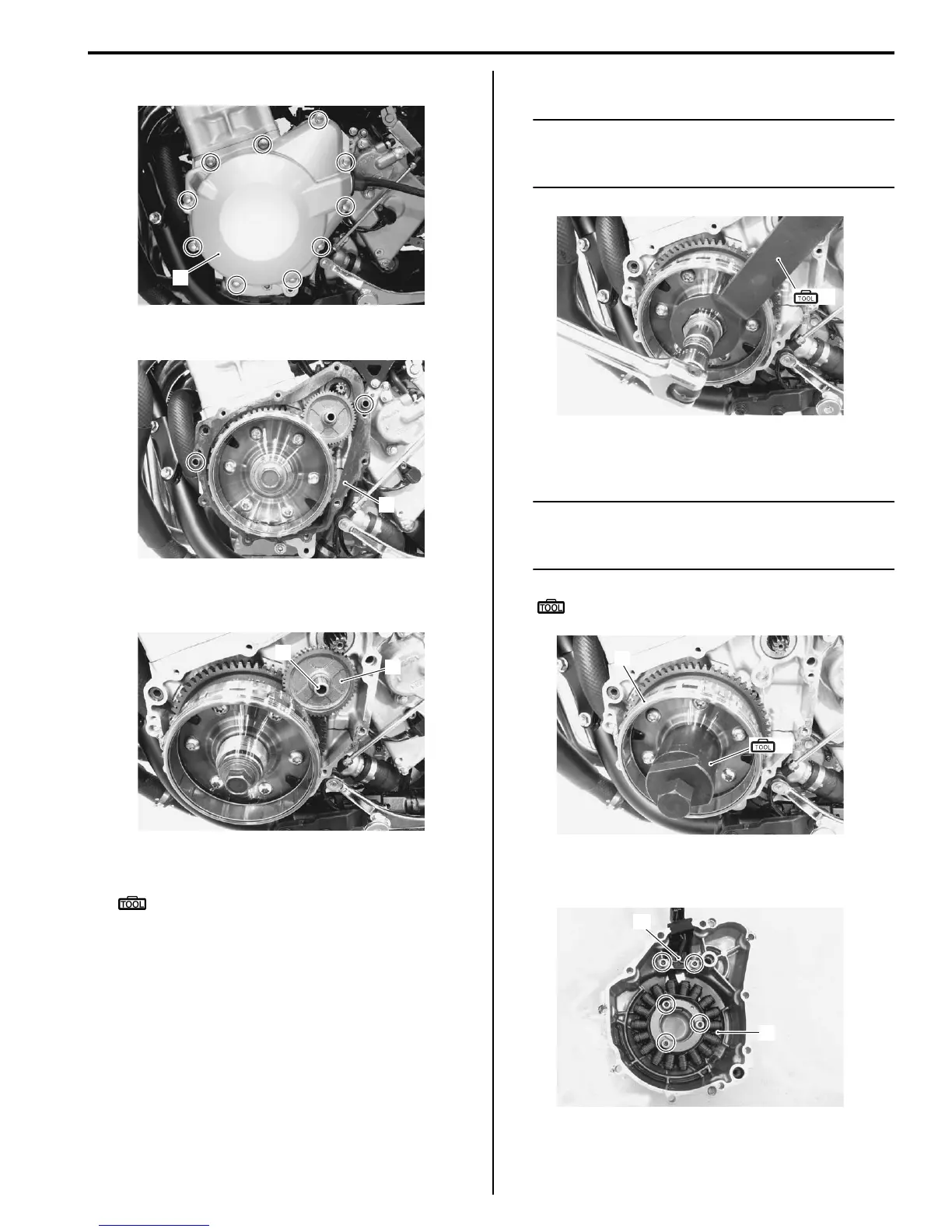

Suzuki GSF650A - Page 367

Charging System: 1J-5
4) Remove the generator cover (4).
5) Remove the gasket (5) and dowel pins.
6) Remove the idle gear shaft (6) and starter idle gear
(7).
7) Hold the generator rotor with the special tool.
Special tool
(A): 09930–44530 (Rotor holder)
8) Loosen the generator rotor bolt.
NOTE
When loosen the rotor bolt, do not remove it.
The rotor bolt is used in conjunction with the
rotor remover when removing the rotor.
9) Remove the generator rotor assembly (8) with the
special tool.
NOTE
Remove the starter clutch if necessary. Refer
to “Starter Clutch Removal and Installation in
Section 1I (Page 1I-10)”.
Special tool
(B): 09930–34970 (Rotor remover set)
10) Remove the generator stator (9) along with the CKP
sensor (10).
4
I717H11A0004-01
5
I717H11A0005-01
6
7
I717H11A0006-01
(A)
I717H11A0007-01
(B)
8
I717H11A0008-01
9
10
I717H11A0009-01
