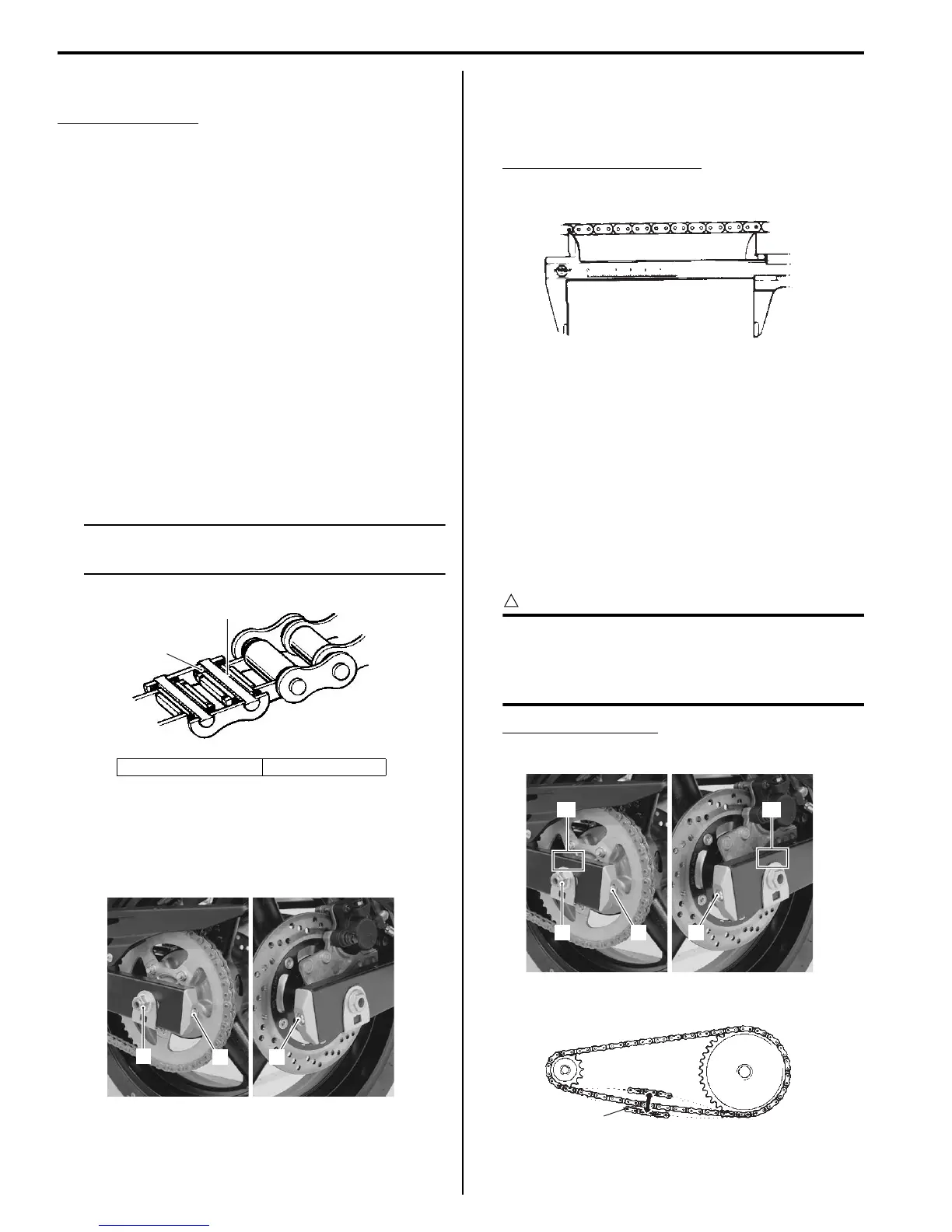

0B-17 Maintenance and Lubrication:
Drive Chain Inspection and Adjustment
B817H20206016
Inspect drive chain
Initially at 1 000 km (600 miles, 2 months) and every
6 000 km (4 000 miles, 12 months) thereafter.
Drive Chain Visual Check
1) With the transmission in neutral, support the
motorcycle using the center-stand and turn the rear
wheel slowly by hand.
2) Visually check the drive chain for the possible
defects listed as follows. If any defects are found, the
drive chain must be replaced. Refer to “Drive Chain
Replacement in Section 3A (Page 3A-7)”.
• Loose pins
• Damaged rollers
• Dry or rusted links
• Kinked or binding links
• Excessive wear
• Improper chain adjustment
• Missing O-ring seals
NOTE
When replacing the drive chain, replace the
drive chain and sprockets as a set.
Drive Chain Length Inspection
1) Loosen the axle nut (1).
2) Give tension to the drive chain fully by turning both
chain adjuster bolts (2).
3) Count out 21 pins (20 pitches) on the chain and
measure the distance between the two points. If the
distance exceeds the service limit, the chain must be
replaced.
Drive chain 20-pitch length
Service limit: 323.8 mm (12.75 in)
4) After finishing the drive chain length inspection,
adjust the drive chain slack.
Drive Chain Slack Adjustment
1) Place the motorcycle on its center stand for accurate
adjustment.
2) Loosen the axle nut (1).
3) Loosen or tighten both chain adjuster bolts (2) until
there is 20 – 30 mm (0.8 – 1.2 in) “a” of slack at the
middle of the chain between the engine and rear
sprockets as shown.
CAUTION
!
The reference marks “A” on both sides of the
swingarm and the edge of each chain
adjuster must be aligned to ensure that the
front and rear wheels are correctly aligned.
Drive chain slack “a”
Standard 20 – 30 mm (0.8 – 1.2 in)
1. O-ring seal 2. Grease
2
1
I649G1020032-02
1
2 2
I717H1020017-02
123 1920
21
I649G1020034-02
1
2 2
“A” “A”
I717H1020018-02
“a”
I649G1020036-02
