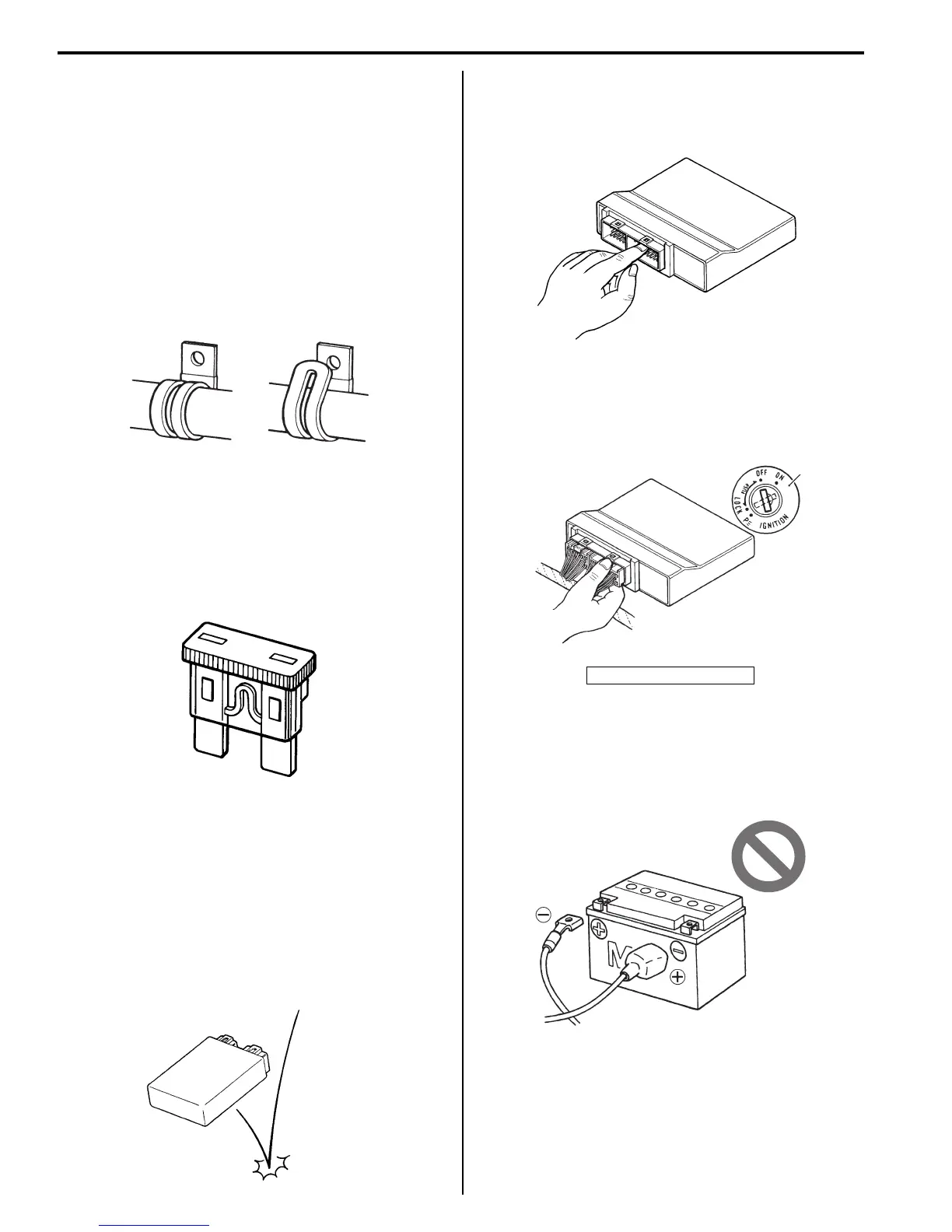

00-3 Precautions:
Clamp
• Clamp the wire harness at such positions as indicated
in “Wiring Harness Routing Diagram (GSF650/S/A/
SAK7) in Section 9A (Page 9A-8)”.
• Bend the clamp properly so that the wire harness is
clamped securely.
• In clamping the wire harness, use care not to allow it
to hang down.
• Do not use wire or any other substitute for the band
type clamp.
Fuse
• When a fuse blows, always investigate the cause to
correct it and then replace the fuse.
• Do not use a fuse of a different capacity.
• Do not use wire or any other substitute for the fuse.
Switch
Never apply grease material to switch contact points to
prevent damage.
ECM / Various sensors
• Since each component is a high-precision part, great
care should be taken not to apply any sharp impacts
during removal and installation.
• Be careful not to touch the electrical terminals of the
electronic parts (ECM, etc.). The static electricity from
your body may damage these.
• When disconnecting and connecting the coupler,
make sure to turn OFF the ignition switch, or
electronic parts may get damaged.
Battery
• Battery connection in reverse polarity is strictly
prohibited. Such a wrong connection will damage the
components of the FI system instantly when reverse
power is applied.
CORRECT INCORRECT
I718H1000001-02
I649G1000001-02
I310G1000007-01
1. Ignition switch
I310G1000008-01
1
I649G1000031-02
I718H1000004-01
