Engine General Information and Diagnosis: 1A-14

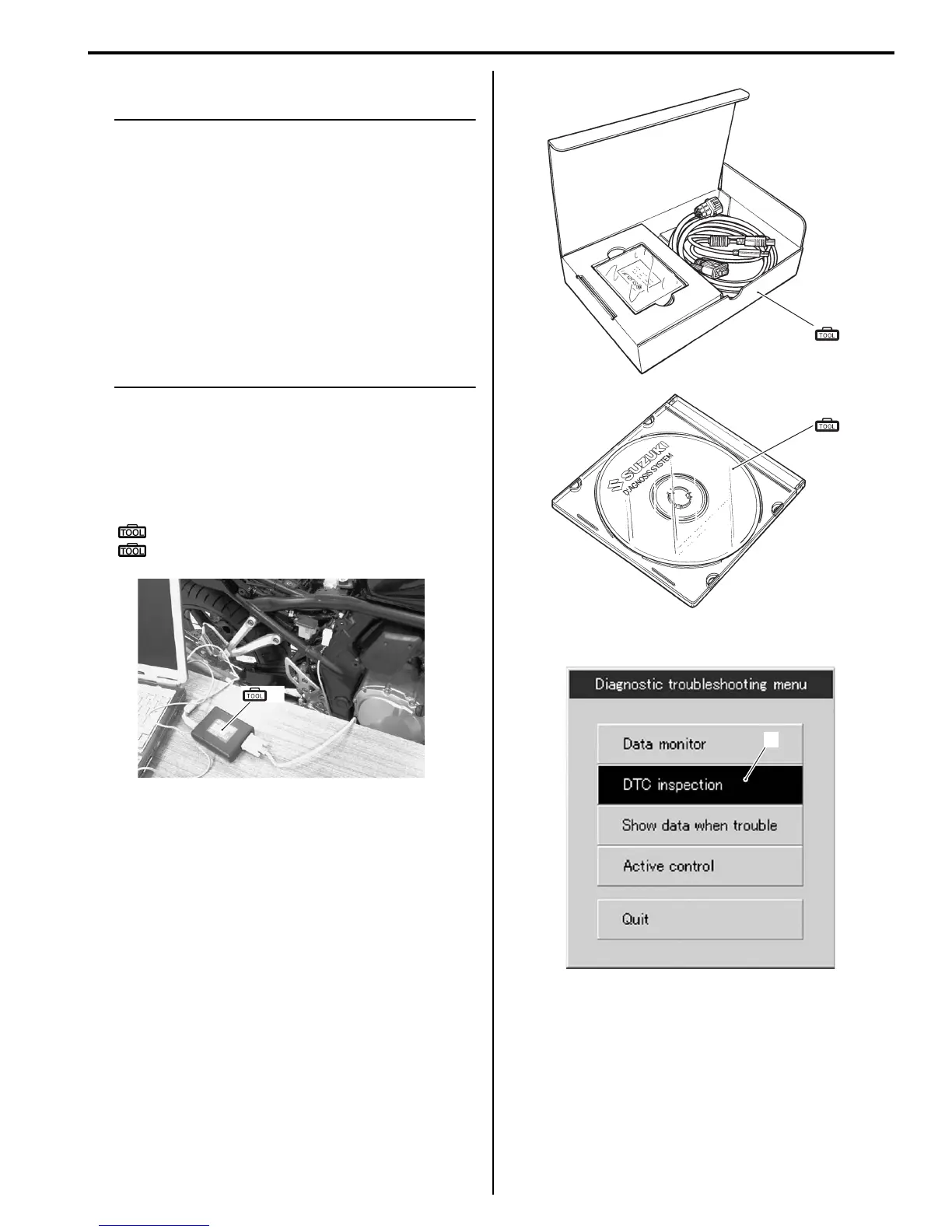

Use of SDS
NOTE
• Do not disconnect the coupler from ECM,
the battery cable from the battery, ECM
ground wire harness from the engine or
main fuse before confirming DTC
(Diagnostic Trouble Code) stored in
memory. Such disconnection will erase the
memorized information in ECM memory.
• DTC stored in ECM memory can be
checked by the SDS.
• Be sure to read “Precautions for Electrical
Circuit Service in Section 00 (Page 00-2)”
before inspection and observe what is
written there.
1) Remove the right frame cover. Refer to “Exterior
Parts Removal and Installation (GSF650/S/A/SAK7)
in Section 9D (Page 9D-6)”.
2) Set up the SDS tools. (Refer to the SDS operation
manual for further details.)
Special tool
(A): 09904–41010 (SDS Set)
(B): 99565–01010–010 (CD-ROM Ver.10)
3) Click the DTC inspection button (1).
(A)
I717H1110007-01
(A)
(B)
I705H1110116-03
1
I705H1110003-01
To Next Page
