Engine General Information and Diagnosis: 1A-18
1) Remove the right frame cover. Refer to “Exterior Parts Removal and Installation (GSF650/S/A/SAK7) in Section
9D (Page 9D-6)”.
2) Set up the SDS tool. (Refer to the SDS operation manual for further details.)
Special tool
: 09904–41010 (SDS set)
: 99565–01010–010 (CD-ROM Ver.10)

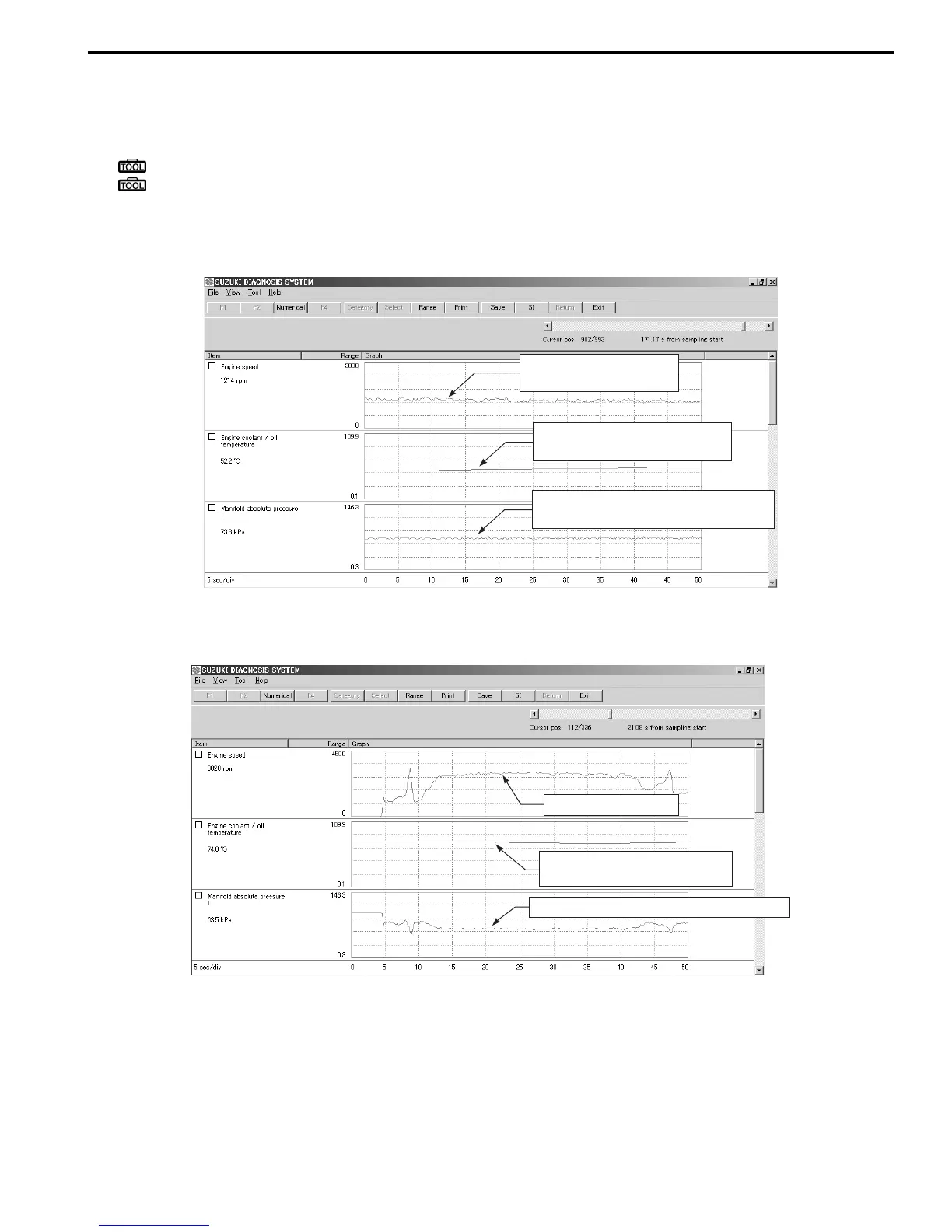

Sample
Data sampled from cold starting through warm-up
Data at 3 000 r/min under no load
Check the engine r/min.
1 200 r/min.
Check the water temperature.
50 ˚C and more
Check the manifold absolute pressure.
XXX kPa
I718H1110149-01
Check the manifold absolute pressure #1.
Check the water temperature.
XX ˚C
Approx. 3 000 r/min.
I718H1110150-01
