ENGINE REMOVAL AND INSTALLATION 5-9

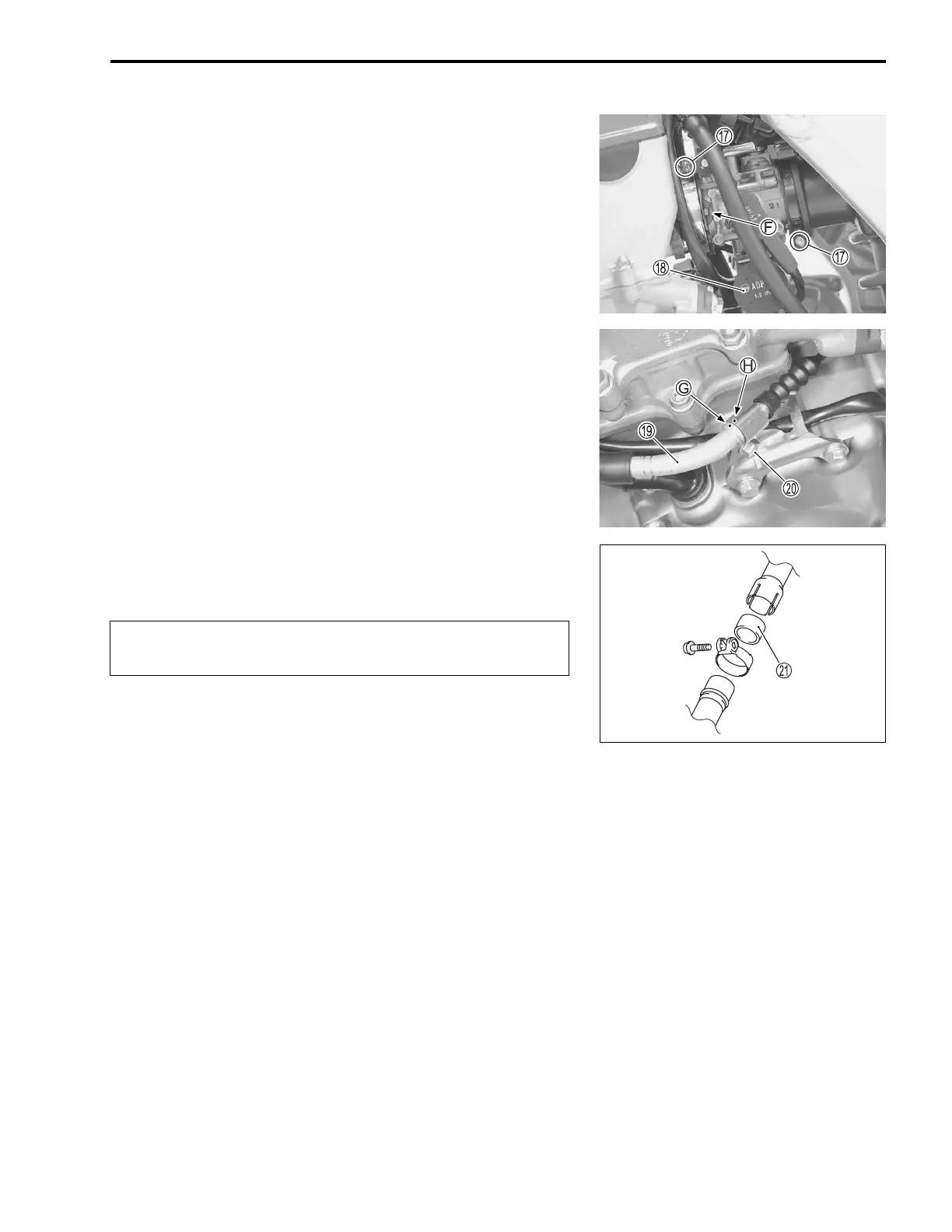

• Fit the projection F of the throttle body to the depression of
intake pipe.
• Position the clamps G correctly. (20-23)
• Install the condenser H.
• Align the matching mark G on the clutch cable I with the
matching mark H on the clutch cable bracket.
• Tighten the clutch cable bracket bolt J to the specified
torque.
Clutch cable bracket bolt: 6 N·m (0.6 kgf-m, 4.5 lbf-ft)
• Install the muffler joint connector K and exhaust pipe gasket
L.
NOTE:
When installing a new connector K, clean the exhaust pipe and
joint of the muffler.
Replace the connector K and gasket L with new ones
to prevent exhaust gas leakage.
