15
SV 200A User Manual
2 ASSEMBLING THE INSTRUMENT
2.1 RECOMMENDED ORDER OF ASSEMBLY
After unpacking, check the completeness of the set according to Chapter 2.2.
Note: It is advised to read Chapters 2.3 to 2.9 of the User Manual carefully before assembling.
Recommended order of installation:
1. pre-assembling of the SV 200A (see Chapter 2.3),
2. mounting the SV 200A (see Chapter 2.4),
3. power supply installation (see Chapter 2.7),
4. optional meteorological station installation (see Chapter 2.8),
5. arrangement of the cabling (see Chapter 2.9).
2.2 DELIVERED KIT
The kit delivered to the client consists of the following elements:
1. the SV 200A instrument includes next
permanently integrated elements:
integrated, non-removable
microphone preamplifier
built-in electrostatic actuator
triggered manually or in automatic
mode
Li-Ion rechargeable battery
16 GB micro SD card
3G modem
WLAN module
Bluetooth module
eCompass sensor
GPS receiver
control panel
4 x MEMS microphones.
2. and elements that can be
disconnected:
Microtech Gefell MK 255S,
50 mV/Pa, prepolarised ½”
condenser microphone
top cone with anti-bird spikes
microphone extension sleeve
microphone protective sleeve
microphone sealing hood
SA209 5” foam windscreen
3G antenna
WLAN antenna

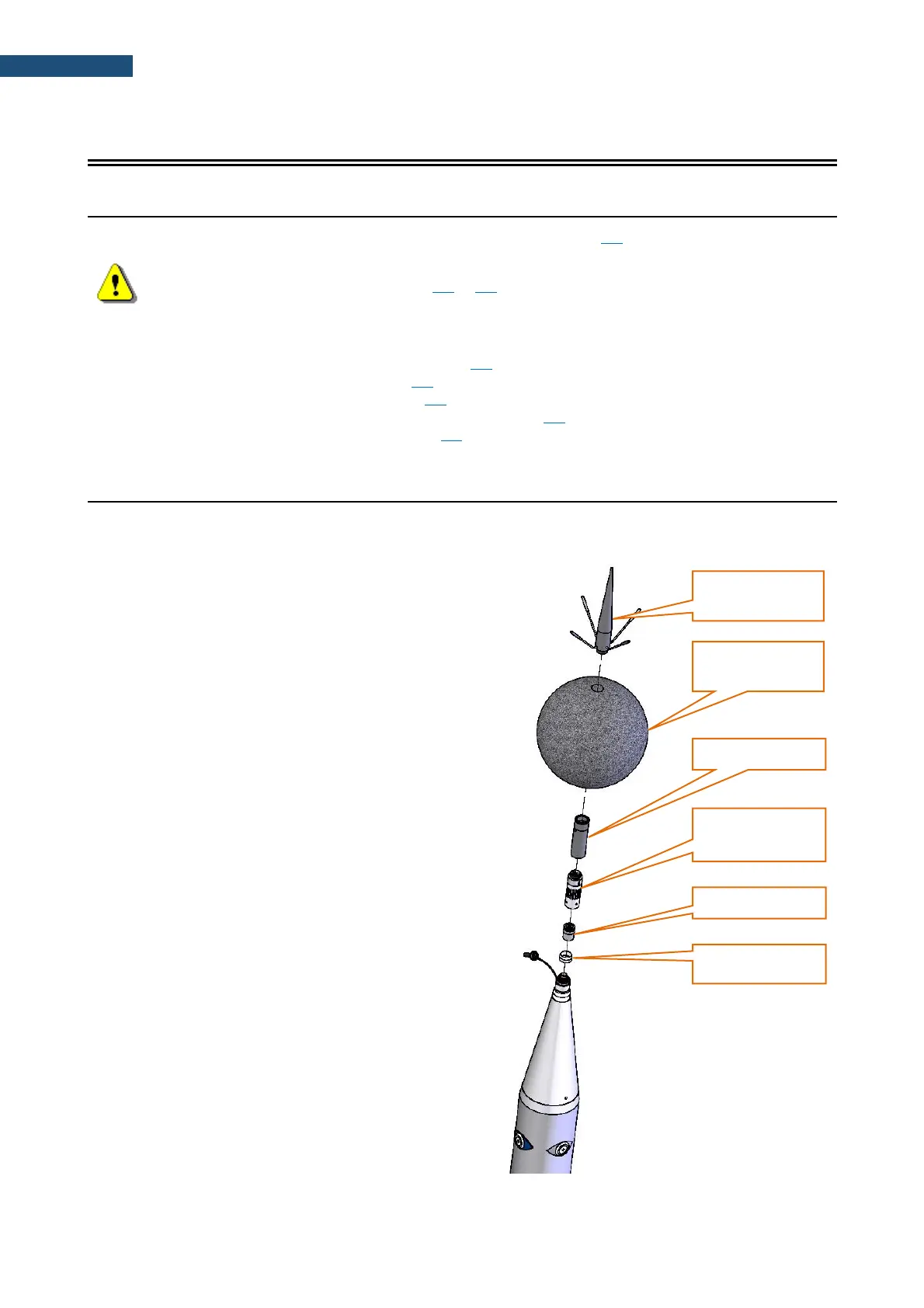

top cone with
anti-bird spikes
SA209 foam
windscreen
extension sleeve
microphone
protective sleeve
microphone
sealing hood
