2.4.2 Mounting on 3/8” thread
To mount SV 200A on the 3/8” thread use
the M14/
3/8”
adapter.
Note: Tripod or pole with 3/8” thread is not recommended for permanent installation.

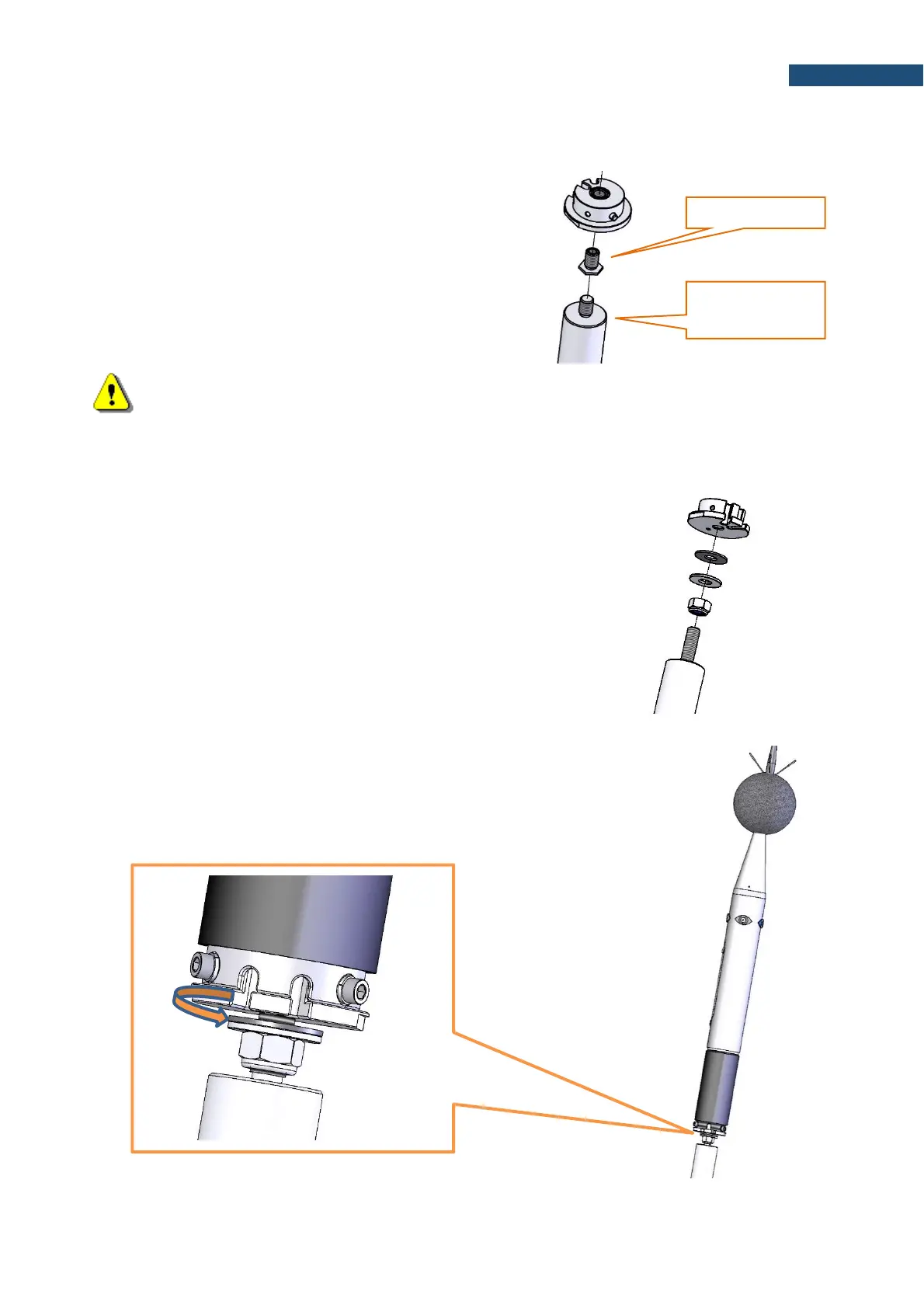

2.4.3 Mounting the SV200A station on the mast aligning to the North
Mast requirement: the length of the threaded bolt should be at
least 45 mm.
Additional elements: steel washer, rubber washer, prevailing
torque hex nut (with plastic insert).
Mounting method:
1. Screw the prevailing torque hex nut (plastic down),
apply a steel washer and a rubber washer.
2. Screw the base of the sleeve to the stop (resistance
will be on the screw of the sealer inside the base)
and unscrew it again by approx. 1 turn.
3. Mount the entire station on the base.
4. Position the station towards the North.
5. Tighten the prevailing torque hex nut to the stop (up
to the base), blocking the rotation of the station (with
the key placed on the base).
