The mounting described in this manual is based on the mast type systems, that are recommended by
Svantek.
Note: If other types of mounting than mounting on the mast is going to be applied, consult Svantek,
since only recommended type of mounting assures declared acoustical characteristics of the
station.
Coaxial mounting of the device on the mast Φ45 mm ended with a bolt M14 is recommended.
Note: The M14/
3/8
” adapter is intended for mounting SV 200A on photographic and light tripods. It
should not be used for unattended environmental monitoring.
Note: Make sure SB 274 power supply unit is not connected to mains before full system installation.

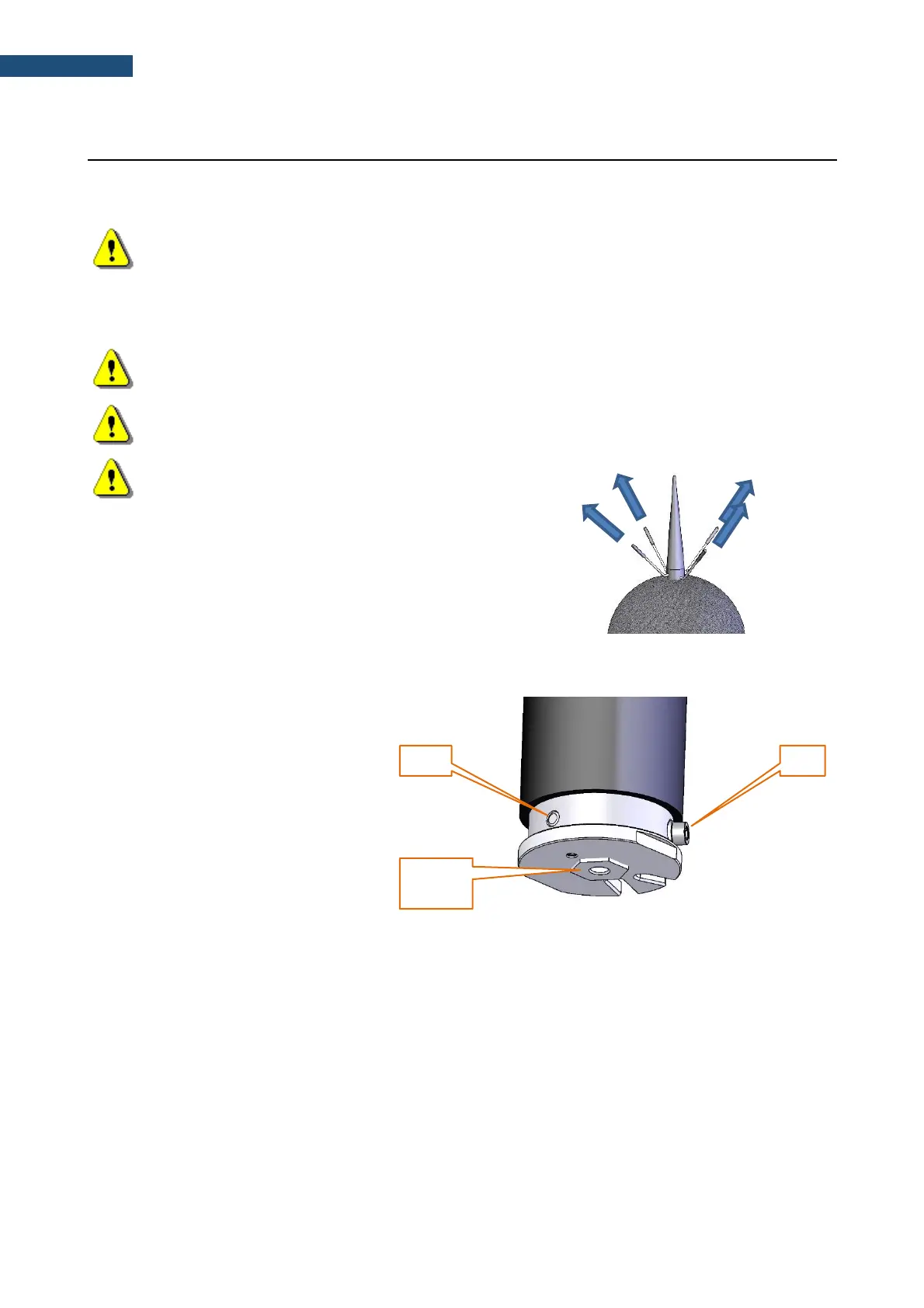

Note: Before installing the station at the
measurement site, make sure that the protective
caps on the four anti-bird spikes are removed.
It is recommended to use the protective caps
during transportation.
2.4.1 Mounting SV 200A on the mast
1. Unscrew two bolts attaching the
mounting sleeve to its bottom with
the 5mm Allen key.
2. Push the pin in the third hole in the
bottom using a longer arm of the
Allen key and take the bottom off the
sleeve.
3. If the mast has M14 thread unscrew
the M14/
3/8
” adapter from the bottom
of the mounting sleeve base using
the special 22 and 65 mm spanners.
M14/
3/8
”
adapter
M14/
3/8
”
adapter
