SV 200A User Manual
4. Remove the base out of the sleeve.
5. Remove the seal from the cylinder
pulling it by the grip.
6. Screw the base of the mounting
sleeve on the M14 thread of the
mast (if you use aligning to the North
set see Chapter 2.4.3).
7. If you don’t use aligning to the North
set tighten the bottom of the
mounting sleeve up with the special
open spanner 65 mm.
8. Make sure SV 200A is switched off.
9. Plug the power supply cable
connector in to the DC IN socket on
the connector panel.
10. Optionally, plug the lemo connector
of the USB, weather station or alarm
lamp cable into the MULTI I/O
socket on the connector panel.
11. Connect antenna(s).

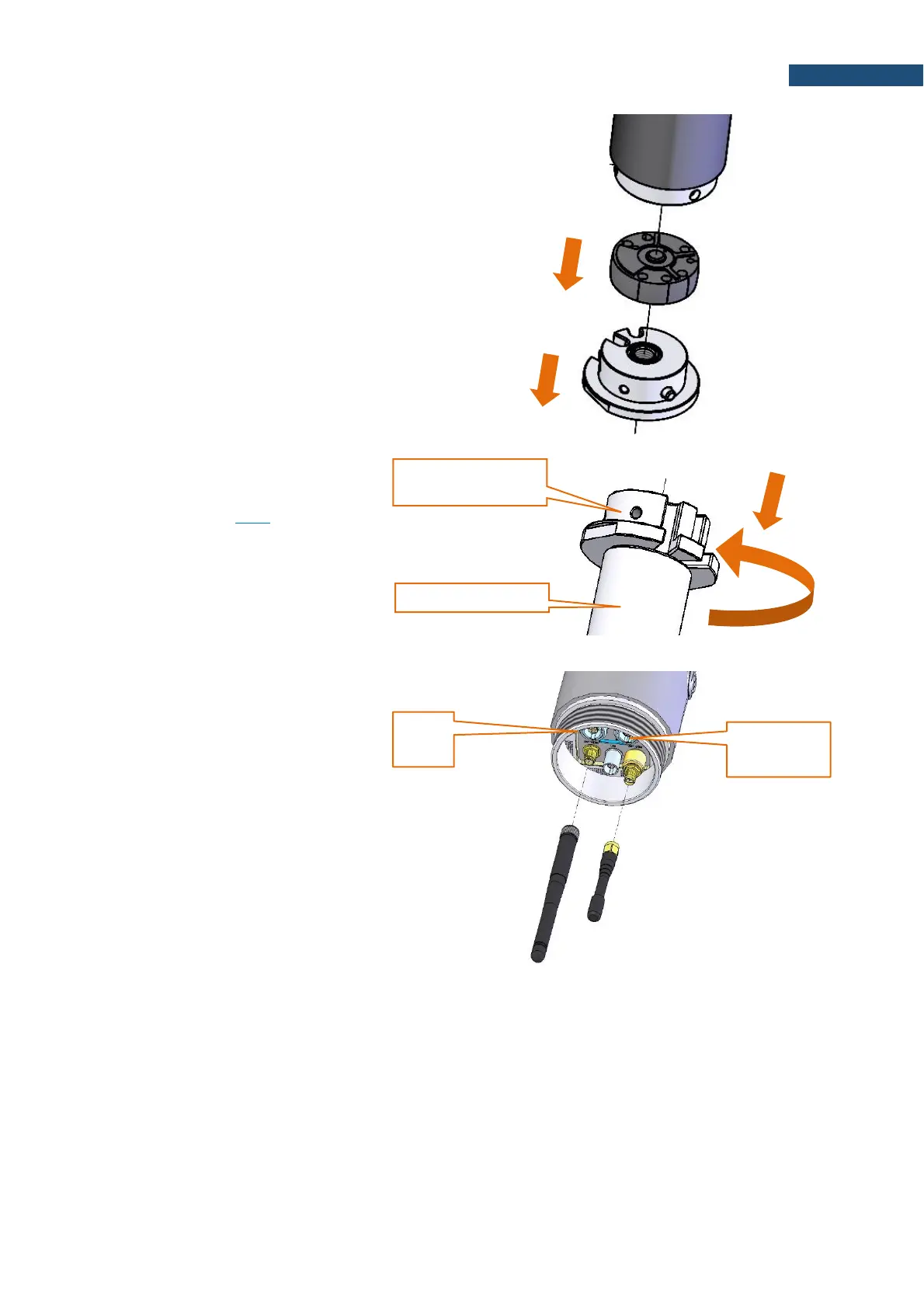

base of the
mounting sleeve
tip of the mast
DC IN
socket
MULTI I/O
socket
