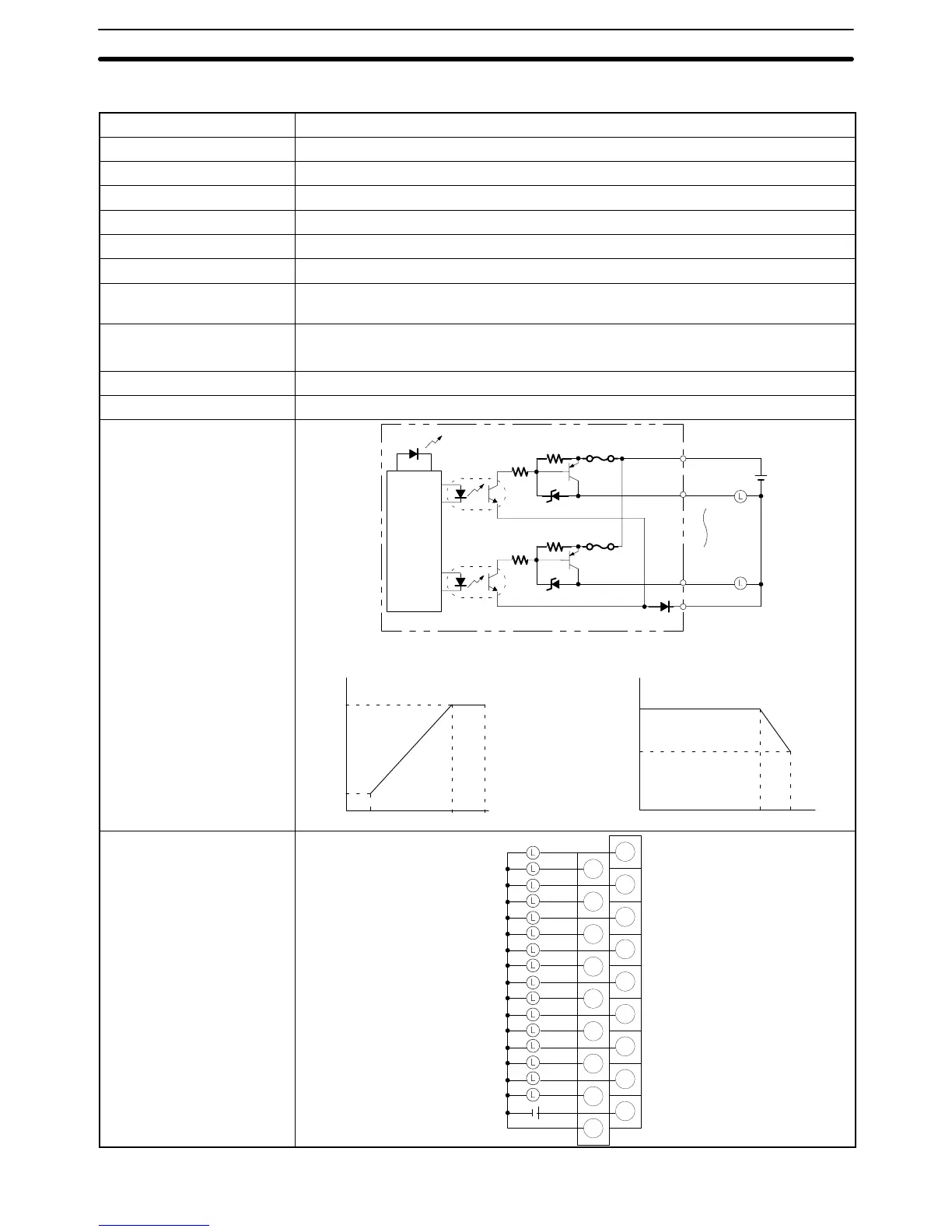

16-point Transistor PNP Output Unit
Item CQM1-OD214
Max. Switching Capacity 50 mA at 4.5 VDC to 300 mA at 26.4 V (see diagram below)
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Delay 0.1 ms max.
OFF Delay 0.4 ms max.
No. of Outputs 16 points (16 points/common, 1 circuit)
Internal Current
Consumption
170 mA max. at 5 VDC
Fuse 3.5 A (one per common), two only used.
Fuse is not user replaceable.
Service Power Supply 60 mA min. at 5 to 24 VDC ±10% (3.5 mA number of ON points)
Weight 210 grams max.
Circuit Configuration
4.5 20.4 26.4 0 39 55
300
50
5.0
4.8
3.6
Max. Switch Capacity (per Point)
+V (V)
Ic max. (mA)
Max. Switch Capacity (Total for Unit)
(_C)
Ic max. (A)
+V
OUT0
Output
LED
Internal
Circuits
COM
OUT15
4.5
to
26.4
VDC
(+)
(–)
Fuse
3.5 A
0 V
Fuse
3.5 A
Terminal Connections
–
B0
0
1
A0
B1
2
3
A1
B2
4
5
A2
B3
6
7
B4
8
9
A4
B5
10
11
A5
B6
12
13
A6
B7
14
15
A7
B8
A8
A3
COM
+
0 V
Unit Specifications
Section 2-6
