Sysmac CQM1 User Manual

66

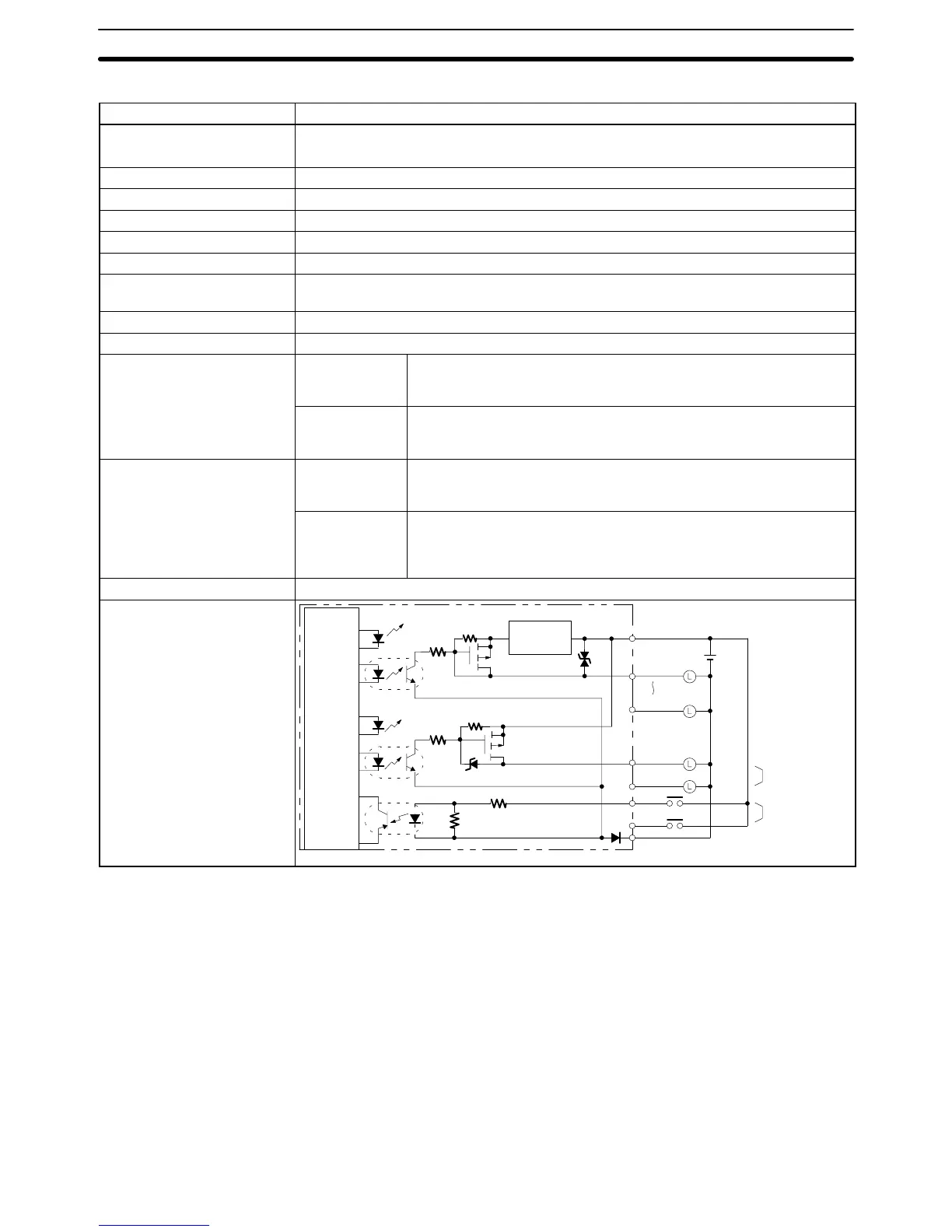

8-point Transistor Output Unit
Item CQM1-OD215
Max. Switching Capacity 1.0 A at 24 VDC
+10%
/
–15%
4 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 1.2 V max.
ON Delay 0.2 ms max.
OFF Delay 0.8 ms max.
No. of Outputs 8 points (8 points/common, 1 circuit)
Internal Current
Consumption
110 mA max. at 5 VDC max.
Service Power Supply 24 mA min. at 24 VDC
+10%
/
–15%
(3 mA  number of ON points)
Weight 240 grams max.
Alarm Output
No. of outputs 2 outputs
ALM0: Alarm output OUT 0 to 3
ALM1: Alarm output OUT 4 to 7
Output
specifications
Max. switching capacity: 100 mA at 24 VDC
+10%
/
–15%
Leakage current: 0.1 mA max.
Residual voltage: 0.7 V max.
Reset Input
No. of inputs 2 inputs
RST0: Reset input OUT 0 to 3
RST1: Reset input OUT 4 to 7
Input
specifications
Input voltage: 24 VDC
+10%
/
–15%
Input current: 7 mA, typical (24 VDC)
ON voltage: 16.0 VDC min.
OFF voltage: 5.0 VDC max.
Short-circuit Protection
(*1)
Detection current: 2 A (minimum value), 1.6 A (typical)
Circuit Configuration
+V
OUT0
Output
LED
Internal
Circuits
COM
OUT07
(+)
(–)
Alarm output
LED
Overcurrent
detection
circuit
560 Ω
3.3 kΩ
ALM0
ALM1
RST0
24 VDC
RST1
0V
Alarm output
Reset output
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
